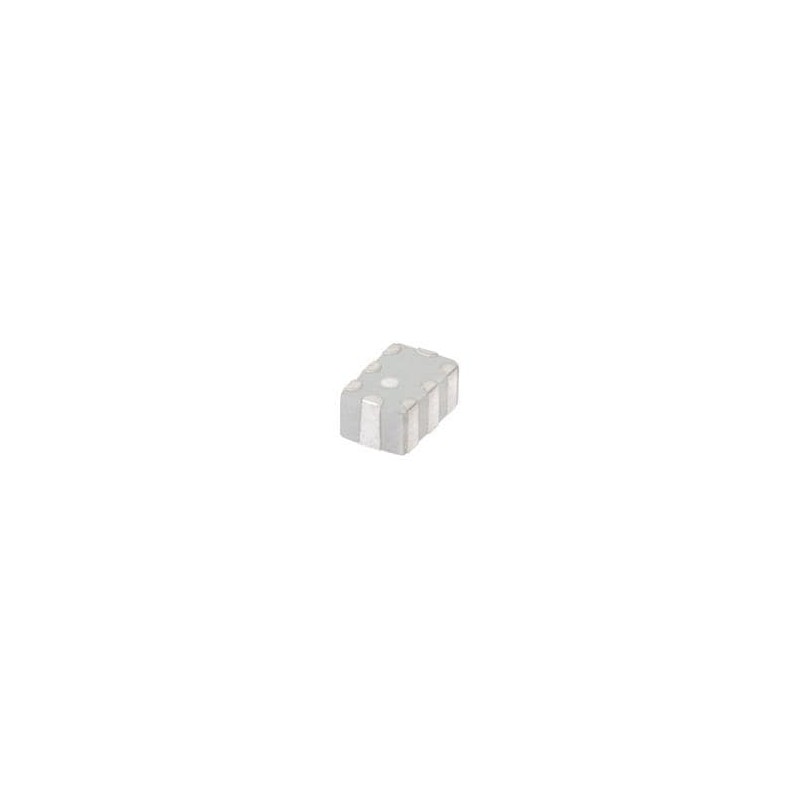

1 pcs : TPCG-183+ - Signal Conditioning LTCC SMT THRU-LINE DC - 18 GHz, 50?
    • 1 pcs : TPCG-183+ - Signal Conditioning LTCC SMT THRU-LINE DC - 18 GHz, 50?

    1 pcs : TPCG-183+ - Signal Conditioning LTCC SMT THRU-LINE DC - 18 GHz, 50?

    electronicparts-UK/M/139-TPCG-183+
    £11.72
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    TPCG Thru-Line LTCC Filter Mini-Circuits TPCG Thru-Line LTCC Filter offers a 0.5dB insertion loss, 10dB return loss, and a 0805 surface-mount footprint. The rugged monolithic construction allows for the low insertion loss rating over a wide frequency band of DC to 18GHz. The compact 0805 ceramic form factor features inspectable wrap-around terminations, ensuring the 50Ω transmission line is ideal for dense signal chain PCB layouts where it complements MMIC size and performance. Mini-Circuits TPCG Thru-Line LTCC Filter suits test and measurement equipment, satellite communications, 5G MIMO and backhaul radio systems, and more.
    Product Details
    electronicparts-UK/M/139-TPCG-183+
    TPCG-183+
    10 Items

    Data sheet

    Manufacturer
    Mini-Circuits
    Impedance
    50 Ohms
    Frequency
    DC to 18 GHz
    Series
    TPCG
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 55 C
    Type
    LTCC Filter
    Product Type
    Signal Conditioning
    Termination Style
    SMD/SMT
    Product Category
    Signal Conditioning
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Mini-Circuits
    Product
    Ceramic Filters
    Factory Pack Quantity Factory Pack Quantity
    500
    Subcategory
    Filters
