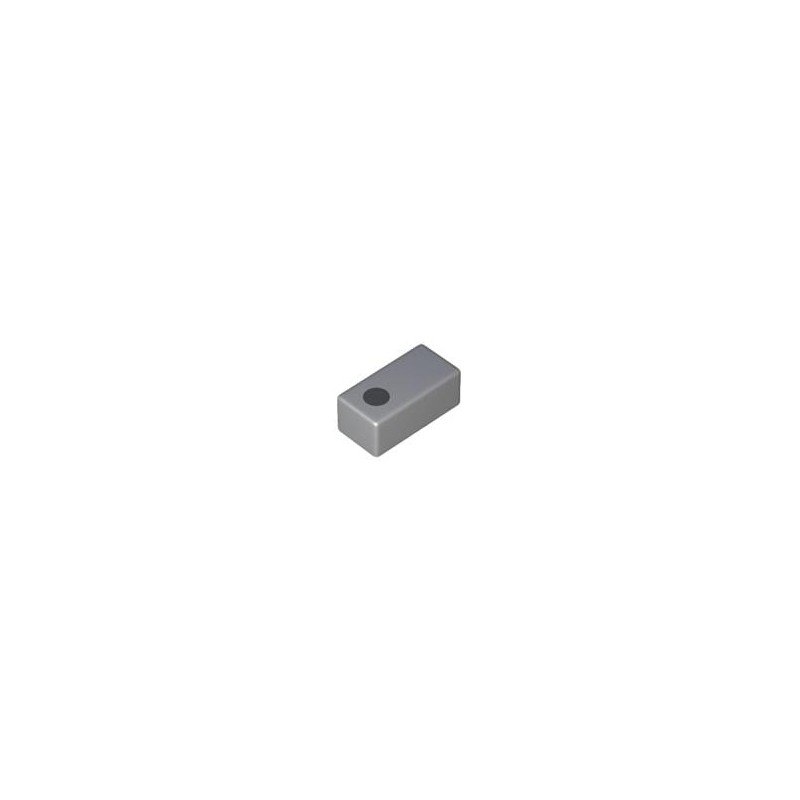

1 pcs : TSH1N18D2G49LS0FBT - Signal Conditioning 1.5dB 50Ohms Ceramic Filters
    • 1 pcs : TSH1N18D2G49LS0FBT - Signal Conditioning 1.5dB 50Ohms Ceramic Filters

    1 pcs : TSH1N18D2G49LS0FBT - Signal Conditioning 1.5dB 50Ohms Ceramic Filters

    electronicparts-UK/M/963-TSH1N18D2G49LS0F
    £11.54
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    TSH1 Multilayer Ceramic Device (High Pass Type) TAIYO YUDEN TSH1 Multilayer Ceramic Device (High Pass Type) provides low loss, high attenuation, and stable temperature characteristics in a compact and low-profile design. This high pass type module for LTE features a 2300MHz to 2690MHz passband frequency range with 1.5dB insertion loss at 2300MHz to 2690MHz and 35dB attenuation at 1710MHz to 1880MHz. TAIYO YUDEN TSH1 Multilayer Ceramic Device operates in a -40°C to +85°C temperature range and is suitable for reflow soldering. The package is RoHS and REACH compliant and has dimensions of 1.6mm x 0.8mm x 0.65mm. Applications include general electronic equipment, audio/visual (AV) equipment, office automation (OA) equipment, home appliances, and more.
    Product Details
    Taiyo Yuden
    electronicparts-UK/M/963-TSH1N18D2G49LS0F
    TSH1N18D2G49LS0FBT
    10 Items

    Data sheet

    Manufacturer
    Taiyo Yuden
    Impedance
    50 Ohms
    Bandwidth
    2.3 GHz to 2.69 GHz
    Series
    TSH1
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Type
    Multilayer Ceramic Device
    Product Type
    Signal Conditioning
    Termination Style
    SMD/SMT
    Product Category
    Signal Conditioning
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    TAIYO YUDEN
    Product
    Ceramic Filters
    Factory Pack Quantity Factory Pack Quantity
    5000
    Subcategory
    Filters
    Part # Aliases
    FI168H2495FB-T
