Rear drive shaft cross member can am outlander renegade 800 1000

Rear drive shaft cross-brace Can-am outlander renegade 800 100019-1006-XATV19-1017-XATVmodel UJ108

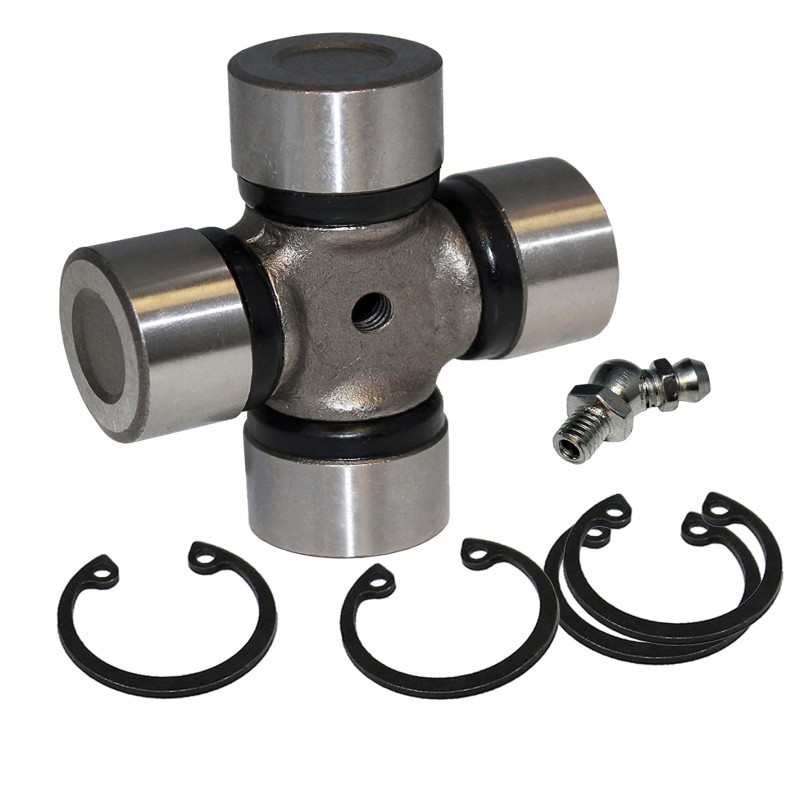

The cross-braces are made of durable, hardened steel, additionally reinforced in the bearing working areas. They are factory sealed and lubricated with a special anti-corrosion grease. Thanks to the seals used, they are resistant to water, mud and other dirt. The set includes protection and a strap.

replacement for the original number 703000022, 715900326, 705500304, 715500371, 715900186

replacement for all balls number 19-1006 and 19-1017

cup diameter 25 mm, length 65 mm

Application:

Cross rear shaft from the side differential (item 5 on the diagram)

Can-Am Commander 1000 11-13

Can-Am Commander 800 11-13

Can-Am Outlander 1000 13

Can-Am Outlander 1000 XMR 13

Can-Am Outlander 500 07-13

Can-Am Outlander 500 Power Steering 10-12

Can-Am Outlander 650 06-13

Can-Am Outlander 650 Power Steering 10-12

Can-Am Outlander 800 06-13

Can -Am Outlander 800 Power Steering 10-11

Can-Am Outlander 800 Power Steering-MAX 12

Can-Am Outlander 800 XMR 11

Can-Am Outlander 800 Xmr-MAX 12

Can-Am Outlander STD XT 1000 12

Can-Am Outlander STD 13

Can-Am Renegade 800 Power Steering 10-11

Rear shaft cross on the engine side (no. 4 on the diagram)

Can-Am Commander 1000 11-13

Can-Am Commander 800 11-13

Can- Am Outlander 1000 13

Can-Am Outlander 1000 Outlander 650 Power Steering 10-12

Can-Am Outlander 800 06-13

Can-Am Outlander 800 Power Steering 10-11

Can-Am Outlander 800 Power Steering-MAX 12

Can-Am Outlander 800 XMR 11

Can-Am Outlander 800 13

Can-Am Renegade 500 08-13

Can-Am Renegade 500 Power Steering 12

Can-Am Renegade 800 07-13

Can-Am Renegade 800 Power Steering 10-11

Can-Am Traxter 650 04-05
