Universal joint suzuki quadrunner 250 500

Universal joint Suzuki Kingquad 450 500 700 750 Catalog number: WE100270

Manufacturer: EPI

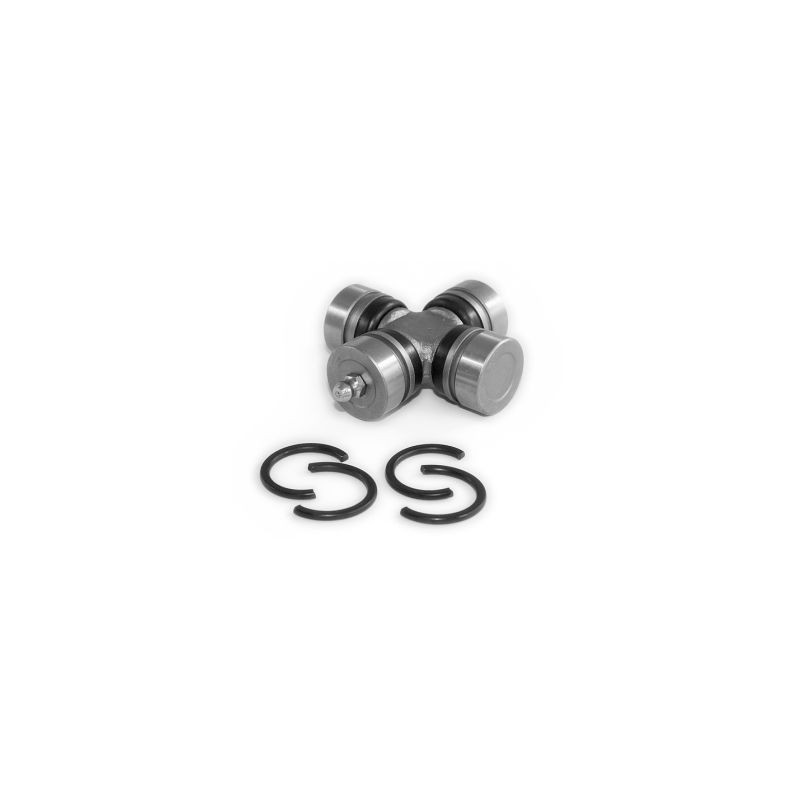

The universal joint includes clasps and a lubrication pad.

Vehicles may have more than one size of the universal joint:

- verify the dimensions and location of the universal joint (in the photo with the diagram ) defining the front or rear, closer to the engine or differential!!!

dimensions of the cross:

diameter of the glass 25.04 mm

total width of the cross 63.78 mm

internal width between the clips 40.21 mm

half-moon clip

Suzuki

250 Quad Runner 4x4 1994-00 location in photo 6

250 Quad Runner 4x4 1988-93 location in photo 6

250 Quad Runner 4x4 1987 location in photo 6

300 King Quad 4x4 1996-00 location in photo 6

300 Quad Runner 4x4 1995 location in photo 6

300 Quad Runner 4x4 1994 location in photo 6

450 King Quad 4x4 2008-10 location in photo 5

500 King Quad 4x4 2009-14 location in photo 5

500 Quad Master 4x4 2001 location in the photo 5.7

500 Quad Master 4x4 2000 location in the photo 2.5

500 Quad Runner 4x4 1998-00 location in the photo 5

500 Vinson 4x4 2002-07 location in the photo 5

700 King Quad 4x4 2005-07 location in photo 5

750 King Quad 4x4 2008-14 location in photo 5

FITS MODELS:LT-F250 Quadrunner 4x4 - 2000 - Universal Joint

LT-F300 KingQuad 4x4 - 1999 - Universal Joint

LT -F300 KingQuad 4x4 - 2000 - U-joint

LT-F4W KingQuad - 1996 - U-joint

LT-F4W KingQuad - 1997 - U-joint

LT-F4W KingQuad - 1998 - U-joint

LT-A450 KingQuad - 2008 - U-joint

LT-A450 KingQuad - 2009 - U-joint

LT-A450 KingQuad - 2010 - U-joint

LT-A500 KingQuad Axi - 2014 - U-joint

LT-A500 Vinson AT - 2002 - U-joint

LT-A500 Vinson AT - 2003 - Universal Joint

LT-A500 Vinson AT - 2004 - Universal Joint

LT-A500 Vinson AT - 2005 - Universal Joint

LT-A500 Vinson AT - 2006 - Universal Joint

LT-A500 Vinson AT - 2007 - Universal Joint

LT-A500 Vinson AT LE - 2004 - U-joint

LT-A500X KingQuad 500 - 2011 - U-joint

LT-A500X KingQuad 500 - 2012 - U-joint

LT-A500X KingQuad 500 - 2013 - U-joint

LT-A500XP KingQuad 500 PS - 200 9 - U-joint

LT-A500XP KingQuad 500 PS - 2011 - U-joint

LT-A500XP KingQuad 500 PS - 2012 - U-joint

LT-A500XP KingQuad AXi PS - 2014 - U-joint

LT-F500 Quadrunner - 1998 - U-joint

LT-F500 Quadrunner - 1999 - U-joint

LT-F500 Quadrunner - 2000 - U-joint

LT-F500 Vinson MT - 2004 - U-joint

LT-F500 Vinson MT - 2005 - U-joint

LT-F500 Vinson MT - 2006 - Universal Joint

LT-F500 Vinson MT - 2007 - Universal Joint

LT-A700 KingQuad - 2005 - Universal Joint

LT-A700 KingQuad - 2006 - Universal Joint

LT-A700 KingQuad - 2007 - Universal Joint

LT-A750 KingQuad - 2011 - U-joint

LT-A750 KingQuad - 2012 - U-joint

LT-A750 KingQuad - 2013 - U-joint

LT-A750 KingQuad - 2014 - U-joint

LT-A750 KingQuad LE - 2014 - U-joint

LT-A750 KingQuad PS - 2014 - Universal Joint

LT-A750 KingQuad PS LE - 2014 - Universal Joint

LT-A750X KingQuad - 2008 - Universal Joint

LT-A750X KingQuad - 2009 - Universal Joint

LT-A750X KingQuad LTD - 2009 - Universal Joint

LT -A750XP KingQuad PS - 2009 - Universal Joint

LT-A750XP KingQuad PS - 2011 - Universal Joint

LT-A750XP KingQuad PS - 2012 - Universal Joint

LT-A750XP KingQuad PS - 2013 - Universal Joint
