Universal joint polaris rzr 570 rzr 800 rzr 900 rzr 1000

Polaris 250-1000 cross-joint Catalog number: WE100338

Manufacturer: EPI

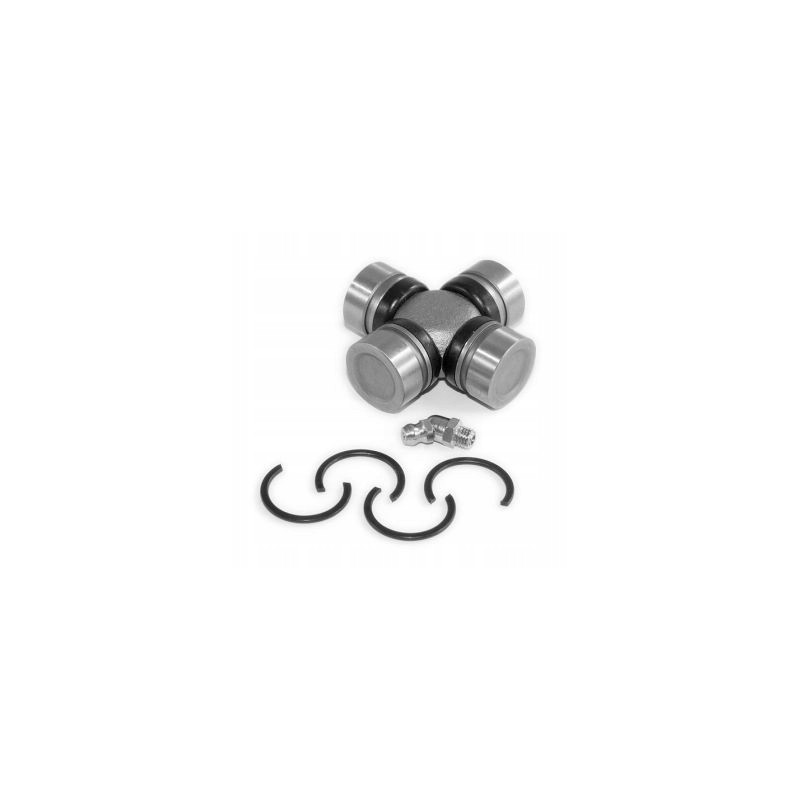

The cross-joint includes clasps and a lubrication pad

ATTENTION!

Vehicles may have more than one size of the cross:

- verify the dimensions and location of the cross (in the photo with the diagram ) defining the front or rear, closer to the engine or differential!!!

dimensions of the cross:

diameter of the glass 23.87 mm

total width of the cross 58.95 mm

internal width between the clips 35.83 mm

half-moon clip

POLARIS

250 4x4 1990/93 location in diagram 1

250 6x6 1993 location in diagram 1

250 Big Boss 6x6 1991-92 location in diagram 1

250 Trail Boss 4x4 1987-92 location in diagram 1

250 Xplorer 4x4 2000-02 location on the diagram 1,2,4

300 4x4 1994/96 location on the diagram 1

300 6x6 1994 location on the diagram 1

300 Sportsman 4x4 2008-10 location on the diagram 2,4

325 Magnum 2x4 2000-02 location on the diagram 5

325 Magnum 4x4 exc. HDS (Visco-Loc) 2001-02 location on diagram 2,4,5

325 Magnum 4x4 HDS (Visco-Loc) 2001-02 location on diagram 5

325 Magnum 4x4 2000 location on diagram 2,4,5

325 Ranger ETX 15-16 location on the diagram 2.4

325 Sportsman ACE EFI 4x4 2014-16 location on the diagram 2.4

325 Sportsman ACE HD 4x4 2015 location on the diagram 2.4

325 Sportsman ETX 15 location in the diagram 2,4

325 Magnum 4x4 2005-06 location on the diagram 2.4

330 Magnum 4x4 exc. HDS (Visco-Loc) 2003-04 location in diagram 1,2,4

330 Magnum 4x4 HDS (Visco-Loc) 2003-04 location in diagram 2,4

335 Sportsman 4x4 1999-00 location in diagram 2, 4

335 Worker 4x4 1999 location on diagram 2.4

350L 4x4 1990/93 location on diagram 1

350L 6x6 1993 location on diagram 1

350L Trail Boss 4x4 1990-92 location on diagram 1

400 4x4 1994 diagram location 1

400 6x6 w/inside lock rings 1995 diagram location 1

400 6x6 1994 diagram location 1

400 Ranger 4x4 2010-14 diagram location 2.4

400 Ranger Mid-Size 4x4 2013 diagram location 2.4

400 Scrambler 4x4 1998-02 diagram location 2.4

400 Scrambler 4x4 front axle w/inside lock rings 1998-02 diagram location 1

400 Scrambler 4x4 w/inside lock rings 1995-97 location in diagram 1

400 Sportsman 4x4 2005 location in diagram 2,4

400 Sportsman 4x4 2002-04 location in diagram 1,2,4

400 Sportsman 4x4 2001 location in diagram 2,4

400 Sportsman 4x4 w/inside lock rings 1995-96 location in diagram 1

400 Sportsman 4x4 1993-94 location in diagram 1

400 Sportsman HO 4x4 2008-14 location in diagram 2.4

400 Xplorer 4x4 1999-02 location on diagram 1,2,4

400 Xplorer 4x4 w/inside lock rings 1995-96 location on diagram 1

425 Magnum 4x4 w/inside lock rings 1995-96 location on diagram 1

425 Magnum 6x6 w/inside lock rings 1996 location in diagram 1

425 Xpedition 4x4 2002 location in diagram 1,2,4,5

425 Xpedition 4x4 2000-01 location in diagram 2,4,5

450 Sportsman 4x4 2006-07 location in diagram 2 .4

450 Sportsman HO Std/EPS/Utility 17-20 diagram location 2.4

455 Diesel 4x4 prop shaft (from 12/07/00) 2001 diagram location 2.4

455 Diesel 4x4 prop shaft (from 12/07/00) 2001 front axle w/inside lock rings location in diagram 1

455 Diesel 4x4 1999 location in diagram 2.4

500 ACE 15-19 location in diagram 2.4

500 ATP 4x4 2005 location on the diagram 2,4

500 ATP 4x4 2004 location on the diagram 1,2,4

500 Magnum 4x4 2003 location on the diagram 2,4

500 Magnum 4x4 exc. HDS (Visco-Loc) 2001-02 location on the diagram 2,4,5

500 Magnum 4x4 HDS (Visco-Loc) 2002 location on the diagram 2,4,5

500 Magnum 4x4 HDS (Visco-Loc) 2001 location on the diagram 5

500 Magnum 4x4 1999-00 location on the diagram 2.4

500 Ranger 2019-21 location on the diagram 2.4

500 Ranger 2x4 2004-09 location on the diagram 5.7

500 Ranger 4x4 2005 -09 location on the diagram 2,4,5,7

500 Ranger 6x6 2004-05 location on the diagram 2,4,7,10,11

500 Ranger Crew 4x4 2013 location on the diagram 2,3,4

500 Ranger Crew Mid-Size 4x4 2013 location in the diagram 2,3,4

500 Ranger EFI 4x4 2011-13 location in the diagram 2,4

500 Ranger HO 4x4 2010 location in the diagram 2,4

500 Ranger Mid-Size 4x4 2013 location in the diagram 2,4

500 Scrambler 4x4 2010 location in the diagram 2,4

500 Scrambler 4x4 1998 location in the diagram 1

500 Sportsman EFI 4x4 2006-09 location in the diagram 2,4,5,7

500 Sportsman EFI Touring 4x4 2008-09 location in the diagram 2.4

500 Sportsman HO 4x4 2008-13 location in the diagram 2.4

500 Sportsman HO 4x4 2005-06 location in the diagram 2.4

500 Sportsman HO 4x4 2004 location in diagram 1

500 Sportsman HO 4x4 prop shaft w/inside lock rings 2004 location in diagram 2.4

500 Sportsman HO 4x4 2002-03 location in diagram 2.4

500 Sportsman HO 4x4 2001 location in diagram 2.4

500 Sportsman HO Touring 4x4 2010-13 location in the diagram 2.4

500 Sportsman 4x4 1999-01 location in the diagram 2.4

500 Sportsman 4x4 1998 location in the diagram 2.4

500 Sportsman 4x4 1997 location in the diagram 1,2,4

500 Sportsman 4x4 1996 location in the diagram 2,4

500 Sportsman 4x4 front axle w/inside lock rings 1996 location in the diagram 1

500 Sportsman 6x6 2002-08 location in the diagram 1,2,4

500 Sportsman 6x6 1999-01 location in the diagram 2,4

500 Sportsman X2 4x4 2006-09 location in the diagram 2,4

500 Xplorer 4x4 1997 location in the diagram 1,2,4

550 Sportsman 4x4 (built 11/22/10 and before) 2011 location on the diagram 2,4

550 Sportsman XP 4x4 2009-10 location on the diagram 2,4,5,7

550 Sportsman Std/EPS 4x4 12-14 location in the diagram 5.7

550 Sportsman EPS 4x4 (built 11/22/10 and before) 2011 location in the diagram 2.4

550 Sportsman Touring 14 location in the diagram 5.7

550 Sportsman Touring EPS 4x4 (built 11/22/10 and before) 2011 location in the diagram 2.4

550 Sportsman Touring EPS 4x4 2010 location in the diagram 2.4

550 Sportsman X2 14 location in the diagram 5.7

550 Sportsman X2 4x4 (built 11 /22/10 and before) 2011 location on diagram 2.4

550 Sportsman X2 4x4 2010 location on diagram 2.4

570 ACE 15-19 location on diagram 2.4

570 ACE SP 15-17 location on diagram 2,4

570 Ranger Crew EFI Mid-Size Std/EPS/LE/Premium 15-21 location on diagram 2,3,4

570 Ranger Crew 4x4 2014 location on diagram 2,3,4

570 Ranger Crew Full-Size Std/EPS 15-23 location in diagram 2,3,4

570 Ranger Mid-Size 4x4 2014-21 location in diagram 2,4

570 Ranger Mid-Size Premium 21 location in diagram 2,4

570 Ranger EFI 4x4 2014 location in diagram 2.4

570 Ranger Full-Size Std/EPS 15-23 location in diagram 2.4

570-6 Ranger Crew 18 location in diagram 4

570-6 Ranger Crew XP Full Size Std/EPS 16-17 location on diagram 2,3,4

570 Ranger XP Full Size Std/EPS 16 location on diagram 2,4

570 RZR 4x4 Std/EPS/LE 12-17 location on diagram 2.4

570 RZR S (60”) 17 diagram location 2.4

570 RZR Trail 2022 diagram location 2.4

570 RZR Trail w/EPS 15-17 diagram location 2.4

570 Sportsman Std/EPS 14-20 location in diagram 2.4

570 Sportsman Hunter Edition 2020 location in diagram 2.4

570 Sportsman Premium Edition 2020 location in diagram 2.4

570 Sportsman SP w/EPS 15 -19 location in the diagram 2.4

570 Sportsman Touring Std/EPS 14-23 location in the diagram 2.4

570 Sportsman Touring Premium 2020-23 location in the diagram 2.4

570 Sportsman Touring SP 15-19 location in diagram 2.4

570 Sportsman Utility Ed 18-19 location in diagram 2.4

570 Sportsman X2 w/EPS 15-21 location in diagram 2.4

570 Sportsman 6x6 18-21 location in diagram 2, 4

570 Sportsman 6x6 17 location in the diagram 2,4

570 Sportsman 6x6 17 location in the diagram 5,7

600 Sportsman 4x4 2005 location in the diagram 2,4,5,7

600 Sportsman 4x4 2003-04 location in the diagram 1,2,4,5,7

700 Ranger EFI 6x6 2006-09 location in the diagram 4,5,7,10,11

700 Ranger XP 4x4 2005-09 location in the diagram 5,7

700 Sportsman EFI 4x4 2005-07 location in diagram 2,4,5,7

700 Sportsman EFI 4x4 2004 location in diagram 1,2,4,5,7

700 Sportsman 4x4 2005-06 location in diagram 2,4, 5,7

700 Sportsman 4x4 2002-04 location in the diagram 1,2,4,5,7

700 Sportsman MV7 4x4 2005 location in the diagram 2,4,5,7

800 Ranger Crew 4x4 2010-13 location in the diagram 2,3,4

800 Ranger EFI 4x4 2013 location in the diagram 2,4

800 Ranger EFI Mid-Size 4x4 2013-14 location in the diagram 2,4

800 Ranger XP 4x4 2010-14 location in the diagram 2.4

800 Ranger 6x6 2010-17 location in diagram 2,4,5,7

800 RZR 2008-14 location in diagram 2.4

800 RZR 4 2011-14 location in diagram 2,3,4

800 RZR S 2008-14 location on the diagram 2.4

800 RZR XC (55') 14 location on the diagram 2.4

800 Sportsman EFI 4x4 2011-13 location on the diagram 2.4

800 Sportsman EFI 4x4 2005-10 location in the diagram 2,4,5,7

800 Sportsman EFI 6x6 2009-13 location in the diagram 2,4,5,7

800 Sportsman EFI Touring 4x4 2008-09 location in the diagram 2,4

800 Sportsman X2 4x4 2007-09 location on the diagram 2.4

850 Scrambler 4x4 2014-16 location on the diagram 5.7

850 Scrambler HO 4x4 2013 location on the diagram 5.7

850 Scrambler HO EPS 4x4 2013 location on the diagram 5,7

850 Sportsman 2015-17 location on the diagram 5,7

850 Sportsman High Lifter Edition 4x4 2016-17 location on the diagram 2,4,5,7

850 Sportsman SP 4x4 2015-17 location on diagram 5.7

850 Sportsman Touring EPS 4x4 (built 11/22/10 and before) 2011 location in the diagram 2.4

850 Sportsman Touring EPS 4x4 2010 location in the diagram 2.4

850 Sportsman Touring Std/LE 14 location in the diagram 5.7

850 Sportsman Touring SP 2015-17 location in the diagram 5.7

850 Sportsman XP 4x4 2010-14 location in the diagram 5.7

850 Sportsman XP EPS 4x4 2010-12 location in the diagram 5.7

900 ACE SP 2016 location on the diagram 2.4

900 ACE XC 2017-19 location on the diagram 2.4

900 Ranger Crew 4x4 (all options) 2014-19 location on the diagram 2,3,4

900 Ranger Diesel 4x4 2011-13 location on the diagram 2,3,4,5,7

900 Ranger Diesel Crew 4x4 2011-13 location on the diagram 2,3,4,5,7

900 Ranger XP 4x4 2013 -16 location on diagram 2,4

900 RZR 50/55” 4x4 (all options) 2015-20 location on diagram 2,3,4

900 RZR 60” 4x4 (all options) 2015-20 location on diagram 2 ,3,4

900 RZR XP 4 2012-14 location in diagram 2,3,4

900 RZR 3,4

900 RZR Trail Premium (50') 2021-2022 location in the diagram 2,3,4

900 RZR Trail Sport (50') 2021-2022 location in the diagram 2,3,4

900 RZR Trail Ultimate (50') 2021-2022 location in diagram 2,3,4

900 RZR Trail S Sport (60') 2021-2022 location in diagram 2,3,4

1000 General 4x4 (all options) 2016-20 location in diagram 2,3,4

1000 General 4 (all options) 2020 location in diagram 2,3,4

1000 Ranger Crew 61hp Std / EPS / Premium 2020-2023 location in diagram 2,3

1000 Ranger Crew XP (all options) 2019 location in diagram 3

1000 Ranger Crew XP Std/EPS 17-18 location in diagram 2,3,4

1000 Ranger Crew XP High Lifter Ed 17 location in diagram 2,3,4

1000 Ranger Crew XP Northstar HVAC Ed 17-18 location in diagram 2,3,4

1000 Ranger Diesel 4x4 2016 location in diagram 2,4

1000 Ranger Diesel Crew 4x4 2015-18 location in diagram 2,3,4

1000 RZR S 60” 4x4 (all options) 2016-20 location on diagram 2,3,4

1000 RZR S Trail Premium 2022-2023 location on diagram 2,3,4

1000 RZR S Trail Ultimate 2022- 2023 location in diagram 2,3,4

1000 RZR S 4 2019-20 location in diagram 2,3,4

1000 RZR XP (all options) 2021-2023 location in diagram 4

1000 RZR XP (all options ) 2020 location in diagram 2,3,4

1000 RZR XP (all options) 2019 location in diagram 2

1000 RZR XP (all options) 2018 location in diagram 4

1000 RZR XP 4x4 (all options) 2015- 17 location in the diagram 2,3,4

1000 RZR XP High Lifter Ed 2016-17 location in the diagram 2,3,4

1000 RZR XP 4 (all options) 2020-22 location in the diagram 2,3,4

1000 Scrambler 4x4 2014-17 diagram location 5.7

1000 Sportsman Touring 4x4 2015-17 diagram location 5.7

1000 Sportsman XP 4x4 2015-17 diagram location 5.7

1000 Sportsman XP High Lifter Edition 4x4 2016-17 location in diagram 2,4,5,7

Brutus HD 2014-16 location in diagram 2,4

Ranger 6x6 1999 location in diagram 1,2,4,7

Ranger Diesel 2014-15 location in the diagram 5.7

Ranger Diesel Crew 2014 location in the diagram 5.7

Ranger Diesel HST/HST Deluxe 4x4 2014 location in the diagram 2.4

Ranger ETX 4x4 2015-16 location in the diagram 2.4

Ranger EV 4x4 2010-21 location on diagram 2.4

Ranger EV LI-ION 2016-18 location on diagram 2.4

Ranger EV LSV 4x4 2011-12 location on diagram 2.4

Ranger HST 4x4 2015 location on the diagram 2.4

Ranger TM 2x4 2004-06 location on the diagram 5.7

RZR Pro XP Std / Premium / Ultimate 2020 location on the diagram 2.3

RZR Pro XP 4 Std / Premium / Ultimate 2020 location on diagram 2,3A,3B

RZR XP Turbo 2021 location in diagram 4

RZR XP Turbo 2020 location in diagram 2,3,4

RZR XP Turbo Std/Fox/Dynamix Ed 18-19 location in diagram 4

RZR XP Turbo 2016-17 location in diagram 2

RZR XP Turbo 4 2021 location in diagram 4

RZR XP Turbo 4 2020 location in diagram 3

RZR XP Turbo 4 Std / LE 2019 location in diagram 4

RZR XP Turbo 4 Std / Fox / Dynamix Ed / LE 2018 location in diagram 4

RZR XP Turbo 4 2016-17 location in diagram 2
