Universal joint can am outlander 650 800 800r

Rear cross-joint Can Am Catalog number: RP2306

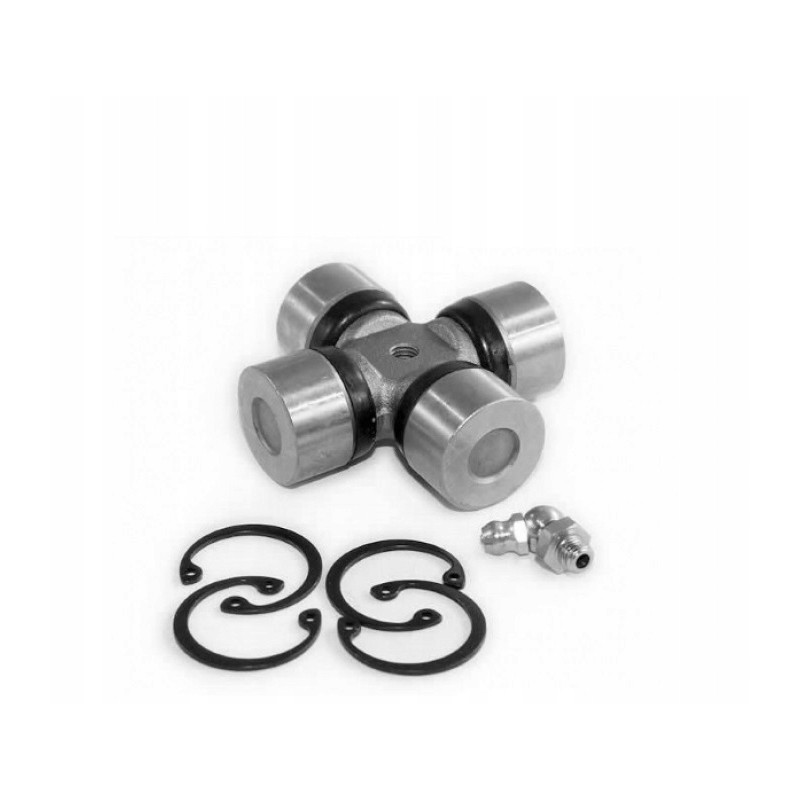

Cross-joint, includes clasps and a lubrication nipple

Please pay attention to the diagram in photo number 2!

Cross-joint includes clasps and a lubrication nipple.

cross-joint dimensions:

glass diameter 25.04 mm

total width of the cross 64.76 mm

clip - external protection

EPI WE100997

replacement Ride Pro RP2306 (Can Am)

replacement CFMOTO 7020-290130-10000

replacement All Balls 19-1006

In vehicles it may there is more than one size of the cross:

- verify the dimensions and location of the cross (in the photo with the diagram) determining the front or rear, closer to the engine or differential !!!

CAN AM

450 Outlander 2015-21 location in the photo 5.7

450 Outlander Max Std/DPS 2017-21 location in the photo 5.7

450 Outlander Max L Std/DPS 2015-16 location in the photo 5.7

450 Outlander 6x6 2021 location in the photo 5.7

450 Outlander 6x6 2021 location in the photo 5,7,10,11

450 Outlander 6x6 2020 location in the photo 5,7,10,11

500 Outlander 4x4 2007-15 location in the photo 5,7

500 Outlander Max Std/ DPS/XT 13-15 location in the photo 5.7

500 Outlander L Std/DPS 15 location in the photo 5.7

500 Outlander Max L Std/DPS 15 location in the photo 5.7

500 Renegade 4x4 2008- 15 location in the photo 5.7

570 Outlander Std/DPS/XT/Hunting Ed 16-21 location in the photo 5.7

570 Outlander L Std/DPS/Hunter Ed/LE 16 location in the photo 5.7

570 Outlander Max Std/DPS/XT 16-21 location in the photo 5.7

570 Outlander Max L Std/DPS 16 location in the photo 5.7

570 Outlander XMR 17-21 location in the photo 5.7

570 Outlander XMR 16 location in the photo 5.7

570 Renegade 2016-21 location in the photo 5.7

570 Renegade XMR 17-21 location in the photo 5.7

650 Outlander 4x4 Std/DPS/XT/North/Mossy Oak 13-21 location in the photo 5.7

650 Outlander 4x4 2006-12 location in the photo 5.7

650 Outlander Max DPS/XT/North Ed 13-21 location in the photo 5.7

650 Outlander XMR 13 -21 location in the photo 5.7

650 Outlander 6x6 15-20 location in the photo 5,7,10,11

650 Quest 4x4 2002-04 location in the photo 5.7

800 Commander Std/DPS/XT 17 -20 location in photo 5.7

800 Commander Std/DPS/XT 16 location in photo 5

800 Commander 4x4 Std/DPS/XT 11-15 location in photo 5

800 Commander Max DPS 17-20 location in in the photo 5.7

800 Outlander 4x4 Std/DPS/XT/XT-P 12-15 location in the photo 5.7

800 Outlander 4x4 2006-11 location in the photo 5.7

800 Outlander XMR 15 location in the photo 5.7

800 Renegade 4x4 Std/ 16-21 location in the photo 5.7

850 Outlander Max XT/XT-P/North Ed 16-21 location in the photo 5.7

850 Outlander XMR 16-21 location in the photo 5.7

850 Renegade Std /Xxc 16-21 location in the photo 5.7

1000 Commander DPS/Hunter ed/Ltd/XT/XT-P 17-20 location in the photo 5.7

1000 Commander DPS/Hunter ed/Ltd/XT/XT -P 16 location in photo 5.7

1000 Commander Std/DPS/LTD/XT/XT-P 13-15 location in photo 5.7

1000 Commander Max DPS/XT/Ltd 17-20 location in photo 5 .7

1000 Commander Max DPS/XT 16 location in the photo 5.7

1000 Commander Max Std/DPS/XT 14-15 location in the photo 5.7

1000 Maverick DPS 2016-18 location in the photo 5.7

1000 Maverick Std 2013-16 location in the photo 5.7

1000 Maverick Turbo 2017 location in the photo 5.7

1000 Maverick XC Std/DPS 16-18 location in the photo 5.7

1000 Maverick XDS (Non Turbo) 2016 location in the photo 5.7

1000 Maverick XDS Turbo 2016 location in the photo 5.7

1000 Maverick XMR 2014-18 location in the photo 5.7

1000 Maverick XRS/XRS DPS 2013-15 location in the photo 5.7

1000 Maverick XRS Turbo 2016 location in the photo 5.7

1000 Maverick Xxc DPS 2014-18 location in the photo 5.7

1000 Maverick Max Std 2014-18 location in the photo 5.7

1000 Maverick Max Turbo Std/XDS/XRS 2017 location in the photo 5.7

1000 Maverick Max XDS (Non Turbo) 2016 location in the photo 5.7

1000 Maverick Max XDS Turbo 2016 location in the photo 5.7

1000 Maverick Max XMR 2017-18 location in the photo 5.7

1000 Maverick Max XRS Turbo 2016 location in the photo 5.7

1000 Maverick Max XRS DPS 2014-15 location in the photo 5.7

1000 Outlander 4x4 Std/DPS/XT /XT-P/Hunting Ed 12-21 location in the photo 5.7

1000 Outlander XMR 13-21 location in the photo 5.7

1000 Outlander Xxc 18-21 location in the photo 5.7

1000 Outlander Max XT /XT-P/Ltd/DPS 12-21 location in the photo 5.7

1000 Outlander 6x6 18-19 location in the photo 5.7

1000 Outlander 6x6 2018 location in the photo 10.11

1000 Outlander 6x6 15- 16 location in the photo 5.7

1000 Renegade 4x4 Std 12-19 location in the photo 5.7

1000 Renegade XMR 16-21 location in the photo 5.7

1000 Renegade Xxc 13-21 location in the photo 5.7

Commander E Std/XT 2015 location in photo 5.7

Maverick X3 Turbo (120hp) XDS / XMR / XRC 2021 location in photo 3

Maverick X3 Turbo Max (120hp) XDS 2021 location in photo 3

Maverick X3 Turbo R (172hp) XDS / XRS 2021 location in photo 3

Maverick X3 Turbo R Max (172hp) XMR 2021 location in photo 3

Maverick X3 Turbo RR Max (195hp) Outlander 450 Max - 2015 - U-joint

Outlander 450 Rotax - 2017 - U-joint

Outlander 450 Rotax DPS - 2017 - U-joint

Outlander 450 Rotax Max - 2017 - U-joint

Outlander 450 Rotax Max DPS - 2017 - U-joint

Outlander 450 Rotax Pro - 2017 - U-joint

Outlander 450L PRO - 2016 - U-joint

Outlander 500 DPS - 2013 - U-joint

Outlander 500 Max DPS - 2013 - U-joint

Outlander 500 Max LTD - 2010 - U-joint

Outlander 500 Max STD - 2007 - U-joint

Outlander 500 Max STD - 2008 - U-joint

Outlander 500 Max STD - 2009 - U-joint

Outlander 500 Max STD - 2010 - U-joint

Outlander 500 Max STD - 2011 - U-joint

Outlander 500 Max STD - 2012 - U-joint

Outlander 500 Max STD - 2013 - U-joint

Outlander 500 Max XT - 2007 - U-joint

Outlander 500 Max XT - 2008 - U-joint

Outlander 500 Max Max XT - 2012 - U-joint

Outlander 500 Max 2010 - U-joint

Outlander 500 STD - 2011 - U-joint

Outlander 500 STD - 2012 - U-joint

Outlander 500 STD - 2013 - U-joint

Outlander 500 XT - 2007 - U-joint

Outlander 500 XT - 2008 - U-joint akowy

Outlander 500 XT - 2009 - U-joint

Outlander 500 XT - 2012 - U-joint

Outlander 500 cruciform gub

Renegade 500 - 2011 - U-joint

Renegade 500 - 2012 - U-joint

Renegade 500 - 2013 - U-joint

Outlander 570 DPS - 2016 - U-joint

Outlander 570 DPS ROTAX - 2017 - U-joint

Outlander 570 Hunter Edition RO TAX - 2017 - Universal Joint

Outlander 570 Max DPS - 2016 - Universal Joint

Outlander 570 Max DPS ROTAX - 2017 - Universal Joint

Outlander 570 Max PRO - 2016 - Universal Joint

Outlander 570 Max PRO EFI - 2017 - Universal Joint

Outlander 570 Max ROTAX - 2017 - U-joint

Outlander 570 Max XT - 2016 - U-joint

Outlander 570 Max TAX - 2017 - U-joint

Outlander 570 ROTAX - 2017 - U-joint

Outlander 570 XT - 2016 - U-joint

Outlander 570 XT ROTAX - 2017 - U-joint

Outlander 570 0L 5704X4 - 2016 - Joint Universal joint

Outlander 570L DPS - 2016 - Universal joint

Outlander 570L MOSSY OAK Hunter EDIT - 2016 - Universal joint

Outlander 570L Max DPS - 2016 - Universal joint

Outlander 570L Max STD - 2016 - Universal joint

Outlander 570L PRO - 2016 - Articulation Universal joint

Outlander 570L STD - 2016 - Universal joint

Outlander 570L Krzyżakowy gub

Renegade 570 Xxc - 2016 - U-joint

Renegade 570 - 2016 - Articulation Universal joint

Outlander 650 DPS EFI - 2017 - Universal joint

Outlander 650 EFI - 2017 - Universal joint

Outlander 650 Max - 2014 - Universal joint

Outlander 650 Max - 2015 - Universal joint

Outlander 650 Max DPS - 2013 - Universal joint

Outlander 650 Max DPS - 2014 - U-joint

Outlander 650 Max DPS - 2016 - U-joint

Outlander 650 Max DPS EFI - 2017 - U-joint

Outlander 650 Max PRO - 2016 - U-joint

Outlander 650 Max PRO EFI - 2017 - U-joint

Outlander 650 Max STD - 2013 - U-joint

Outlander 650 Max X - 2014 - U-joint

Outlander 650 Max XT - 2013 - U-joint

Outlander 650 Max Universal joint

Outlander 650 Max XTP - 2014 - Universal joint

Outlander 650 Max XTP - 2016 - Universal joint

Outlander 650 Max b Universal joint

Outlander 650 STD - 2013 - Universal joint

Outlander 650 STD - 2014 - Universal joint

Outlander 650 STD - 2016 - Universal joint

Outlander 650 XT - 2013 - Universal joint

Outlander 650 XT - 2014 - Universal joint

Outlander 650XT - 2016 - U-joint

Outlander 650 XT EFI - 2017 - U-joint

Outlander 650 XTP - 2016 - U-joint

Outlander 650 Xmr - 2013 - U-joint

Outlander 650 r - 2015 - Joint Universal joint

Outlander 650 Xmr - 2016 - Universal joint

Outlander 650 D- 2004 - Universal Joint

Quest 650 XT - 2002 - Universal Joint

Quest 650 cows

Commander 800 STD - 2013 - U-joint

Commander 800 XT - 2012 - U-joint

Commander 800 00 Max LTD - 2008 - U-joint

Outlander 800 Max STD - 2006 - U-joint

Outlander 800 Max STD - 2007 - U-joint

Outlander 800 Max STD - 2008 - U-joint

Outlander 800 Max XT - 2006 - U-joint

Outlander 800 Max X T - 2007 - U-joint

Outlander 800 Max XT - 2008 - U-joint

Outlander 800 Max 2008 - U-joint

Outlander 800 XT - 2006 - U-joint

Outlander 800 XT - 2007 - U-joint

Outlander 800

Outlander 800R - 2011 - U-joint

Outlander 800R DPS - 2013 - U-joint

Outlander 800R LTD - 2010 - U-joint

Outlander 800R Max - 2009 - U-joint

Outlander 800R Max - 2010 - U-joint

Outlander 800R Max DPS - 201 3 - Cross Joint

Outlander 800R Max LTD - 2009 - U-joint

Outlander 800R Max LTD - 2011 - U-joint

Outlander 800R Max LTD - 2012 - U-joint

Outlander 800R Max STD - 2012 - U-joint

Outlander 800R Max XT - 2009 - Cross Joint

Outlander 800R Max XT - 2012 - U-joint

Outlander 800R Max XT - 2013 - U-joint

Outlander 800R Max akowy

Outlander 800R XT - 2009 - Universal Joint

Outlander 800R XT - 2011 - Universal Joint

Outlander 800R XT - 2012 - Universal Joint

Outlander 800R XT - 2013 - Universal Joint

Outlander 800R R Xmr - 2011 - Joint Universal joint

Outlander 800R Xmr - 2012 - Universal joint

Outlander 800R negade 800R STD - 2009 - U-joint

Renegade 800R STD - 2010 - U-joint

Renegade 800R STD - 2011 - U-joint

Renegade 800R STD - 2012 - U-joint

Renegade 800R STD - 2013 - U-joint

Renegade 800R X - 2009 - Universal Joint

Renegade 800R Xxc - 2010 - U-joint

Renegade 800R Xxc - 2011 - U-joint

Renegade 800R Outlander 850 DPS EFI - 2017 - U-joint

Outlander 850 MOS EFI - 2017 - U-joint

Outlander 850 Max XT - 2016 - U-joint

Outlander 850 Max XT EFI - 2017 - U-joint

Outlander 850 Max 016 - U-joint

Outlander 850 XT EFI - 2017 - U-joint

Outlander 850 XTP - 2016 - U-joint

Outlander 850 XTP EFI - 2017 - U-joint

Outlander 850 2017 - Articulation Universal joint

Renegade 850 EFI - 2017 - Universal joint

Renegade 850 STD - 2016 - Universal joint

Renegade 850 Xxc - 2016 - Universal joint

Renegade 850 Xxc EFI - 2017 - Universal joint

Maverick X3 900 Std - 2017 - Universal joint b Crosshair

Maverick X3 900 XDS DPS - 2017 - Universal Joint

Maverick X3 900 1000 DPS - 2015 - Cross Joint

Comma
