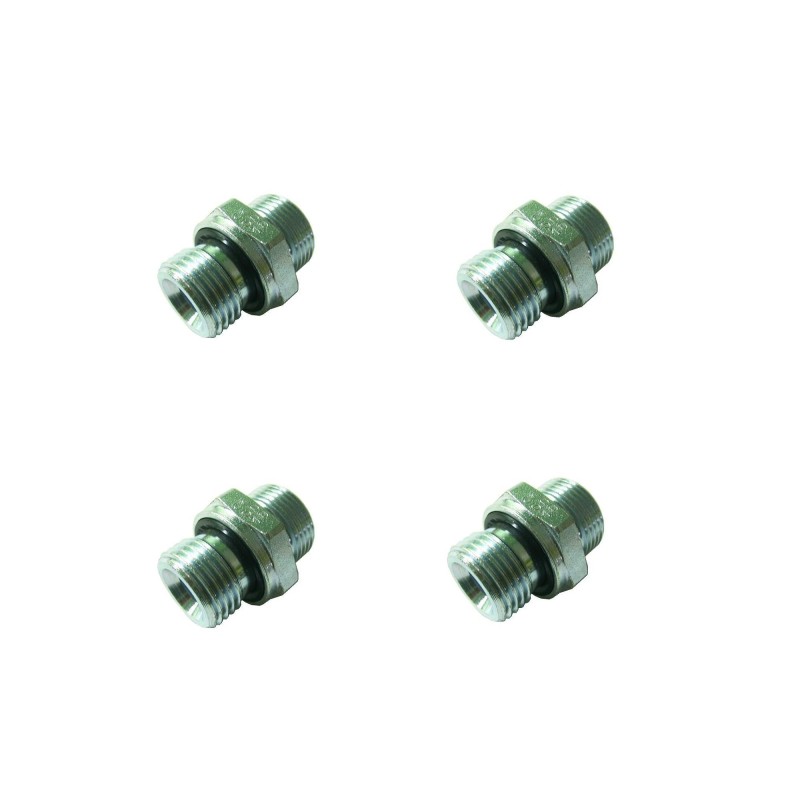

Set of connections for orbitrol m16x1 5 hydrolider

SET OF ORBITROL CONNECTIONS 1/2'-16X1.5 Production:

Original product of the Hydrolider brand, symbol: 1.06.11.004

Application:

Widely used in hydraulic systems in agriculture, horticulture, forestry, construction and broadly understood industry.

Connections fit all types of orbitrols (ON, CN, LS), recommended in systems with a maximum flow of up to 20 L/min.

Technical data:

Connections have a rubber seal.

Threads on the orbitrol side: 1/2' (with seal)

Metric threads on the cable side: 16x1.5

Material: corrosion-resistant galvanized steel

Helpful data:

BSP 1/2' thread diameter measured with a caliper:

Outer diameter [mm]: 20.5- 20, 9

Inner diameter [mm]: 18.6 - 19

M16x1.5 thread diameter measured with a caliper:

Outer diameter [mm]: 15.6 - 15.9

Inner diameter [mm]: 14.2 - 14.6
