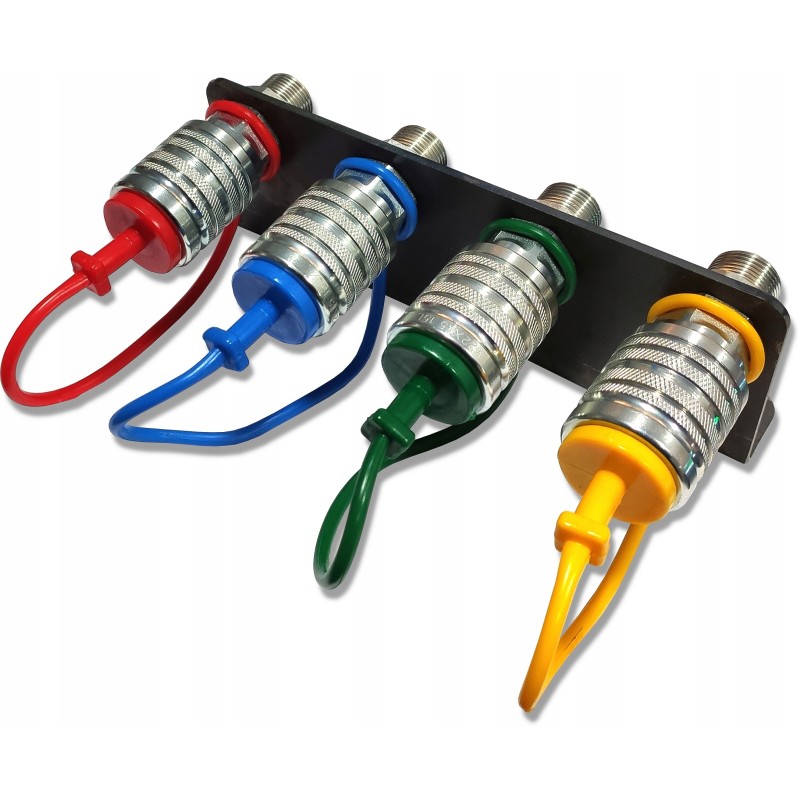

Set of board with 4x M16 euro socket quick connectors

SET OF BOARD (MOUNTING) AND 4x QUICK CONNECTORS, EURO M16 SOCKETS WITH COVERS, SKRAW-MET code: [8260] It is used to facilitate the connection and disconnection of bulkhead quick connectors (sockets - plugs) in various tractor components.

Can be used in agriculture, horticulture, forestry, construction and broadly understood industry. The fastening works perfectly in hydraulically powered machines and devices. The board is screwed on with two screws, e.g. in the TUR frame. Welding is also possible.

On our other auctions you will also find galvanized boards - double and quadruple with sets of quick connectors and covers. The composition includes: Raw board with four holes

4x LONG M16 socket

Red socket cover

Blue socket cover

Socket cover green

Yellow socket cover

Sheet intended for mounting quick connectors for bulkhead sockets and plugs with metric threads: M14

M16

M18

M22

And inch threads: G3/8'

G1/2'

Technical Specification: HYDRAULIC QUICK CONNECTOR LONG EURO THREAD SOCKET 16x1.5 Application: Quick connectors are used to quickly connect and disconnect individual hydraulic lines, without the risk of leaks or dirt getting into the system.

Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Specification: Quick connector type: euro ISO standard

Quick connector type: socket

Thread type: long, external

Material: galvanized steel

Weight: 0.30 kg
