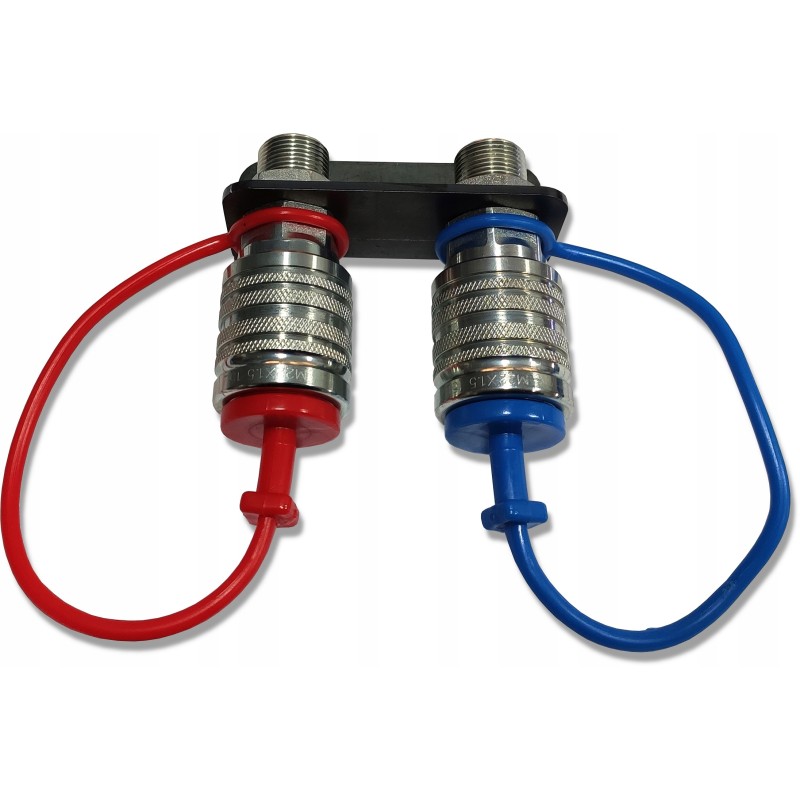

Set of board with 2x M16 Euro socket quick connectors

SET OF BOARD (FIXING) AND 2x QUICK CONNECTORS, EURO M16 SOCKETS WITH COVERS, SKRAW-MET code: [8254] It is used to facilitate the connection and disconnection of bulkhead quick connectors (sockets - plugs) in various tractor components.

Can be used in agriculture, horticulture, forestry, construction and broadly understood industry. The fastening works perfectly in hydraulically powered machines and devices. The board is screwed on with two screws, e.g. in the TUR frame. Welding is also possible.

On our other auctions you will also find galvanized boards - double and quadruple with sets of quick connectors and covers. The composition includes: Raw board with two holes

LONG M16 socket

Red socket cover

Blue socket cover

Sheet metal intended for mounting quick connectors for bulkhead sockets and plugs with metric threads: M14

M16

M18

M22

and inch threads: G3/8'

G1/2'

Technical Specification: HYDRAULIC QUICK CONNECTOR LONG EURO SOCKET THREAD 16x1.5 Application: Quick connectors are used for quick connection and disconnection of individual hydraulic lines, without the risk of leaks and dirt getting into the system.

Very helpful when repeatedly connecting and disconnecting various machines and devices powered by one hydraulic drive, e.g. a tractor.

Specification: Quick connector type: Euro ISO standard

Type of quick connector : socket

Thread type: long, external

Material: galvanized steel

Weight: 0.30kg
