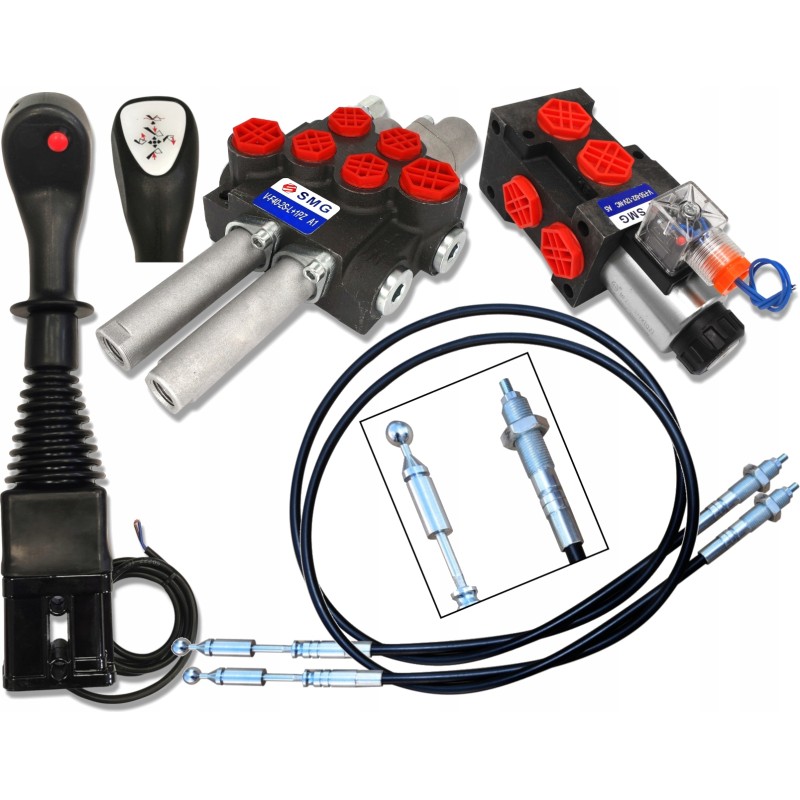

Set for auro 40l, 3 sections, joy float, 2x1 5m lines

3-section hydraulic set 40L/min with a floating section and a latch for TURAKOD SKRAW MET: [8497] Manufacturer: SM-G (SKRAW MET GROUP) Set includes: ball joystick with 1 button [0171]

2x cable, length 1, 5m [0202]

hydraulic distributor for cables, 2 sections 40L/min - floating section + latch [1720]

electrovalve - divider 6/2 12V 50L/min [2547]

The set is perfect for hydraulically powered machines and devices. It guarantees effective control of two sections in TUR front loaders (frame lifting and bucket inclination) and one additional section after pressing a button.

The set has many advantages that influence dynamic, fast and safe control of the machine.

Can be used in agriculture, horticulture and forestry or construction. It is adapted to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

2-SECTION HYDRAULIC DISTRIBUTOR, 40L, FOR CABLES + FLOATING SECTION WITH 1-WAY LATCH (K16+8) Manufacturer: SM-G (SKRAW MET GROUP) High-quality, monoblock distributor with a parallel system with a floating (absorbing) chamber.

It is characterized by a compact structure, stable operation and high versatility.

Enables the control of two double-acting actuators or ( after plugging one of the ports) single-acting.

It is possible to connect in series to the existing system (pressure sleeve required).

Control from the cab using cables and a joystick.

!ATTENTION! In a given distributor, the section with a latch is located in only one section with a FLOATING FUNCTION

Universal distributor, used in various types of machines such as: Cyclops

Tours

Loaders

Plows

Forklifts and many others

Three-position slider (1 - 0 - 2) with a latchwith a latch, i.e. it holds the position in the working position

Neutral position 0 (joystick set vertically - the cable is loose) the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (joystick set in an oblique forward position) the actuator piston rod extends is moving.

Working position 2 (joystick set in a diagonal position backwards), the actuator piston rod retracts.

Three-position slider (1 - 0 - 2) spring-loaded, returns to the vertical position

Neutral position 0 (joystick set vertically - the cable is slack) the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (joystick set in an oblique forward position), the actuator piston rod extends.

Working position 2 (joystick set in an oblique backward position), the actuator piston rod retracts.

Connection: Power supply ( P) BSP 1/2''

Return (T) BSP 1/2''

Outlet to sections BSP 3/8''

BSP 1/2'' connection

Technical specifications: Oil flow: 0 - 40 l/min

Maximum working pressure: 250 bar

Permissible ambient temperature: -40 ℃ to +60 ℃

Permissible oil temperature: -15 ℃ to +80 ℃

Equipped with a safety valve.

Solenoid valve 6/2 12v 50 l/min with plug Manufacturer: SM -G (SKRAW MET GROUP) This solenoid valve is an ideal solution when the hydraulic distributor used (to control an actuator) lacks an additional section to control another actuator.

Used in hydraulic control, most often with a 2-section distributor, as a 3-section, e.g. . gripper, crocodile, etc.

Possibility of series connection.

High-quality solenoid valve, characterized by compact structure, stable operation and high universality.

Application: The distributor is perfect for hydraulically powered machines and devices.

Can be used in agriculture and horticulture , forestry or construction.

Example application of the solenoid valve: two double-acting hydraulic cylinders controlled by one section in the distributor.

Thanks to it (using an electric impulse caused by the 'P' button), we can control two independent double-acting cylinders.

This button is usually located on the control element, i.e. lever or joystick.

Please take into account the fact that it does not allow you to control two actuators at the same time.

Technical data: Threads (BSP): 1/2'

Maximum oil flow: 50 l/ min

Voltage: 12 V

Maximum working pressure: 315 bar

Permissible ambient temperature: -40 ℃ to +60 ℃

Permissible oil temperature: -15 ℃ to +80 ℃

CONNECTION: P1 - P2 SUPPLY / RETURN (regardless of whether P1 or P2 will be the return or power supply)A - B - C - D OUTPUTS FOR RECEIVERS (ACTUATORS) JOYSTICK WITH 1 BUTTON Adapted for mechanical control of frame lifting, bale inclination and bale grabber or crocodile. Robust joystick enabling mechanical control of three-way hydraulic control valves TURA ( loader) using two cables and one button.

Allows remote control (from the cab) of distributors that are located outside the cab.

Application: Dedicated to controlling TURA 1, 2, 3 in tractors such as:

URSUS

ZETOR

MF and derivatives.

Perfect for hydraulically powered machines and devices.

Can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in various types of machines, such as: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, industrial machines and others.

Easy to install. Technical specifications: Operating temperature: from -30°C / to +80°C

Cable opening Φ14 mm

Lock lever

M8 self-locking pin for attaching the cable

Material: ergonomic, hardened plastic handle

Aluminum alloy base

The joystick has a safety mechanism (2) that allows you to lock the movements of the joystick head to prevent accidental activation: Locked joystick head Unlocked joystick head Cable to control the ball splitter 1, 5m POLISH product SUPER DURABLE The cable is perfect for controlling hydraulic distributors used in hydraulically powered machines and devices controlled by a joystick / lever.

It can be used in agriculture, horticulture, forestry, construction and industry in general.

Ends: The end of the cable on the joystick side ends with a ball with a diameter 14mm

Cable end on the distributor side, cable body thread M16x1.5, slider thread M6x1.6
