Sealing of the hitachi ex200 ex210 ex225 reduction gear

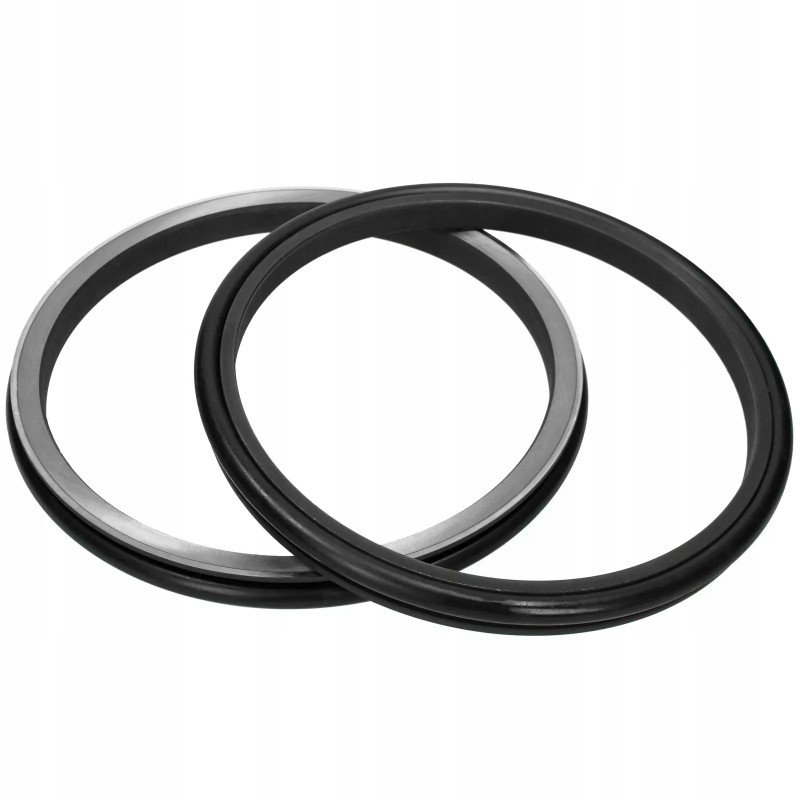

HITACHI hub reduction seal High-quality seal is a complete set that prevents oil leaks at the junction of the hub reduction flange and the hydromotor. The set consists of two metal rings and rubber O-rings.

The metal ring together with the outer bearing race form the so-called a sliding seal that allows the component to rotate and be tight. The rubber O-ring prevents oil leaks on the housing side and acts as a shock absorber to prevent the ring from being damaged during stress.

Technical data: Seal dimensions: 239 x 268 x 42 mm (internal dimension/external dimension/height)

Excavator weight: 20-25 t

Catalog number: 4114753

Fits models: EX200-2, EX200-3, EX200-3C, EX200-3E, EX200-5, EX200-5 JPN, EX200-5HG, EX200-5HHE, EX200-5LV JAP, EX200-5X JPN, EX200-5Z JPN, EX200K-2, EX200K-3, EX200LC-5HHE, EX200SS-5, EX210H-5, EX210H-5 JPN, EX210K-5 JPN, EX210LC-5HHE, EX220-2, EX220-3, EX220-5, EX220- 5 JPN, EX220-5HHE, EX225USR(LC), EX225USRK(LC), EX230-5, EX230H-5 JPN, EX230K-5, EX230LC-5HHE, ZX180LC, ZX180LC-AMS, ZX180LC-HCME, ZX200, ZX200-E, ZX200-HHE, ZX200-X, ZX200LC-HHE, ZX210-AMS, ZX210-HCME, ZX210H, ZX210K, ZX210N-AMS, ZX210N-HCME, ZX225US, ZX225US-E, ZX225US-HCME, ZX225USR, ZX225USR-E , ZX225USRK, ZX230, ZX230-HHE, ZX240-AMS, ZX240-HCME, ZX240H, ZX240K, ZX240LC-HHE, ZX250-HCME

Ring material: forged steel Ring hardness: 60-65 HRC

O-ring material: NBR75

Abrasion resistance: high

Rust resistance: medium Seal functions: Prevents oil leakage from the reduction gear Eliminates oblique stresses Reduces friction in the final drive Extends the service life of bearings (Life-Time). By choosing our products:

you can be sure that the excavator will not let you down when you need it most you don't have to worry whether the purchased part will fit - our professional team will help you choose you can quickly and easily replace damaged elements with new ones
