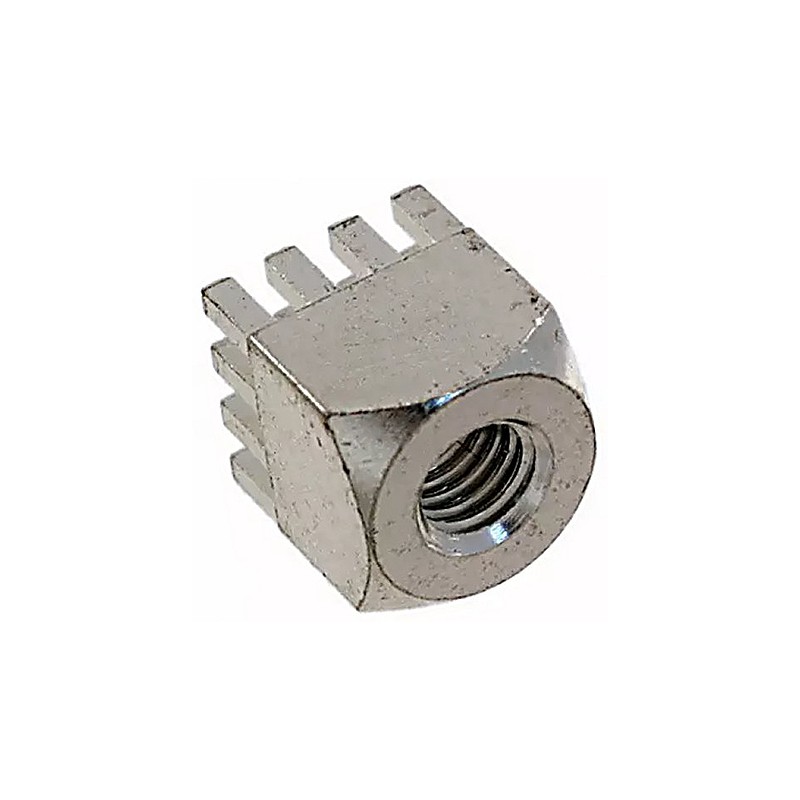

10 pcs - 7461147 Wurth Elektronik, Screw Terminal, Vertical, 180A

Wurth REDCUBE Power Elements - Screw Terminals with Full Plain Pin PlateREDCUBE screw terminal type power elements with a full plain pin plate configuration for transferring high currents of up to approximately 300 A onto PCB. These screw terminals have a rugged construction and are made from copper zinc alloy with a surface material of copper with tin plating. The key feature of these power elements is the use of press fit technology which produces an environmentally stable gas tight electrical connection to the PCB. Press fit mounting produces a high retention force to the PCB which is more secure than solder or screw connections and resistant to vibration and shock. Using press fit mounting eliminates the need for soldering which subjects the PCB to thermal loads. These screw terminal power elements are easily integrated into the production processing using simple press fit tooling. The use of press fit connections therefore makes these power elements highly reliable and cost effective to use.Features and BenefitsAble to transfer up to approximately 300A onto a PCBPress-fit technology for reliable gas tight and secure connection to PCBRugged construction with resistance to vibration and shockEliminates need for solderingOnly simple tooling requiredEasily integrated into production processApplicationsThese screw terminal power elements provide a reliable and cost effective solution for the transfer of high currents or power to a PCB across a wide range of industries. These industries include wind and solar, medical, industrial, agricultural and automotive. Applications include power supplies and converters and battery systems including emergency power supplies and systems and DC to AC converters.Wurth Elektronik REDCUBE Series PCB Mount Terminals
