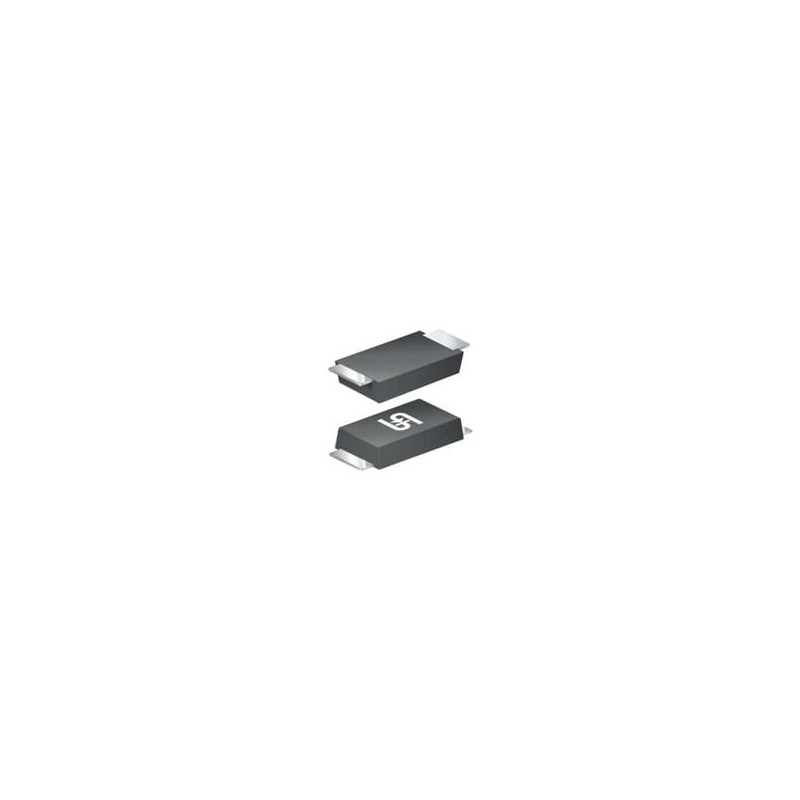

10 pcs : SS14LWH - Schottky Diodes & Rectifiers 1A, 40V, Schottky Rectifier
    • 10 pcs : SS14LWH - Schottky Diodes & Rectifiers 1A, 40V, Schottky Rectifier

    10 pcs : SS14LWH - Schottky Diodes & Rectifiers 1A, 40V, Schottky Rectifier

    10electronicpartsUK821SS14LWH
    10 pcs : SS14LWH - Schottky Diodes & Rectifiers 1A, 40V, Schottky Rectifier
    £22.80
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    SS1xLWH Schottky Barrier Surface Mount Rectifiers Taiwan Semiconductor SS1xLWH Schottky Barrier Surface Mount Rectifiers operate at 1A forward current and 40V to 150V repetitive peak reverse voltage. These Schottky rectifiers feature high efficiency, high surge current capability, low power loss, and a guard ring for overvoltage protection. The SS1xLWH Schottky rectifiers are AEC-Q101 qualified, RoHS compliant, halogen-free according to IEC 61249-2-21, and meet JESD 201 class 2 whisker test. The SS1xLWH rectifiers are ideal for low-voltage and high-frequency inverters, DC/DC converters, freewheeling diodes, reverse battery protection, and car lighting.
    Product Details
    10electronicpartsUK821SS14LWH
    SS14LWH
    10 Items

    Data sheet

    Manufacturer
    TAIWAN SEMICONDUCTOR
    Width
    2.03 mm
    Height
    1.14 mm
    Length
    2.03 mm
    Maximum Operating Temperature
    + 150 C
    Minimum Operating Temperature
    - 55 C
    Mounting Style
    SMD/SMT
    Product Type
    Rectifiers
    Termination Style
    SMD/SMT
    Package/Case
    DO-216-2
    Product Category
    Rectifiers
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Microchip Technology
    Factory Pack Quantity Factory Pack Quantity
    3000
    Subcategory
    Diodes & Rectifiers
    Unit Weight
    4.885 g
    Vr - Reverse Voltage
    200 V
    If - Forward Current
    1 A
    Vf - Forward Voltage
    1.25 V
    Max Surge Current
    20 A
    Ir - Reverse Current
    10 uA
    Recovery Time
    50 ns
