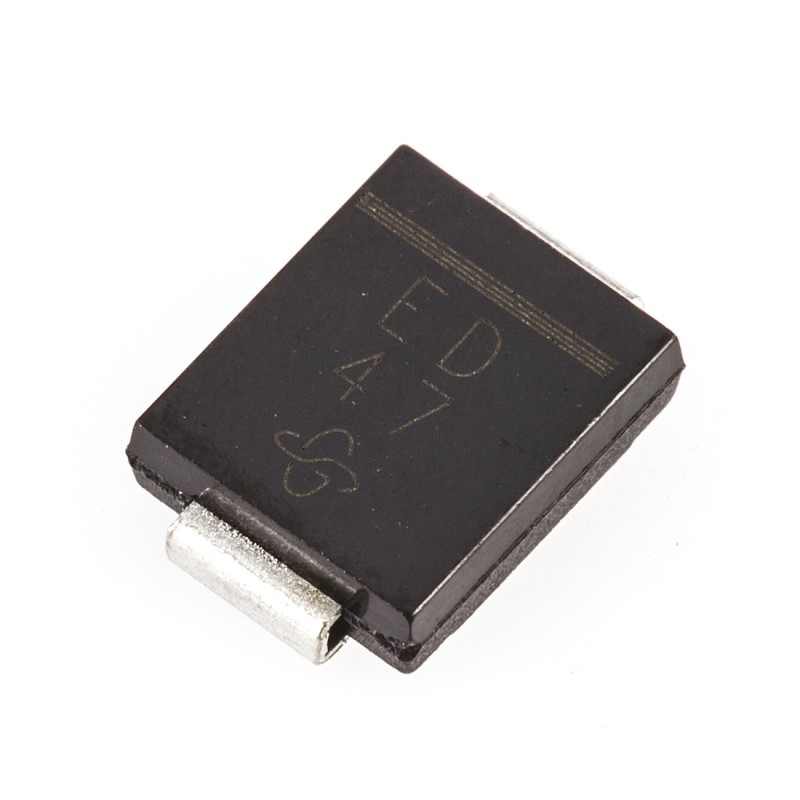

100 pcs - ES3D-E3/9AT Vishay 200V 3A, Ultrafast Rectifiers Diode, 2-Pin DO-214AB ES3D-E3/9AT

Ultrafast Recovery Rectifiers 2A to 5A, Vishay SemiconductorFeatures• Glass passivated chip junction,• Ultrafast reverse recovery time,• Low forward voltage drop,• Low switching losses, high efficiency,• High forward surge capability,• Solder dip 275 °C max. 10 s, per JESD 22-B106,Typical ApplicationsFor use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication.Mechanical DataCase: DO-201AD Moulding compound meets UL 94 V-0 flammability rating Base P/N-E3 - RoHS-compliant, commercial grade Terminals: Matte tin-plated leads, solderable per J-STD-002 and JESD 22-B102 E3 suffix meets JESD 201 class 1A whisker test.Polarity: Colour band denotes cathode end.Diodes and Rectifiers, Vishay Semiconductor
