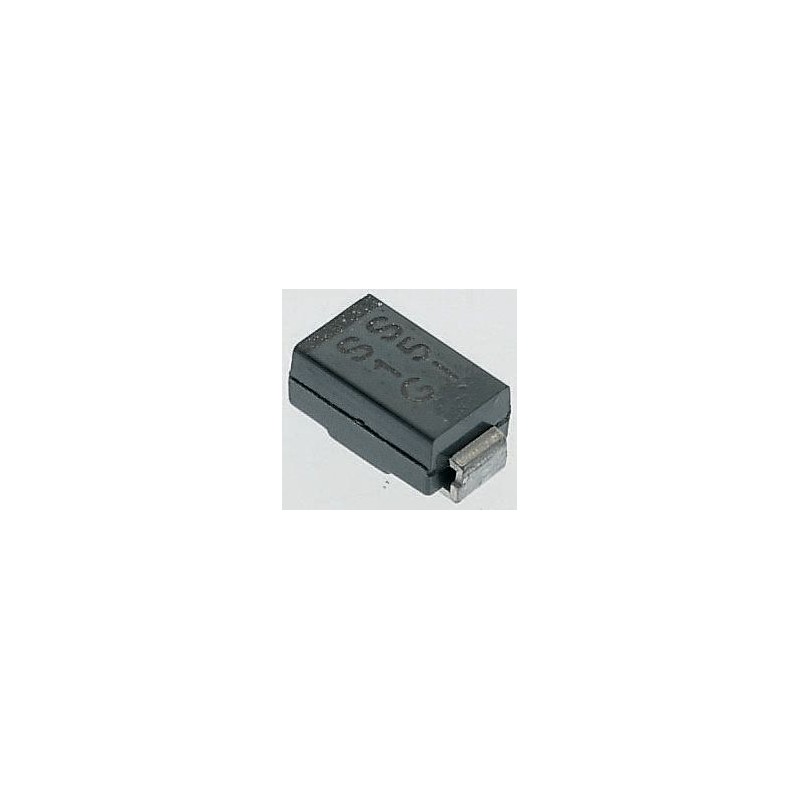

250 pcs - ES1C-E3/5AT Vishay 150V 1A, Ultrafast Rectifiers Diode, 2-Pin DO-214AC ES1C-E3/5AT

Vishay Silicon Junction Diode, ES1A, ES1B, ES1C, ES1DFEATURES• Low profile package• Ideal for automated placement• Glass passivated pellet chip junction• Ultrafast recovery times for high efficiency• Low forward voltage, low power losses• High forward surge capability• Meets MSL level 1, per J-STD-020, LF maximum peakof 260 °C• AEC-Q101 qualified available- Automotive ordering code: P/NHE3 or P/NHM3TYPICAL APPLICATIONSFor use in high frequency rectification and freewheelingapplication in switching mode converters and inverters forconsumer, computer, automotive and telecommunication.MECHANICAL DATACase: SMA (DO-214AC)Molding compound meets UL 94 V-0 flammability ratingBase P/N-E3 - RoHS-compliant, commercial gradeBase P/N-M3 - halogen-free, RoHS-compliant, commercialgradeBase P/NHE3_X - RoHS-compliant and AEC-Q101 qualifiedBase P/NHM3_X - halogen-free, RoHS-compliant, andAEC-Q101 qualified(“_X” denotes revision code e.g. A, B, .....)Terminals: matte tin plated leads, solderable perJ-STD-002 and JESD 22-B102E3, M3, HE3, and HM3 suffix meets JESD 201 class 2whisker testPolarity: color band denotes cathode endDiodes and Rectifiers, Vishay Semiconductor
