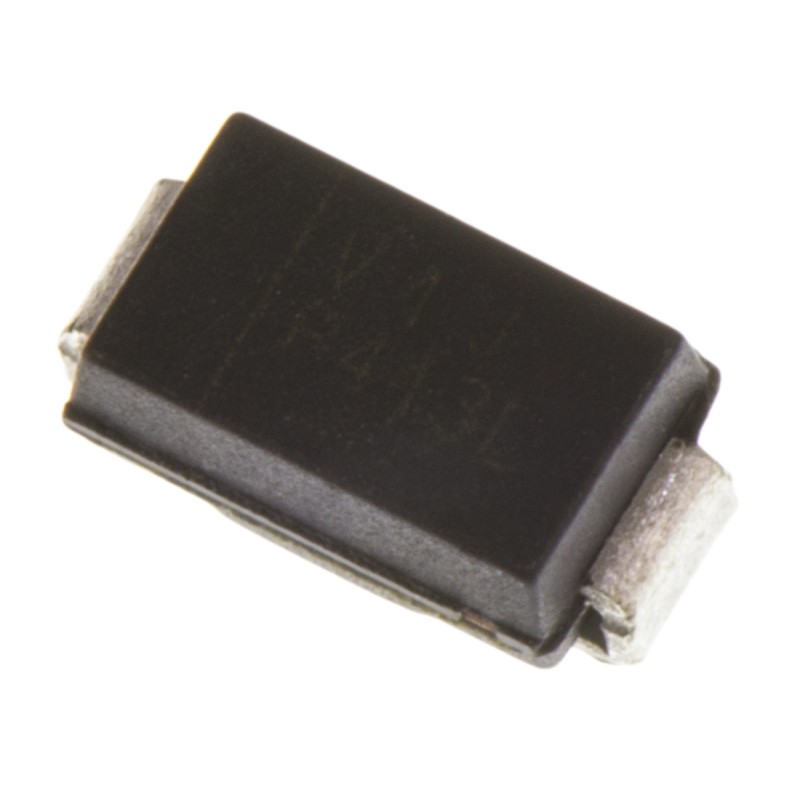

Vishay High Performance Schottky Rectifier, VS-10MQ100-M3DESCRIPTIONThe VS-10MQ100-M3 surface mount Schottky rectifier hasbeen designed for applications requiring low forward dropand very small foot prints on PC boards. Typicalapplications are in disk drives, switching power supplies,converters, freewheeling diodes, battery charging, andreverse battery protection.FEATURES• Low forward voltage drop• Guard ring for enhanced ruggedness and longterm reliability• Small foot print, surface mountable• High frequency operation• Meets MSL level 1, per J-STD-020, LF maximum peakof 260 °CDiodes and Rectifiers, Vishay Semiconductor
