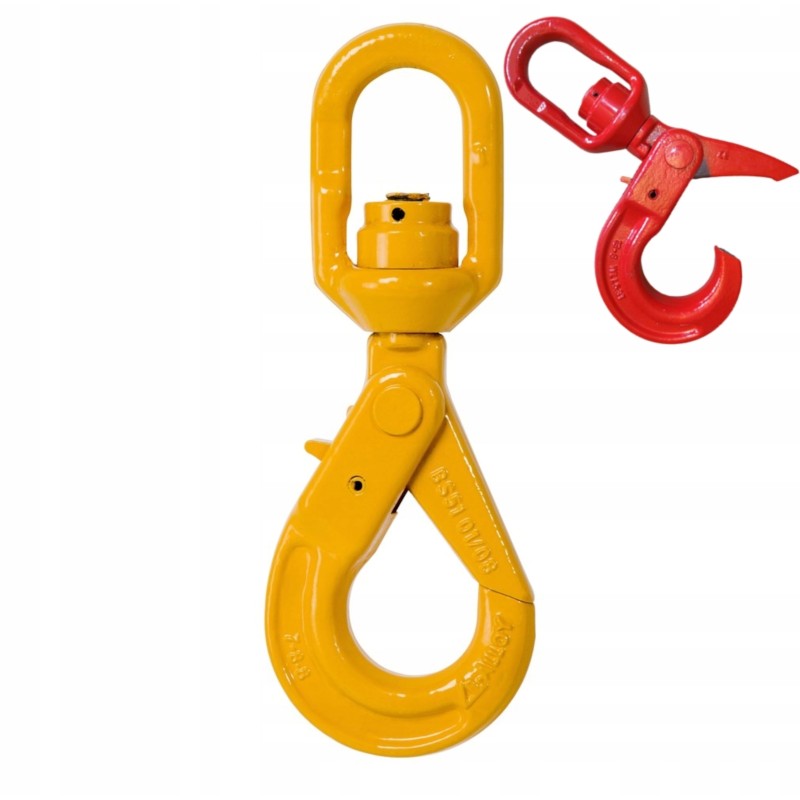

Safe swivel hook with bearings, 8t, CE approved

SAFE, SELF-LOCKING SWIVEL HOOK ON A BALL BEARING WLL/DOR: 8,000 kg/8.0 tons

DESIGN:

Hook with a swivel-type swivel link on a ball bearing, which allows it to rotate freely around its own axis while maintaining excellent rotational properties of the swivel with the possibility of compensating for axial play. The hook locks automatically when you start lifting. It has a latch that prevents the hook from opening. The hook is powder-coated in yellow or red / the color depends on the delivery / made of drop-forged alloy steel in strength class 8. The hook has a lock that prevents the rope or other cable from disconnecting under load. therefore, it is safe to use.

THE HOOK MEETS THE STANDARD: EN 1677-1

SAFETY FACTOR: 4:1

APPLICATION:

For chain, rope and textile slings, for lifting equipment, in the oil and gas industry, as well as in other industries , which requires lifting weights in complete safety. They are suitable for use in the temperature range from -40 ° C to 200 ° C without reducing the working load limit

DIMENSIONS OF BEARING-MOUNTED SAFETY SWIVEL HOOK:

PROPERTIES:

Hook made of high-quality alloy steel [ALLOY]. Class 80 (forged and hardened)

For use with overhead crane, crane, crane, with class 80 sling chain, winch....

Hook marking: manufacturer code, WLL, size, CE

Proof load [MPF] tested up to 2 .5 x WLL in relation to the load limit 4:1

Operating range at temperatures from -40 ° C to 200 ° C without lowering the working load limit

Extreme load [breaking force] is four times greater

Each hook has:

Marking: code manufacturer / Max strength: WLL … T / CE / hook size

Documentation: Certificate in paper version on request
