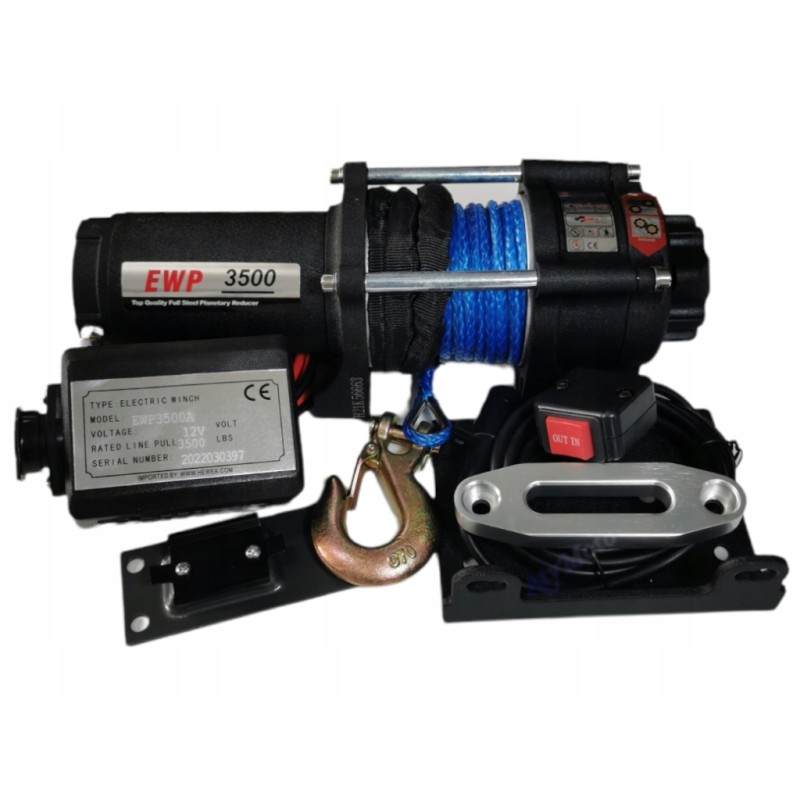

El Runva EWP3500lb winch 12v synthetic rope

Electric winch RUNVA EWP3500lb 12V - synthetic rope. Electric winch EWP3500 lbs 12V - synthetic rope. The price is for one piece.

The winch includes:

wired remote control, roller rope guide,

steel rope ended with a thimble wound on a winch,

hook, mounting screws, mounting plate, control box with connection cables.

All steel gear reducer.

Self-locking braking.

Synthetic rope.

Towing capacity - 3500 lbs (1588 kg)

Motor - 12 V: input power: 2.4 kW / 3.2 HP, Power: 1.0 kW / 1.3 HP

Gear ratio - 170:1

Rope diameter - Ø 5.4 mm

Rope length - 12.8 m

Dimensions - length 335 mm × width 116 mm × height 112 mm

Weight - 9.6 kg

Pulling force depending on the rope layer:

Rope Layer - Rope Pull

1 - 1588

2 - 1265

3 - 1052

4 - 900

Application:

quads, ATV, UTV.

Code id: 29378
