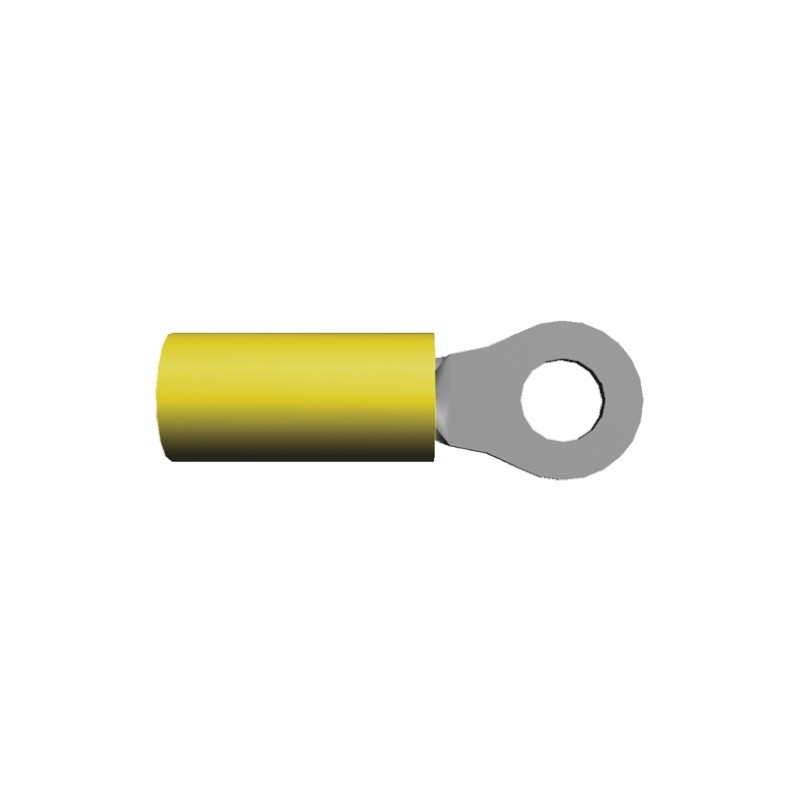

20 pcs - 320567 TE Connectivity, PIDG Insulated Ring Terminal, M3.5 Stud Size, 2.6mm² to 6.6mm² Wire Size, Yellow

TE Connectivity PIDG Ring Tongue Wire Crimp TerminalsPIDG (Pre-Insulated Diamond Grip) ring tongue wire crimp terminals designed for uniform reliability in the most difficult circuit environments. These PIDG ring tongue terminals consist of a precision-formed high conductivity copper body and barrel. Inside the barrel are serrations which provide maximum contact and tensile strength after crimping. The wire barrel is surrounded with copper sleeve which provides improved wire insulation support and prevents fraying. An outer colour coded nylon sleeve aids wire size identification and a funnelled entry prevents turned back wire strands allowing fast wire insertion during high-speed production. The construction of these PIDG terminals and the use of specialised tool dies allows a uniform and reliable crimp to be produced. Available with various wire, barrel and stud sizes, these PIDG ring terminals offer a versatile solution to a wide range of wiring applicationsFeatures and Benefits• High conductivity copper body• Copper sleeve for improved wire insulation support• Serrations in wire barrel for maximum contact and tensile strength• Colour coded sleeves for easy wire size and tooling identification• Funnelled wire entry for easy wire insertion• Design enables a reliable and uniform crimpApplicationsThese PIDG wire terminals are suitable for use in a wide range of applications with many terminals meeting or exceeding the requirements of MIL-T-7928, Type II, Class 1 and 2. Applications include instruments/control, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace and appliances.ApprovalsTE Connectivity PIDG Terminals
