    10 pcs : DA14581-00UNA - RF System on a Chip - SoC Bluetooth Low Energy 4.2 SoC optimized for A4WP and HCI applications ? 12 GPI
    • 10 pcs : DA14581-00UNA - RF System on a Chip - SoC Bluetooth Low Energy 4.2 SoC optimized for A4WP and HCI applications ? 12 GPI

    10 pcs : DA14581-00UNA - RF System on a Chip - SoC Bluetooth Low Energy 4.2 SoC optimized for A4WP and HCI applications ? 12 GPI

    10(Allparts)724DA1458100UNA

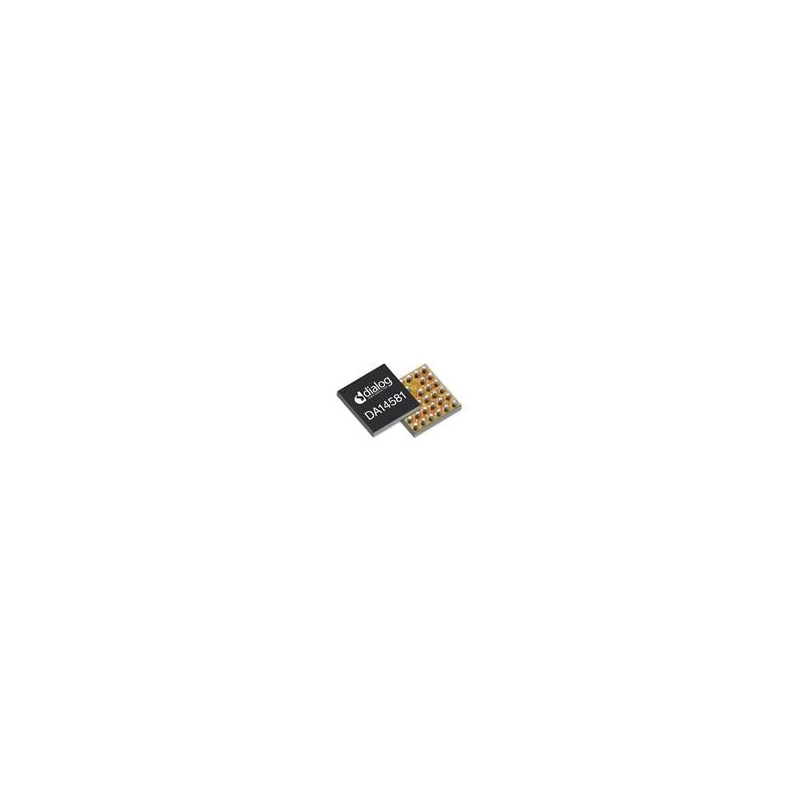

    10 pcs : DA14581-00UNA - RF System on a Chip - SoC Bluetooth Low Energy 4.2 SoC optimized for A4WP and HCI applications ? 12 GPIOsin WL-CSP34 and 0.4mm ball pitch package
    £63.75
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    DA14581 Low Power Bluetooth Smart SoC Dialog Semiconductor DA14581 Low Power Bluetooth Smart SoC is the world's smallest, lowest power and most integrated Bluetooth® Smart solution for A4WP wireless charging and HCI applications. It is an optimized version of the outstanding DA14580 SoC. IA fast boot time for the Power Receiving Unit (PRU) and 8 connections for the Power Transmitting Unit (PTU) make the DA14581 a perfect solution for A4WP. The optimized code for HCI, which fits into the DA14581's OTP memory, enables you to create a pre-programmed HCI device. It has a fully integrated radio transceiver and baseband processor for Bluetooth® Smart. It can be used as a standalone application processor or as a data pump in hosted systems.Learn More
    Product Details
    Renesas / Dialog
    10(Allparts)724DA1458100UNA
    DA14581-00UNA
    10 Items

    Data sheet

    Manufacturer
    Renesas Electronics
    Height
    0.511 mm
    Length
    2.436 mm
    Operating frequency
    2.4 GHz
    Series
    DA14581
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Bluetooth
    Product Type
    RF System on a Chip - SoC
    Technology
    Si
    Interface Type
    I2C, SPI, UART
    Package/Case
    WLCSP-34
    Core
    ARM Cortex M0
    Product Category
    RF System on a Chip - SoC
    Program Memory Size
    32 kB, 84 kB
    Packaging
    MouseReel
    RoHS
    Details
    Data RAM Size
    42 kB
    Maximum Clock Frequency
    16 MHz
    ADC Resolution
    10 bit
    Number of I/Os
    14 I/O
    Supply Voltage - Min
    900 mV
    Supply Voltage - Max
    3.3 V
    Brand
    Renesas / Dialog
    Data RAM Type
    SRAM
    Number of ADC Channels
    4 Channel
    Factory Pack Quantity Factory Pack Quantity
    5000
    Subcategory
    Wireless & RF Integrated Circuits
