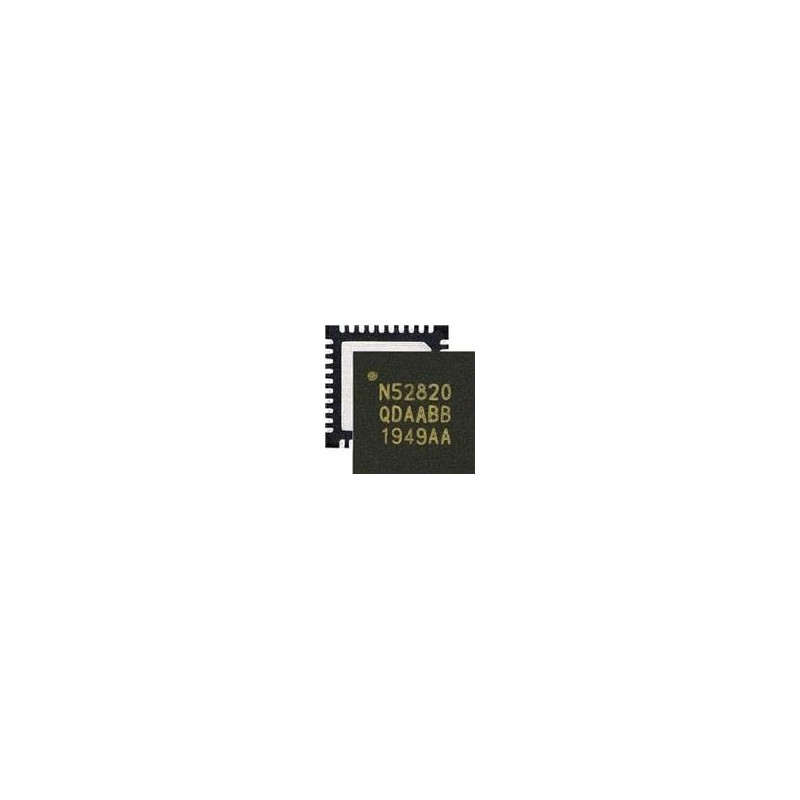

    10 pcs : nRF52820-QDAA-D-R - RF System on a Chip - SoC Bluetooth 5.3 SoC with built-in USB supporting Bluetooth Low Energy, Blue
    • 10 pcs : nRF52820-QDAA-D-R - RF System on a Chip - SoC Bluetooth 5.3 SoC with built-in USB supporting Bluetooth Low Energy, Blue

    10 pcs : nRF52820-QDAA-D-R - RF System on a Chip - SoC Bluetooth 5.3 SoC with built-in USB supporting Bluetooth Low Energy, Blue

    10(Allparts)949NRF52820QDAADR
    10 pcs : nRF52820-QDAA-D-R - RF System on a Chip - SoC Bluetooth 5.3 SoC with built-in USB supporting Bluetooth Low Energy, Bluetooth mesh, Thread and Zigbee
    £53.25
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    nRF52820 BLUETOOTH® 5.3 System-on-Chip (SoC) Nordic Semiconductor nRF52820 BLUETOOTH® 5.3 System-on-Chip (SoC) is a single-chip wireless solution offering built-in USB and advanced wireless connectivity in a small package. The nRF52820 features an Arm® Cortex®-M4 processor, clocked at 64MHz. It has 256KB Flash, 32KB RAM, and a range of analogue and digital interfaces such as an analogue comparator, UART, SPI, TWI, QDEC, and full-speed USB 2.0. The nRF52820 can be supplied with a voltage from 1.7V to 5.5V, allowing the device to be powered by sources such as rechargeable batteries or USB. The 2.4GHz multiprotocol radio is fully featured and provides up to +8dBm output power.
    Product Details
    NORDIC SEMICONDUCTOR
    10(Allparts)949NRF52820QDAADR
    nRF52820-QDAA-D-R
    10 Items

    Data sheet

    Manufacturer
    NORDIC SEMICONDUCTOR
    Width
    5 mm
    Length
    5 mm
    Output power
    8 dBm
    Operating frequency
    2.4 GHz
    Sensitivity
    - 95 dBm
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    BLE, Bluetooth Mesh, Thread, Zigbee
    Operating Temperature Range
    - 40 C to + 105 C
    Product Type
    RF System on a Chip - SoC
    Technology
    Si
    Interface Type
    QDEC, SPI, TWI, UART, USB
    Package/Case
    QFN-40
    Core
    ARM Cortex M4
    Product Category
    RF System on a Chip - SoC
    Program Memory Size
    256 kB
    Packaging
    Cut Tape
    RoHS
    Details
    Data RAM Size
    32 kB
    Maximum Clock Frequency
    64 MHz
    ADC Resolution
    12 bit
    Number of I/Os
    18 I/O
    Supply Voltage - Min
    1.7 V
    Supply Voltage - Max
    5.5 V
    Data Bus Width
    32 bit
    Brand
    Nordic Semiconductor
    Data RAM Type
    SRAM
    Moisture Sensitive
    Yes
    Operating Supply Voltage
    1.7 V to 5.5 V
    Processor Series
    nRF52
    Program Memory Type
    Flash
    Factory Pack Quantity Factory Pack Quantity
    4000
    Subcategory
    Wireless & RF Integrated Circuits
    Development Kit
    nRF52833 DK
    Maximum Data Rate
    2 Mbps
    Supply Current Receiving
    4.7 mA
    Supply Current Transmitting
    14.4 mA
    Number of Timers
    6 Timer
