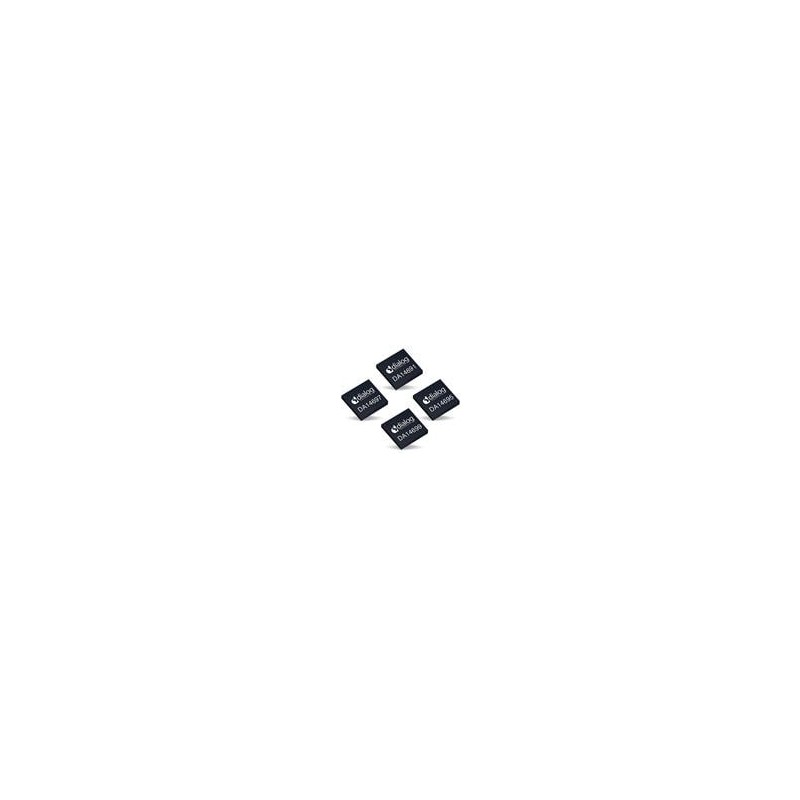

    1 pcs : DA14697-00000HR2 - RF System on a Chip - SoC Multi-core wireless MCU for Bluetooth 5.2 and proprietary 2G4 protocols
    • 1 pcs : DA14697-00000HR2 - RF System on a Chip - SoC Multi-core wireless MCU for Bluetooth 5.2 and proprietary 2G4 protocols

    1 pcs : DA14697-00000HR2 - RF System on a Chip - SoC Multi-core wireless MCU for Bluetooth 5.2 and proprietary 2G4 protocols

    Allparts-UK/M/724-DA14697-00000HR2
    £21.41
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    SmartBond™ DA1469x Family Renesas / Dialog SmartBond™ DA1469x Family is BLUETOOTH® low energy solution with advanced, feature-rich microcontroller units for wireless connectivity. This product family builds off the successes of Dialog's SmartBond line. The products boast three cores with greater processing power, resources, range, and battery life. This enables developers to push the boundaries of various connected consumer applications. The DA1469x line offers advanced connectivity features to future-proof devices and fits multiple application needs. The devices are the first wireless MCU based on the ARM Cortex M33 processor. The DA1469x offers greater processing power for intensive applications. This includes high-end fitness trackers, advanced smart home devices, and virtual reality game controllers.
    Product Details
    Renesas / Dialog
    Allparts-UK/M/724-DA14697-00000HR2
    DA14697-00000HR2
    10 Items

    Data sheet

    Manufacturer
    Renesas Electronics
    Width
    5 mm
    Height
    0.9 mm
    Length
    5 mm
    Output power
    6 dBm
    Operating frequency
    2.4 GHz
    Sensitivity
    - 97 dBm
    Series
    DA1469
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Bluetooth
    Product Type
    RF System on a Chip - SoC
    Technology
    Si
    Interface Type
    I2C, I2S, SPI, UART, USB
    Package/Case
    VFBGA-100
    Core
    ARM Cortex M33
    Product Category
    RF System on a Chip - SoC
    Program Memory Size
    4 kB, 128 kB
    Packaging
    Cut Tape
    Data RAM Size
    512 kB
    Maximum Clock Frequency
    96 MHz
    ADC Resolution
    10 bit, 14 bit
    Number of I/Os
    55 I/O
    Supply Voltage - Min
    2.4 V
    Supply Voltage - Max
    4.75 V
    Data Bus Width
    32 bit
    Brand
    Renesas / Dialog
    Data RAM Type
    SRAM
    Moisture Sensitive
    Yes
    Number of ADC Channels
    16 Channel
    Program Memory Type
    OTP
    Factory Pack Quantity Factory Pack Quantity
    5000
    Subcategory
    Wireless & RF Integrated Circuits
    Tradename
    SmartBond
    Unit Weight
    715.250 mg
    Maximum Data Rate
    1 Mbps
    Supply Current Receiving
    1.8 mA
    Supply Current Transmitting
    3 mA
    Number of Timers
    4 Timer
