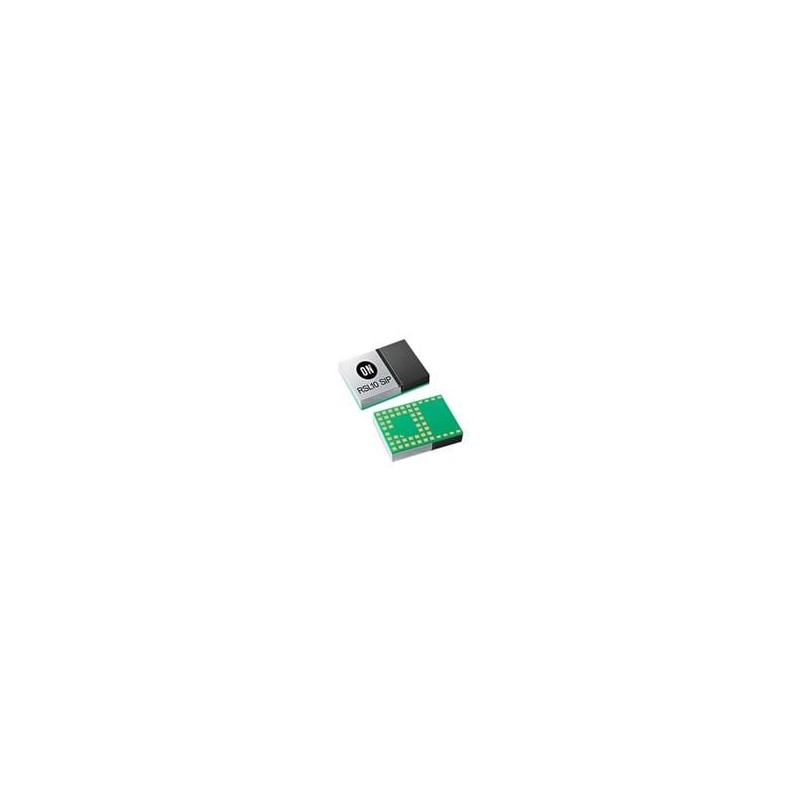

    1 pcs : NCH-RSL10-101S51-ACG - RF System on a Chip - SoC RSL10 SIP
    • 1 pcs : NCH-RSL10-101S51-ACG - RF System on a Chip - SoC RSL10 SIP

    1 pcs : NCH-RSL10-101S51-ACG - RF System on a Chip - SoC RSL10 SIP

    Allparts-UK/M/863-NCHRSL1010S51ACG
    ONSEMI
    £34.37
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    RSL10 Multi-Protocol BLUETOOTH® System-in-Package onsemi RSL10 Multi-Protocol BLUETOOTH® 5 System-In-Package (SiP) is a complete solution that provides an easy way to integrate Bluetooth Low Energy (BLE) technology into a wireless application. The RSL10 SiP integrates the RSL10 SoC, an onboard antenna, and all necessary passive components in one package to help minimize overall system size. Already fully qualified to FCC, CE, and other regulatory standards, the onsemi RSL10 Multi-Protocol BLUETOOTH 5 System-In-Package (SiP) removes the need for additional antenna design considerations or RF certifications.
    Product Details
    ONSEMI
    Allparts-UK/M/863-NCHRSL1010S51ACG
    NCH-RSL10-101S51-ACG
    10 Items

    Data sheet

    Manufacturer
    ONSEMI
    Width
    6 mm
    Height
    1 mm
    Length
    6 mm
    Output power
    6 dBm
    Operating frequency
    2.4 GHz
    Sensitivity
    - 93 dBm
    Series
    RSL10
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Bluetooth
    Product Type
    RF System on a Chip - SoC
    Technology
    Si
    Interface Type
    GPIO, I2C, PCM, SPI, UART
    Package/Case
    SIP-51
    Core
    ARM Cortex M3
    Product Category
    RF System on a Chip - SoC
    Program Memory Size
    384 kB
    Packaging
    MouseReel
    RoHS
    Details
    Data RAM Size
    76 kB, 88 kB
    Maximum Clock Frequency
    48 MHz
    Supply Voltage - Min
    1.1 V
    Supply Voltage - Max
    3.3 V
    Data Bus Width
    32 bit
    Brand
    onsemi
    Data RAM Type
    SRAM
    Moisture Sensitive
    Yes
    Program Memory Type
    Flash
    Factory Pack Quantity Factory Pack Quantity
    2500
    Subcategory
    Wireless & RF Integrated Circuits
    Unit Weight
    1.265 g
    Maximum Data Rate
    4 Mbps
    Supply Current Receiving
    5.6 mA
    Supply Current Transmitting
    8.9 mA
