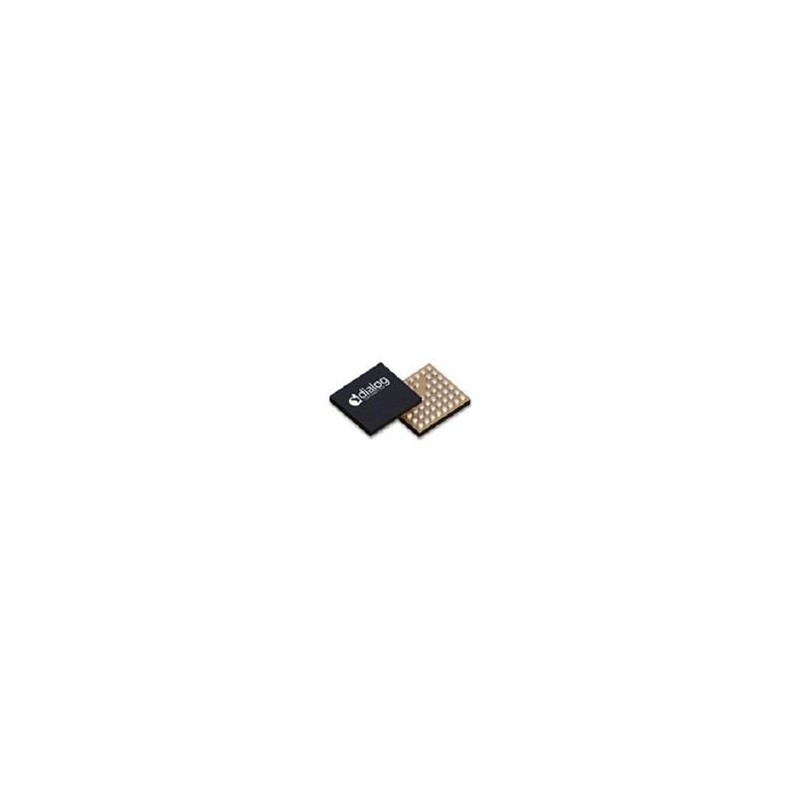

    1 pcs : DA14681-01000U22 - RF System on a Chip - SoC Bluetooth Low Energy 4.2 SoC with Flexpower ARM Cortex M0, crypto, PMU, mem
    • 1 pcs : DA14681-01000U22 - RF System on a Chip - SoC Bluetooth Low Energy 4.2 SoC with Flexpower ARM Cortex M0, crypto, PMU, mem

    1 pcs : DA14681-01000U22 - RF System on a Chip - SoC Bluetooth Low Energy 4.2 SoC with Flexpower ARM Cortex M0, crypto, PMU, mem

    Allparts-UK/M/724-DA14681-01000U22
    £20.14
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    DA14680/DA14681 SmartBond™ ICs Renesas / Dialog DA14680/DA14681 SmartBond™ ICs manage multisensor arrays, enable always-on sensing, and save power. An integrated Power Management Unit (PMU) is comprised of system power rails, a battery charger, and a fuel gauge. The PMU supports rechargeable batteries natively and can power a complete wearable system.
    Product Details
    Renesas / Dialog
    Allparts-UK/M/724-DA14681-01000U22
    DA14681-01000U22
    10 Items

    Data sheet

    Manufacturer
    Renesas Electronics
    Width
    3.01 mm
    Height
    0.5 mm
    Length
    3.406 mm
    Output power
    0 dBm
    Operating frequency
    2.4 GHz
    Sensitivity
    - 94 dBm
    Series
    DA14681
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Bluetooth
    Product Type
    RF System on a Chip - SoC
    Technology
    Si
    Interface Type
    I2C, SPI, UART, USB
    Package/Case
    WLCSP-53
    Core
    ARM Cortex M0
    Product Category
    RF System on a Chip - SoC
    Program Memory Size
    64 kB, 128 kB
    Packaging
    MouseReel
    RoHS
    Details
    Data RAM Size
    128 kB
    Maximum Clock Frequency
    96 MHz
    ADC Resolution
    10 bit
    Number of I/Os
    21 I/O
    Supply Voltage - Min
    1.7 V
    Supply Voltage - Max
    4.75 V
    Data Bus Width
    32 bit
    Brand
    Renesas / Dialog
    Data RAM Type
    SRAM
    Number of ADC Channels
    8 Channel
    Program Memory Type
    OTP
    Factory Pack Quantity Factory Pack Quantity
    5000
    Subcategory
    Wireless & RF Integrated Circuits
    Tradename
    SmartBond
    Maximum Data Rate
    400 kbps
    Supply Current Receiving
    3.1 mA
    Supply Current Transmitting
    3.4 mA
    Number of Timers
    3 Timer
