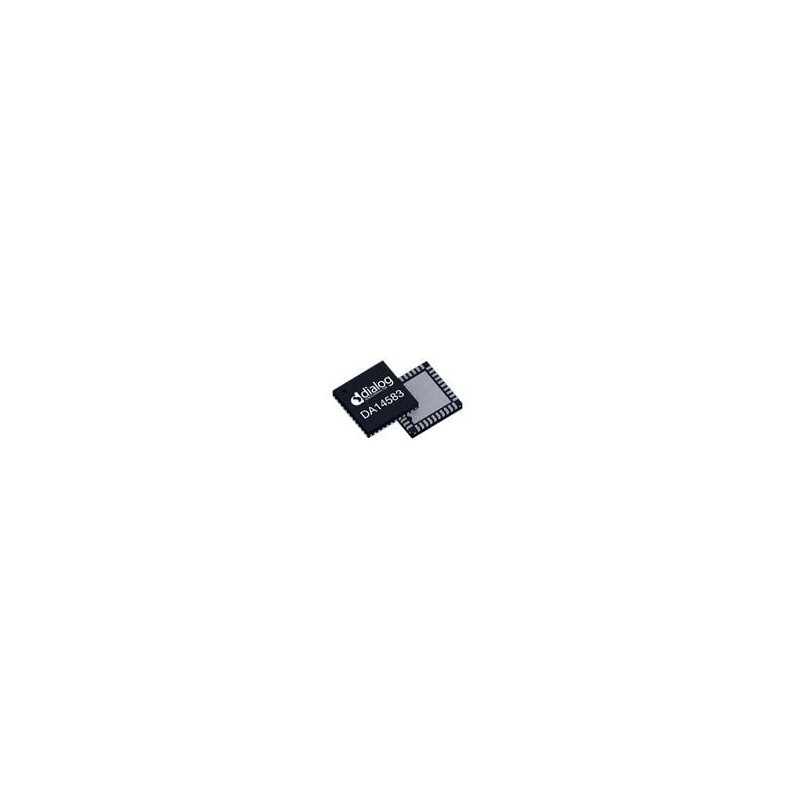

    1 pcs : DA14583-01F01AT2 - RF System on a Chip - SoC Bluetooth Low Energy 4.2 SoC with integrated 1Mb Flash memory 24 GPIOs in Q
    • 1 pcs : DA14583-01F01AT2 - RF System on a Chip - SoC Bluetooth Low Energy 4.2 SoC with integrated 1Mb Flash memory 24 GPIOs in Q

    1 pcs : DA14583-01F01AT2 - RF System on a Chip - SoC Bluetooth Low Energy 4.2 SoC with integrated 1Mb Flash memory 24 GPIOs in Q

    Allparts-UK/M/724-DA14583-01AT2
    £16.47
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    DA14583 Low Power Bluetooth Smart SoC Dialog Semiconductor DA14583 Low Power Bluetooth Smart SoC is an integrated circuit that has a fully integrated radio transceiver and baseband processor for Bluetooth® Smart. It can be used as a standalone application processor or as a data pump in hosted systems. The DA14583 supports a flexible memory architecture, including 1Mbit of Flash memory, for storing Bluetooth profiles and custom application code, which can be updated over the air (OTA). The qualified Bluetooth Smart protocol stack is stored in a dedicated ROM. All software runs on the ARM® Cortex®-M0 processor via a simple scheduler.Learn More
    Product Details
    Renesas / Dialog
    Allparts-UK/M/724-DA14583-01AT2
    DA14583-01F01AT2
    10 Items

    Data sheet

    Manufacturer
    Renesas Electronics
    Width
    5 mm
    Height
    0.9 mm
    Length
    5 mm
    Output power
    0 dBm
    Operating frequency
    2.4 GHz
    Sensitivity
    - 93 dBm
    Series
    DA14583
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Bluetooth
    Product Type
    RF System on a Chip - SoC
    Technology
    Si
    Interface Type
    I2C, SPI, UART
    Package/Case
    QFN-40
    Core
    ARM Cortex M0
    Product Category
    RF System on a Chip - SoC
    Program Memory Size
    32 kB, 84 kB, 1 MB
    Packaging
    MouseReel
    RoHS
    Details
    Data RAM Size
    42 kB
    Maximum Clock Frequency
    16 MHz
    ADC Resolution
    10 bit
    Number of I/Os
    24 I/O
    Supply Voltage - Min
    2.35 V
    Supply Voltage - Max
    3.3 V
    Data Bus Width
    32 bit
    Brand
    Renesas / Dialog
    Data RAM Type
    SRAM
    Moisture Sensitive
    Yes
    Number of ADC Channels
    4 Channel
    Program Memory Type
    Flash
    Factory Pack Quantity Factory Pack Quantity
    5000
    Subcategory
    Wireless & RF Integrated Circuits
    Unit Weight
    117.300 mg
    Supply Current Receiving
    3.7 mA
    Supply Current Transmitting
    3.4 mA
    Number of Timers
    2 Timer
