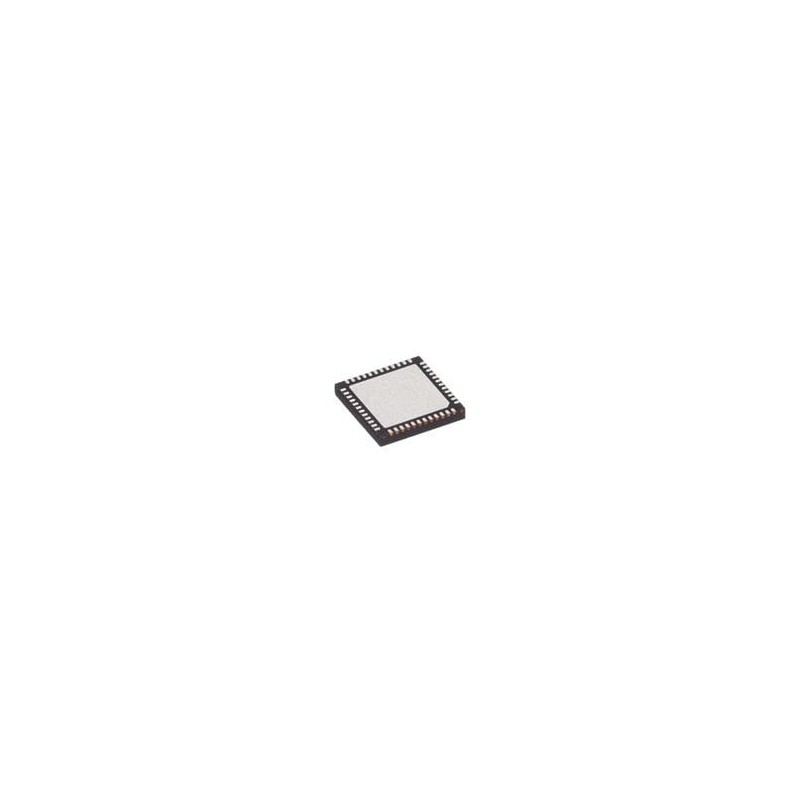

    1 pcs : TLSR8273F512ET48 - RF System on a Chip - SoC BLE 5.1, multi-antenna AoA/AoD, BLE Mesh, 802.15.4, RF4CE, HomeKit, Dual-Mo
    • 1 pcs : TLSR8273F512ET48 - RF System on a Chip - SoC BLE 5.1, multi-antenna AoA/AoD, BLE Mesh, 802.15.4, RF4CE, HomeKit, Dual-Mo

    1 pcs : TLSR8273F512ET48 - RF System on a Chip - SoC BLE 5.1, multi-antenna AoA/AoD, BLE Mesh, 802.15.4, RF4CE, HomeKit, Dual-Mo

    Allparts-UK/M/141-TLSR8273F512ET48
    Telink
    £13.22
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    TLSR827X Multi-Protocol IoT Solutions Telink TLSR827X Multi-Protocol IoT Solutions are state-of-the-art ultra-low-power (ULP) concurrent solutions at the ISM 2.4GHz band. The TLSR827X has full support for BLUETOOTH® LE 5.1, Bluetooth SIG Mesh, Zigbee, RF4CE, HomeKit, Thread, ANT, and 2.4GHz proprietary. The series is built around a 32-bit MCU running up to 48MHz. It has a 14-bit ADC with PGA, AMIC, DMIC, stereo audio output, 6-channel PWM, one quadrature decoder (QDEC), and flexible GPIO interfaces. Compared with TLSR825x, the TLSR827x series has a few salient features. It allows a flexible antenna element switch to fully support Bluetooth® LE 5.1, RF Inductor integrated enabling BOM Reduction, Audio Enhancement, WiFi PTA hardware interface.
    Product Details
    Telink
    Allparts-UK/M/141-TLSR8273F512ET48
    TLSR8273F512ET48
    10 Items

    Data sheet

    Manufacturer
    Telink
    Output power
    10 dBm
    Operating frequency
    2.4 GHz
    Sensitivity
    - 93 dBm
    Series
    TLSR827X
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    BLE 5.1, multi-antenna AoA/AoD, BLE Mesh, 802.15.4, RF4CE, HomeKit, Dual-Mode, 2.4G Proprietary
    Product Type
    RF System on a Chip - SoC
    Technology
    Si
    Interface Type
    I2C, I2S, SPI, UART, USB
    Package/Case
    QFN-48
    Core
    RISC
    Product Category
    RF System on a Chip - SoC
    Program Memory Size
    512 kB
    Packaging
    MouseReel
    RoHS
    Details
    Data RAM Size
    64 kB
    Maximum Clock Frequency
    32 MHz
    ADC Resolution
    14 bit
    Number of I/Os
    32 I/O
    Supply Voltage - Min
    1.8 V
    Supply Voltage - Max
    3.6 V
    Data Bus Width
    32 bit
    Brand
    Telink
    Data RAM Type
    SRAM
    Moisture Sensitive
    Yes
    Number of ADC Channels
    10 Channel
    Program Memory Type
    Flash
    Factory Pack Quantity Factory Pack Quantity
    3000
    Subcategory
    Wireless & RF Integrated Circuits
    Tradename
    8273
    Unit Weight
    100.330 mg
    Delivery Restrictions
    Product available only to OEM/EMS and design business customers. Product is not shipped to consumers in the EU or the UK
    Maximum Data Rate
    2 Mbps
    Supply Current Receiving
    4.6 mA
    Supply Current Transmitting
    4.9 mA
    Number of Timers
    3 x 32 bit
