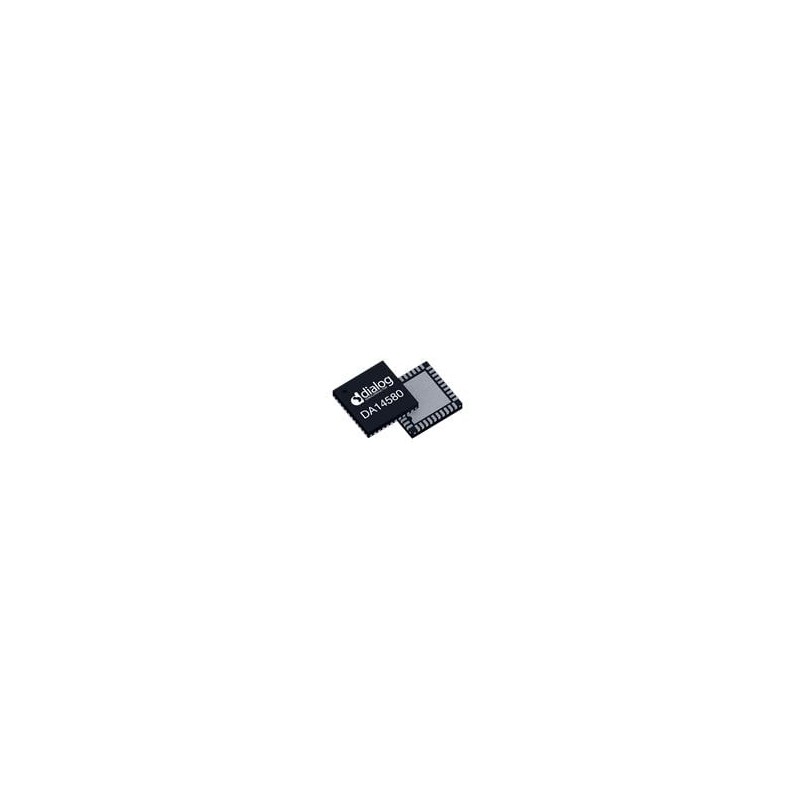

    1 pcs : DA14580-01AT2 - RF System on a Chip - SoC Bluetooth Low Energy 4.2 SoC with integrated ARM Cortex M0, memories and perip
    • 1 pcs : DA14580-01AT2 - RF System on a Chip - SoC Bluetooth Low Energy 4.2 SoC with integrated ARM Cortex M0, memories and perip

    1 pcs : DA14580-01AT2 - RF System on a Chip - SoC Bluetooth Low Energy 4.2 SoC with integrated ARM Cortex M0, memories and perip

    Allparts-UK/M/724-DA14580-01AT2
    £13.49
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    DA14580 Low Power Bluetooth Smart SoC Dialog Semiconductor DA14580 Low Power Bluetooth Smart SoC is the world's smallest, lowest power and most integrated Bluetooth® Smart solution. It gives you the freedom to develop the Bluetooth 4.1 applications you want to, with out compromise. As part of Dialog's SmartBond™ family, the DA14580 is easy to design-in and supports fully hosted applications. It is supported by a complete development environment and Dialog's SmartSnippets™ software and is available in fully-certified, small-form factor modules that accelerate time to market and without the need for extensive RF experience.Learn More
    Product Details
    Renesas / Dialog
    Allparts-UK/M/724-DA14580-01AT2
    DA14580-01AT2
    10 Items

    Data sheet

    Manufacturer
    Renesas Electronics
    Width
    5 mm
    Height
    0.9 mm
    Length
    5 mm
    Output power
    0 dBm
    Operating frequency
    2.4 GHz
    Sensitivity
    - 93 dBm
    Series
    DA14580
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Bluetooth
    Product Type
    RF System on a Chip - SoC
    Technology
    Si
    Interface Type
    I2C, SPI, UART
    Package/Case
    QFN-40
    Core
    ARM Cortex M0
    Product Category
    RF System on a Chip - SoC
    Program Memory Size
    32 kB, 84 kB
    Packaging
    MouseReel
    RoHS
    Details
    Data RAM Size
    42 kB
    Maximum Clock Frequency
    16 MHz
    ADC Resolution
    10 bit
    Number of I/Os
    24 I/O
    Supply Voltage - Min
    2.35 V
    Supply Voltage - Max
    3.3 V
    Data Bus Width
    32 bit
    Brand
    Renesas / Dialog
    Data RAM Type
    SRAM
    Moisture Sensitive
    Yes
    Number of ADC Channels
    4 Channel
    Factory Pack Quantity Factory Pack Quantity
    5000
    Subcategory
    Wireless & RF Integrated Circuits
    Unit Weight
    117.300 mg
    Supply Current Receiving
    3.7 mA
    Supply Current Transmitting
    3.4 mA
    Number of Timers
    2 Timer
