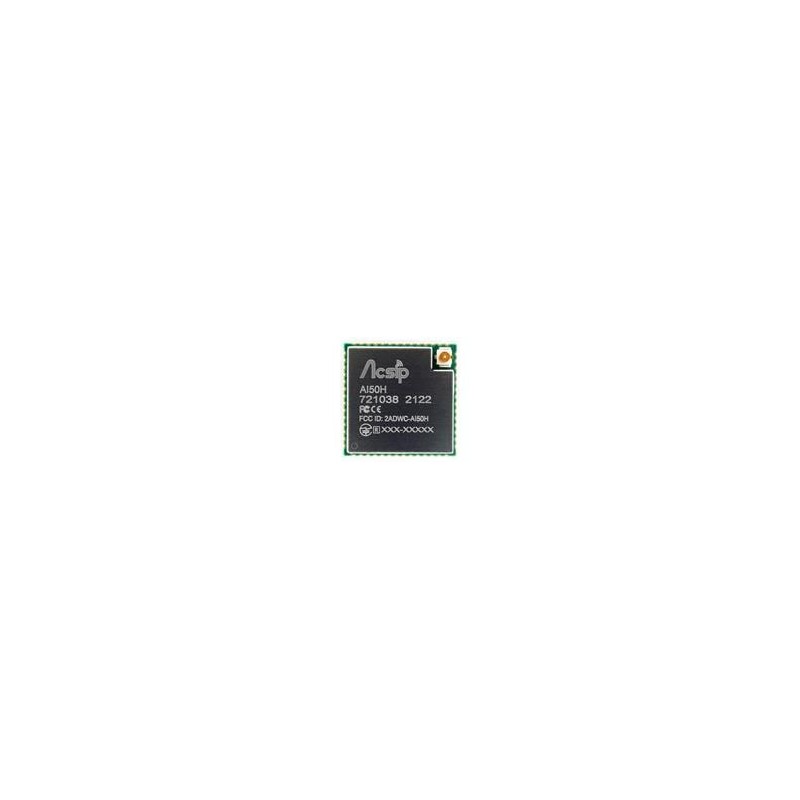

    1 pcs : AI50H - RF System on a Chip - SoC AI50H Module
    • 1 pcs : AI50H - RF System on a Chip - SoC AI50H Module

    1 pcs : AI50H - RF System on a Chip - SoC AI50H Module

    Allparts-UK/M/99-AI50H
    AcSiP
    £25.57
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    AI50H Stamping Type Module AcSiP AI50H Stamping Type Module integrates Arm® Cortex®-M4 microcontroller and LoRa/Sigfox modulation that provides high interference immunity and ultra-long range spread spectrum communication. This module operates an 863MHz to 930MHz frequency range, a 7.8KHz to 500KHz bandwidth range. The AI50H includes 2 DMA, 2 USART, 1 LPUART, 2 SPI, and 3 I2C peripherals. This module operates from -40°C to 85°C temperature range and can achieve a sensitivity of over -136dBm.
    Product Details
    AcSiP
    Allparts-UK/M/99-AI50H
    AI50H
    10 Items

    Data sheet

    Manufacturer
    AcSiP
    Width
    20 mm
    Height
    1.95 mm
    Length
    20 mm
    Operating frequency
    863 MHz to 930 MHz
    Sensitivity
    - 136 dBm
    Series
    LoRa
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Operating Temperature Range
    - 40 to + 85 C
    Product Type
    RF System on a Chip - SoC
    Technology
    Si
    Interface Type
    DMA, I2C, LPUART, SPI, USART
    Package/Case
    LGA-58
    Core
    ARM Coretex M4
    Product Category
    RF System on a Chip - SoC
    Program Memory Size
    256 kB
    Packaging
    Bag
    RoHS
    Details
    Data RAM Size
    64 kB
    Maximum Clock Frequency
    48 MHz
    Number of I/Os
    37 I/O
    Supply Voltage - Min
    1.8 V
    Supply Voltage - Max
    3.6 V
    Data Bus Width
    32 bit
    Brand
    AcSiP
    Data RAM Type
    RAM
    Moisture Sensitive
    Yes
    Program Memory Type
    Flash
    Factory Pack Quantity Factory Pack Quantity
    2
    Subcategory
    Wireless & RF Integrated Circuits
    Development Kit
    EK-ST50H
    Maximum Data Rate
    0.013 kbps to 17.4 kbps, 0.6 kbps to 300 kbps
    Supply Current Receiving
    6.5 mA
    Supply Current Transmitting
    128 mA
