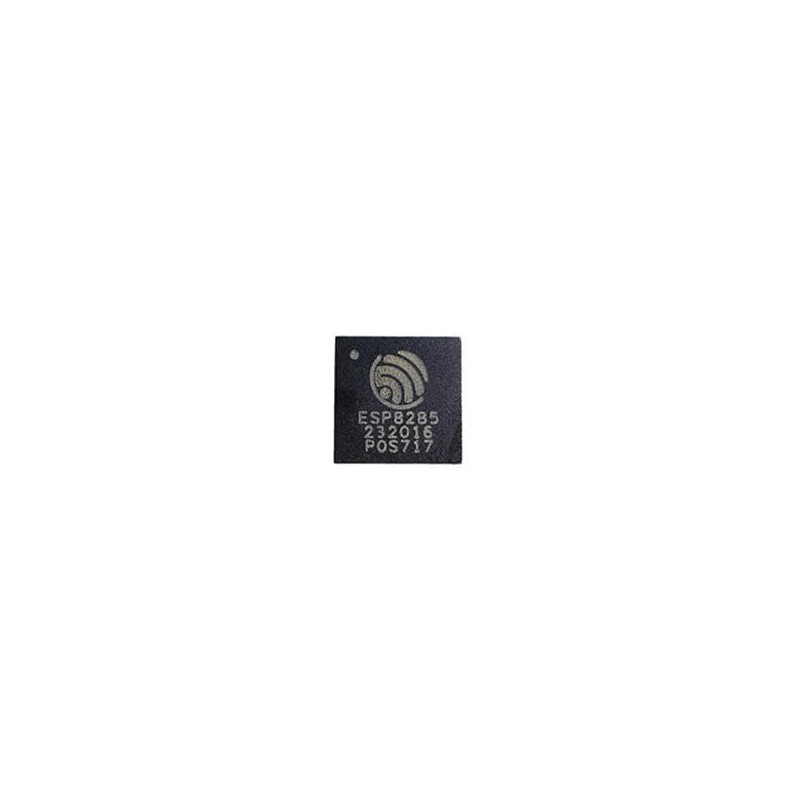

    1 pcs : ESP8285H16 - RF System on a Chip - SoC 2MB SPI Flash Temp -40 +105C
    • 1 pcs : ESP8285H16 - RF System on a Chip - SoC 2MB SPI Flash Temp -40 +105C

    1 pcs : ESP8285H16 - RF System on a Chip - SoC 2MB SPI Flash Temp -40 +105C

    Allparts-UK/M/356-ESP8285H16
    £11.36
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    ESP82x Single-Core Wi-Fi SoCs Espressif Systems ESP82x Wi-Fi SoCs (System-on-Chip) offer complete, self-contained Wi-Fi networking solutions for IoT (Internet of Things) applications. The ESP8266 and ESP8285 SoCs integrate a Tensilica L106 32-bit Microcontroller Unit (MCU), which features extra-low power consumption and 16-bit RSIC reaching a maximum clock speed of 160MHz. With the Real-Time Operation System (RTOS) enabled and a functional Wi-Fi stack, about 80% of the processing power is available for user application programming and development.
    Product Details
    Espressif Systems
    Allparts-UK/M/356-ESP8285H16
    ESP8285H16
    10 Items

    Data sheet

    Manufacturer
    ESPRESSIF
    Width
    5 mm
    Height
    0.85 mm
    Length
    5 mm
    Output power
    19 dBm
    Operating frequency
    2.4 GHz
    Sensitivity
    - 70 dBm
    Series
    ESP8285
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Wi-Fi
    Product Type
    RF System on a Chip - SoC
    Technology
    Si
    Interface Type
    I2C, I2S, SDIO, SPI, UART, WiFi
    Package/Case
    QFN-32
    Core
    L106
    Product Category
    RF System on a Chip - SoC
    Program Memory Size
    2 MB
    Packaging
    MouseReel
    RoHS
    Details
    Maximum Clock Frequency
    160 MHz
    Supply Voltage - Min
    2.7 V
    Supply Voltage - Max
    3.6 V
    Data Bus Width
    32 bit
    Brand
    Espressif Systems
    Moisture Sensitive
    Yes
    Processor Series
    L106 Diamond
    Program Memory Type
    Flash
    Factory Pack Quantity Factory Pack Quantity
    5000
    Subcategory
    Wireless & RF Integrated Circuits
    Unit Weight
    722.643 mg
    Maximum Data Rate
    72.2 Mbps
    Supply Current Receiving
    73 mA
    Supply Current Transmitting
    197 mA
