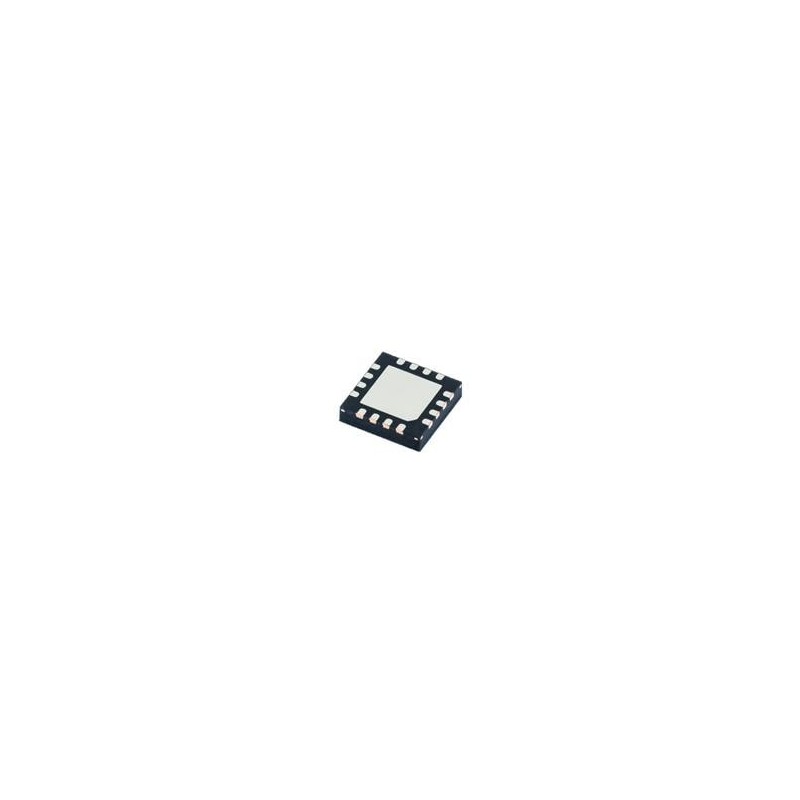

1 pcs : HMC1118LP3DETR - RF Switch ICs SPDT Main Ver. w/27dBm handling a. term
    • 1 pcs : HMC1118LP3DETR - RF Switch ICs SPDT Main Ver. w/27dBm handling a. term

    1 pcs : HMC1118LP3DETR - RF Switch ICs SPDT Main Ver. w/27dBm handling a. term

    Allparts-UK/M/584-HMC1118LP3DETR
    £45.93
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    HMC1118 Non-Reflective Silicon Switches Analog Devices HMC1118 Non-Reflective Silicon Switches offer high resolution (>,48dB) within the operating range of 9KHz to 13GHz. The HMC1118 features low insertion loss (0.68dB up to 8.0GHz) and 7.5µs settling time with a 0.05dB margin of final RFOUT. The operating voltage is 0V/3.3V for positive control and -2.5V for negative control. These silicon Single-Pole, Double-Throw (SPDT) switches are available in a 3mm x 3mm surface-mount LFCSP package.
    Product Details
    Allparts-UK/M/584-HMC1118LP3DETR
    HMC1118LP3DETR
    10 Items

    Data sheet

    Manufacturer
    Analog Devices Inc.
    Series
    HMC1118
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Product Type
    RF Switch ICs
    Package/Case
    LFCSP-16
    Product Category
    RF Switch ICs
    Packaging
    MouseReel
    RoHS
    Details
    Supply Voltage - Min
    3 V
    Supply Voltage - Max
    3.6 V
    Brand
    Analog Devices
    Moisture Sensitive
    Yes
    Factory Pack Quantity Factory Pack Quantity
    500
    Subcategory
    Wireless & RF Integrated Circuits
    Unit Weight
    20.300 mg
    Operating Supply Current
    20 uA
