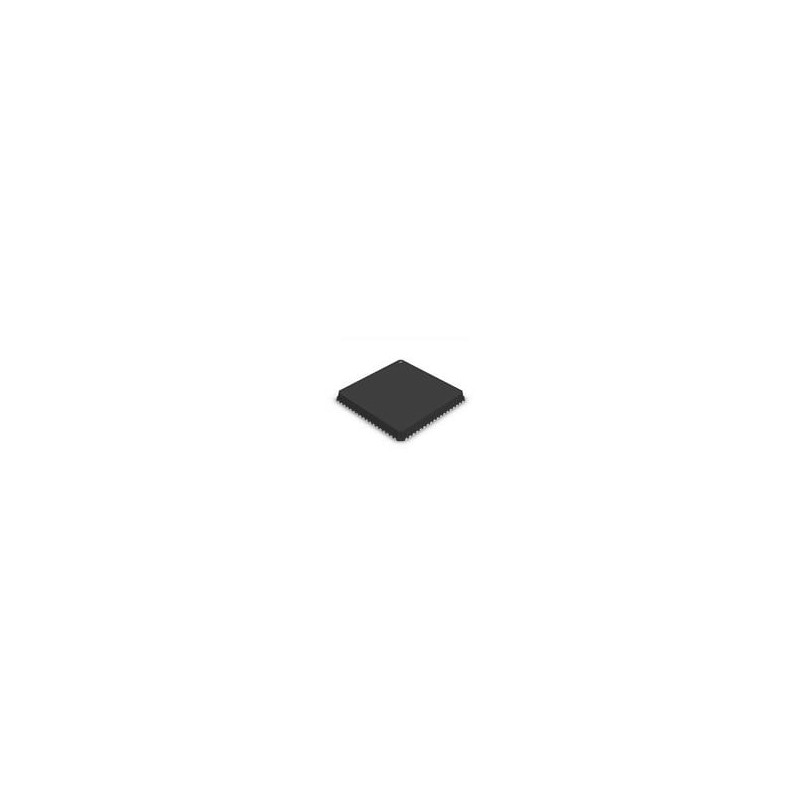

    1 pcs : AD8285WBCPZ - RF Front End Radar Receive Path AFE
    • 1 pcs : AD8285WBCPZ - RF Front End Radar Receive Path AFE

    1 pcs : AD8285WBCPZ - RF Front End Radar Receive Path AFE

    electronicparts-UK/M/584-AD8285WBCPZ
    £53.44
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    AD8285 Radar Receive Path AFE Analog Devices Inc. AD8285 Radar Receive Path Analog Front End (AFE) features four channels of a low noise preamplifier (LNA) with a programmable gain amplifier (PGA) and an anti-aliasing filter (AAF) plus one direct-to-ADC channel, all integrated with a single 12-bit analog-to-digital converter (ADC). Each channel features a gain range of 16dB to 34dB in 6dB increments and an ADC with a conversion rate of up to 72MSPS.
    Product Details
    Analog Devices
    electronicparts-UK/M/584-AD8285WBCPZ
    AD8285WBCPZ
    10 Items

    Data sheet

    Manufacturer
    Analog Devices Inc.
    Operating frequency
    12 MHz
    Series
    AD8285
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Radar
    Product Type
    RF Front End
    Technology
    Si
    Package/Case
    LFCSP-72
    Product Category
    RF Front End
    Packaging
    Tray
    RoHS
    Details
    Brand
    Analog Devices
    Moisture Sensitive
    Yes
    Operating Supply Voltage
    1.8 V, 3.3 V
    Factory Pack Quantity Factory Pack Quantity
    168
    Subcategory
    Wireless & RF Integrated Circuits
    Unit Weight
    260 mg
    Operating Supply Current
    130 mA
    NF - Noise Figure
    12.7 dB
