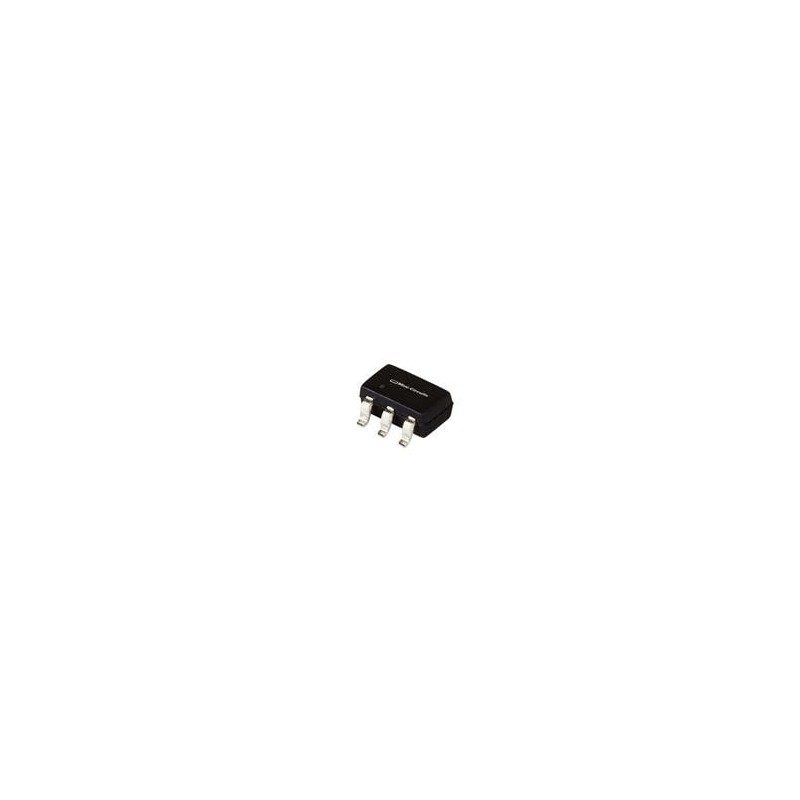

    1 pcs : PSA2-6+ - RF Amplifier SMT Low Noise Amplifier, DC - 7 GHz, 50?
    • 1 pcs : PSA2-6+ - RF Amplifier SMT Low Noise Amplifier, DC - 7 GHz, 50?

    1 pcs : PSA2-6+ - RF Amplifier SMT Low Noise Amplifier, DC - 7 GHz, 50?

    Allparts-UK/M/139-PSA2-6+
    £11.37
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    PSA2-6+ MMIC SMT Low Noise Amplifier Mini-Circuits PSA2-6+ MMIC SMT Low Noise Amplifier is a single wideband amplifier that covers a DC to 7000MHz frequency range, which is ideal for 5G MIMO radio and radar systems. The amplifier features a low 2.4dB noise figure and a low 15mA operating current suitable for power-sensitive applications. The PSA2-6+ amplifier also provides a high 15.2dB gain rating to limit the noise figure contribution. The Mini-Circuits PSA2-6+ MMIC SMT Low Noise Amplifier is available in a miniature SOT-363 package to save space in dense PCB layouts. The amplifier is ideal for communications applications, including broadband test and measurement equipment.
    Product Details
    Mini-Circuits
    Allparts-UK/M/139-PSA2-6+
    PSA2-6+
    10 Items

    Data sheet

    Manufacturer
    Mini-Circuits
    Operating frequency
    0 Hz to 7 GHz
    Series
    PSA2
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Low Noise Amplifiers
    Product Type
    RF Amplifier
    Technology
    GaAs
    Package/Case
    SOT-363-6
    Gain
    22.2 dB
    Product Category
    RF Amplifier
    Packaging
    Cut Tape
    RoHS
    Details
    Brand
    Mini-Circuits
    Operating Supply Voltage
    5 V
    Factory Pack Quantity Factory Pack Quantity
    500
    Subcategory
    Wireless & RF Integrated Circuits
    Development Kit
    TB-PSA2-6C+
    Pd - Power Dissipation
    200 mW
    Operating Supply Current
    15 mA
    NF - Noise Figure
    3.2 dB
