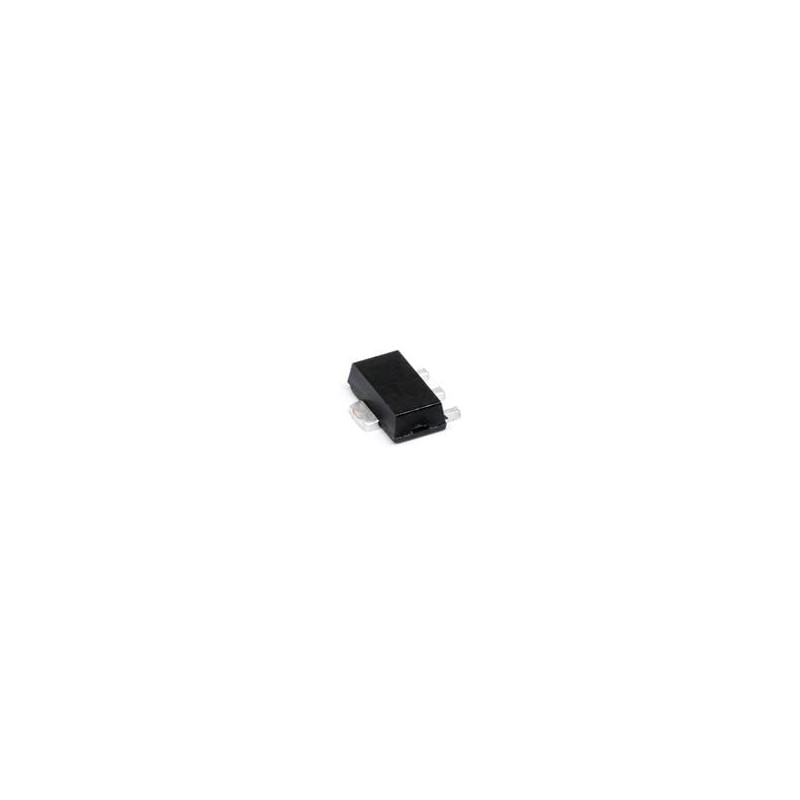

1 pcs : HMC589AST89E - RF Amplifier MMIC AMPLIFIER, DC - 4 GHzFor
    • 1 pcs : HMC589AST89E - RF Amplifier MMIC AMPLIFIER, DC - 4 GHzFor

    1 pcs : HMC589AST89E - RF Amplifier MMIC AMPLIFIER, DC - 4 GHzFor

    Allparts-UK/M/584-HMC589AST89E
    £28.22
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    HMC589A Gain Block Amplifiers Analog Devices HMC589A features InGaP HBT Gain Block MMIC SMT amplifiers that operate in the DC to 4GHz range. The HMC589A amplifiers provide 20dB gain and +33dBm output IP3 at 1GHz while only requiring 82mA from a single positive supply. The HMC589A InGaP HBT gain block offers excellent output power and gains stability over temperature. Designers can use the HMC589A as a cascadable 50Ω RF or IF gain stage. The amplifiers can also be used as a LO or PA driver with up to +19dBm P1dB output power for cellular/3G, FWA, CATV, microwave radio, and test equipment applications.
    Product Details
    Allparts-UK/M/584-HMC589AST89E
    HMC589AST89E
    10 Items

    Data sheet

    Manufacturer
    Analog Devices Inc.
    Operating frequency
    0 Hz to 4 GHz
    Series
    HMC589A
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Gain Block Amplifiers
    Product Type
    RF Amplifier
    Technology
    GaAs InGaP
    Package/Case
    SOT-89-3
    Gain
    21 dB
    Product Category
    RF Amplifier
    Packaging
    Cut Tape
    RoHS
    Details
    Brand
    Analog Devices
    Operating Supply Voltage
    5 V
    Factory Pack Quantity Factory Pack Quantity
    500
    Subcategory
    Wireless & RF Integrated Circuits
    Unit Weight
    1.430 g
    Operating Supply Current
    82 mA
    NF - Noise Figure
    4 dB
