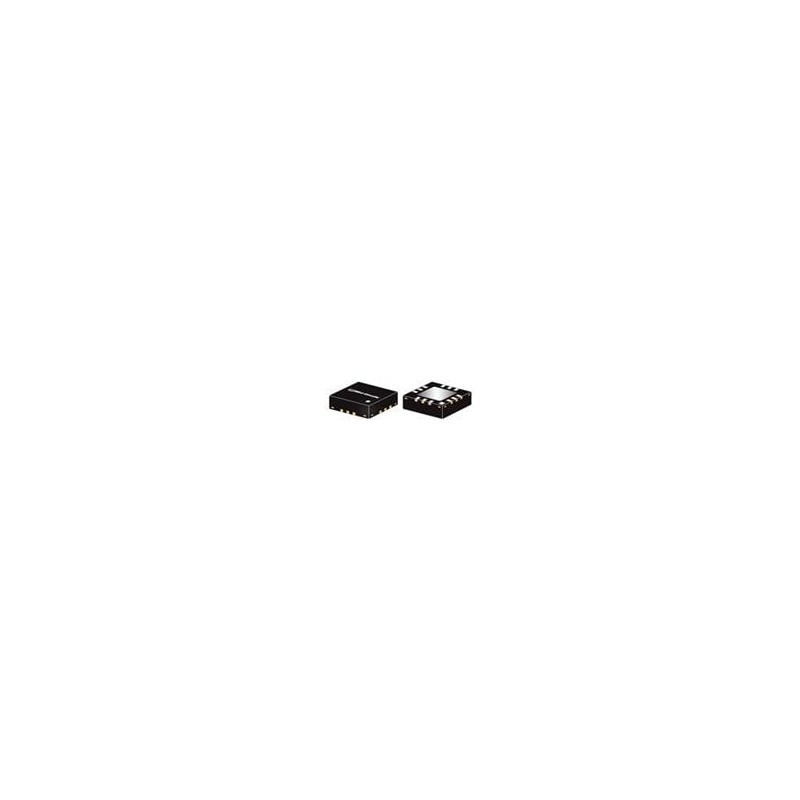

1 pcs : TSS-13LN+ - RF Amplifier MMIC AMPLIFIER-SURFACE MOUNT
    • 1 pcs : TSS-13LN+ - RF Amplifier MMIC AMPLIFIER-SURFACE MOUNT

    1 pcs : TSS-13LN+ - RF Amplifier MMIC AMPLIFIER-SURFACE MOUNT

    Allparts-UK/M/139-TSS-13LN
    £35.37
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    TSS RF Amplifiers Mini-Circuits TSS RF Amplifiers are wideband amplifiers fabricated using E-PHEMT/InGaAs-PHEMT technology. These amplifiers feature shut-down, low noise figure, good thermal performance, good gain, good input and output return loss, and are RoHS compliant. The TSS RF amplifiers offer 3V to 15V operating supply voltage range and 0.7W to 3.3W total power dissipation range. These amplifiers are available in the 3mm × 3mm 12-lead/8-lead MCLP package. The TSS RF amplifiers are used in the applications like cellular, base station infrastructures, satellite systems, and test and measurement systems.
    Product Details
    Allparts-UK/M/139-TSS-13LN
    TSS-13LN+
    10 Items

    Data sheet

    Manufacturer
    Mini-Circuits
    Operating frequency
    1 MHz to 1 GHz
    Series
    TSS
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    CATV Amplifiers
    Product Type
    RF Amplifier
    Gain
    20.9 dB
    Product Category
    RF Amplifier
    Packaging
    MouseReel
    RoHS
    Details
    Supply Voltage - Min
    3 V
    Supply Voltage - Max
    5 V
    Brand
    Mini-Circuits
    Operating Supply Voltage
    3 V to 5 V
    Factory Pack Quantity Factory Pack Quantity
    1000
    Subcategory
    Wireless & RF Integrated Circuits
    Operating Supply Current
    142 mA
    NF - Noise Figure
    1.2 dB
