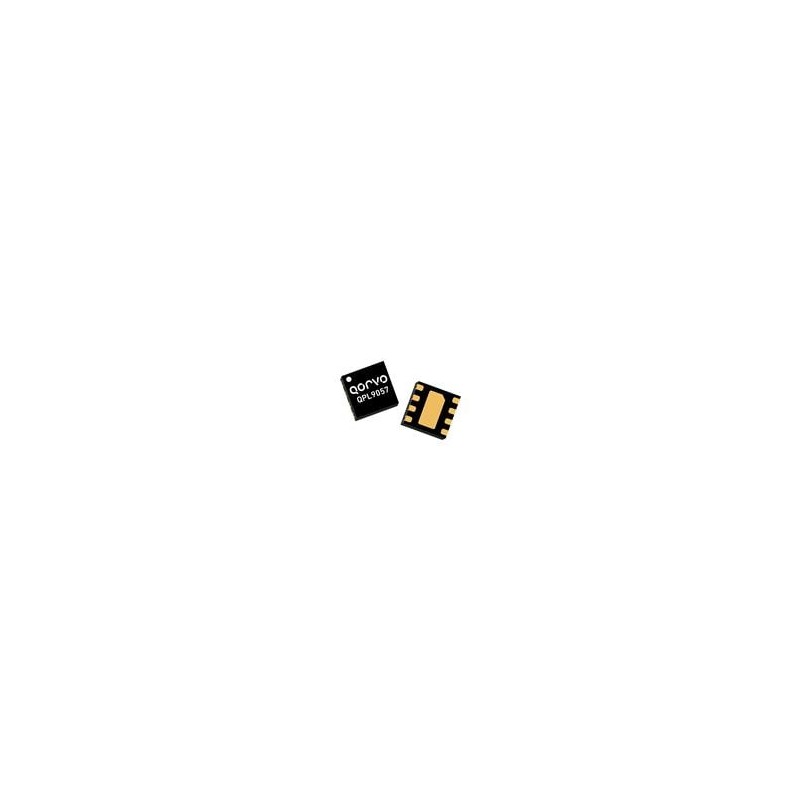

    1 pcs : QPL9057TR7 - RF Amplifier 0.6-4.2 GHz Ultra-LNA
    • 1 pcs : QPL9057TR7 - RF Amplifier 0.6-4.2 GHz Ultra-LNA

    1 pcs : QPL9057TR7 - RF Amplifier 0.6-4.2 GHz Ultra-LNA

    Allparts-UK/M/772-QPL9057TR7
    Qorvo
    £19.72
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    QPL9057 Flat Gain Amplifiers Qorvo QPL9057 Flat Gain Amplifiers are designed to provide a flat 2.4dB gain over a wide bandwidth from 1.5GHz to 3.8GHz. These gain amplifiers provide 22.8dB gain, +32dBm OIP3 at a 50mA bias setting and 0.54dB noise figure. The QPL9057 gain amplifiers require five external components to operate from a single positive supply as they are internally matched using a high-performance E-pHEMT process. The single positive supply includes an RF choke, blocking/bypass capacitors, and a bias resistor going to pin 1.
    Product Details
    Qorvo
    Allparts-UK/M/772-QPL9057TR7
    QPL9057TR7
    10 Items

    Data sheet

    Manufacturer
    Qorvo
    Operating frequency
    600 MHz to 4.2 GHz
    Series
    QPL9057
    Maximum Operating Temperature
    + 105 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Low Noise Amplifiers
    Product Type
    RF Amplifier
    Package/Case
    DFN-8
    Gain
    22.8 dB
    Product Category
    RF Amplifier
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Qorvo
    Operating Supply Voltage
    5 V
    Factory Pack Quantity Factory Pack Quantity
    2500
    Subcategory
    Wireless & RF Integrated Circuits
    Development Kit
    QPL9057EVB1
    Unit Weight
    238.417 mg
    Part # Aliases
    QPL9057
    Operating Supply Current
    50 mA
    NF - Noise Figure
    0.54 dB
