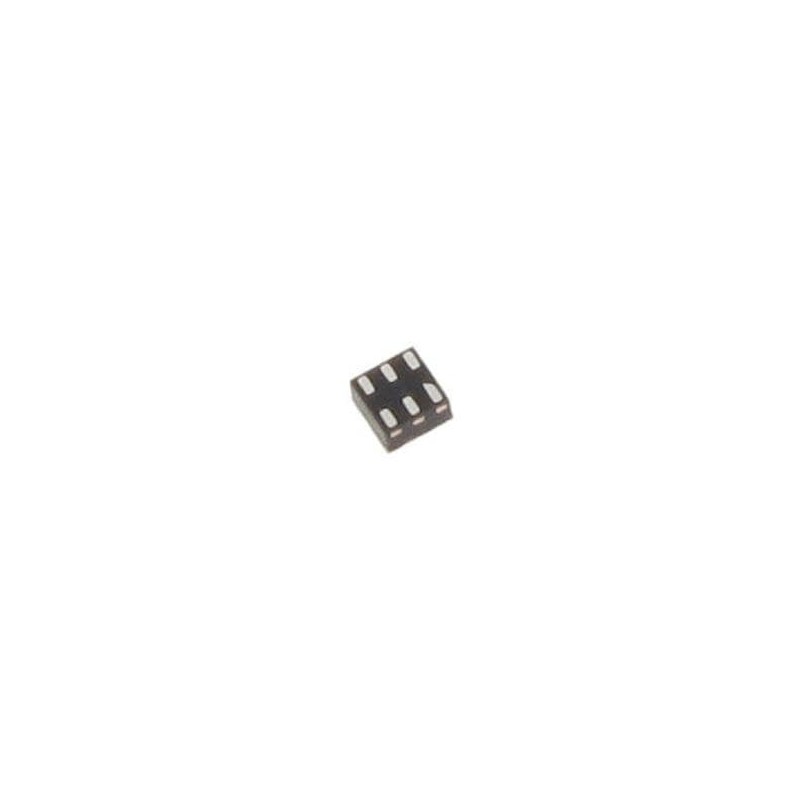

1 pcs : BGU7008,115 - RF Amplifier Low Noise Amplifier
    • 1 pcs : BGU7008,115 - RF Amplifier Low Noise Amplifier

    1 pcs : BGU7008,115 - RF Amplifier Low Noise Amplifier

    Allparts-UK/M/771-BGU7008,115
    £10.53
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    BGU700x SiGe:C Low-Noise Amplifier MMICs NXP Semiconductors BGU700x Silicon Germanium Carbon (SiGe:C) Low-Noise Amplifier (LNA) Monolithic Microwave Integrated Circuits (MMICs) provide strong reception of weak GPS signals by suppressing cellular and WLAN transmit signals. Linearity for these LNAs improves with a 10dB better IP3 under -40dBm to -20dBm jamming conditions, while NF remains below 1dB. The BGU700x devices require only one external matching inductor and one external decoupling capacitor, and feature and extremely compact SOT886 package, reducing BOM costs and PCB space requirements.
    Product Details
    Allparts-UK/M/771-BGU7008,115
    BGU7008,115
    10 Items

    Data sheet

    Manufacturer
    NXP
    Operating frequency
    1.559 GHz to 1.61 GHz
    Series
    BGU7008
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Type
    Low Noise Amplifiers
    Product Type
    RF Amplifier
    Package/Case
    XSON-6
    Gain
    18.5 dB
    Product Category
    RF Amplifier
    Packaging
    MouseReel
    RoHS
    Details
    Supply Voltage - Min
    1.5 V
    Supply Voltage - Max
    2.85 V
    Brand
    NXP Semiconductors
    Operating Supply Voltage
    1.8 V
    Factory Pack Quantity Factory Pack Quantity
    5000
    Subcategory
    Wireless & RF Integrated Circuits
    Unit Weight
    17 mg
    Part # Aliases
    934065357115
    Operating Supply Current
    4.8 mA
    NF - Noise Figure
    0.85 dB
