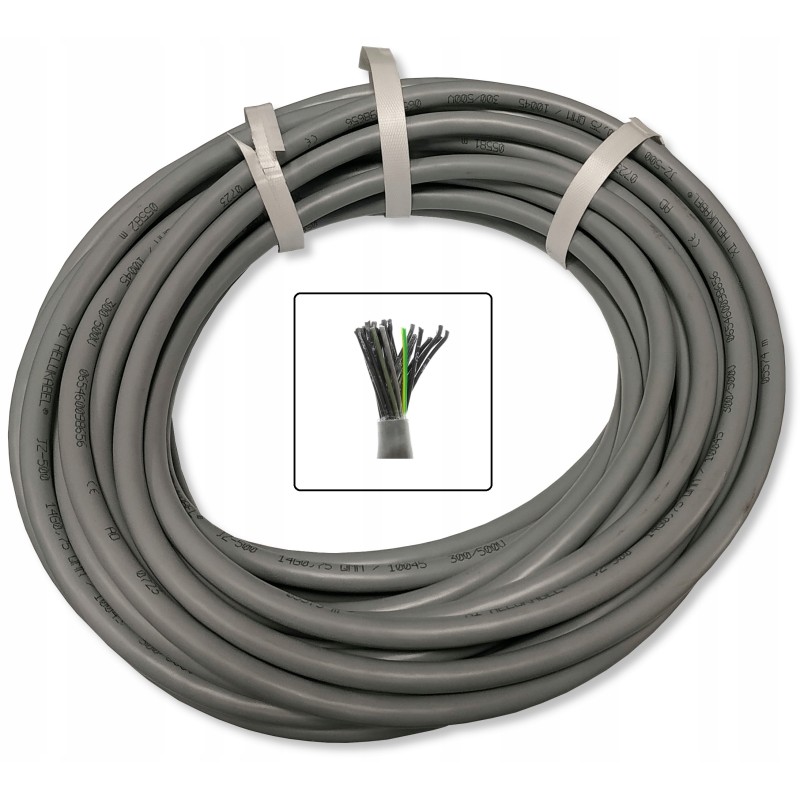

Remote control cassette cable 14x0 75

JZ-500 control cable 14 G0.75 300/500V - Price per 1m For 6-button control box [1990]

Used in control boxes in the machinery and metallurgical industries, signaling and measurements at conveyors and technological lines.

The veins are numbered in such a way that even a small exposure of the outer tire allows the location of the vein: to avoid mistakes, the markings are underlined.

A specially selected PVC mixture guarantees excellent flexibility and rational, quick installation.

CE - the product complies with the guidelines of the Low Voltage Directive 2006/95/EG

Technical Specification: Manufacturer: HELUKABEL

Product series: JZ-500

PVC core insulation

PVC outer sheath material

Number of cores 14

Core class Class 5 = flexible

Voltage rated U [V] 500

Rated voltage U0 [V] 300

Approximate external diameter [mm] 10.6

Rated conductor cross-section [mm2] 0.75

Protective conductor YES

Permissible cable temperature for flexible connections [°C] up to 80

Permissible temperature cable for movable connections [°C] from -15

Permissible temperature of a permanently laid cable [°C] up to 80

Permissible temperature of a permanently laid cable [°C] from -40

Used for this type of remote controls [1991] [1992] : :
