LED interrupter relay 4541 reg 50 12v 10a

Video of the operation of the system on YouTube

https://www.youtube.com/user/uskomostroda/videos

Adjustable Time Relay

Traditional Cyclic Interrupter - 50/50 times, i.e. the same amount of relay work and the same amount of break

If we set e.g. 60 sec then the relay works for 60 seconds and there is a break for 60 seconds

There is a similar extended circuit breaker in another auction, but with 2 adjustable times - work and break

Relay contacts 10A NO NC (make/break)

The generator and the heart of the system is CD4541

potentiometer and DIP -y for adjusting the work and break times

The times are in 4 sub-ranges

generally from 0.5 to 3500 sec for the relay's work and break

Principle of operation of the system

After switching on the 12V power supply, the system starts cyclical operation on off....

___/===\___/===\___/===\___/===

2 operation control diodes

Green - relay operation

The system is very simple to connect, 12V power supply cube

What you buy and what you get

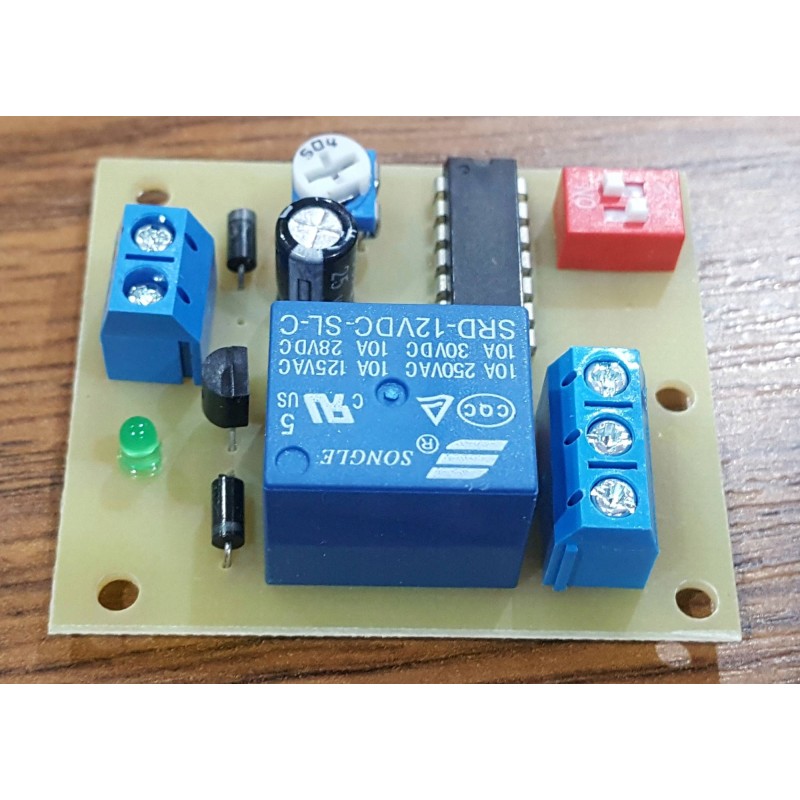

Assembled running PCB without housing

relay contact 1x NONC
