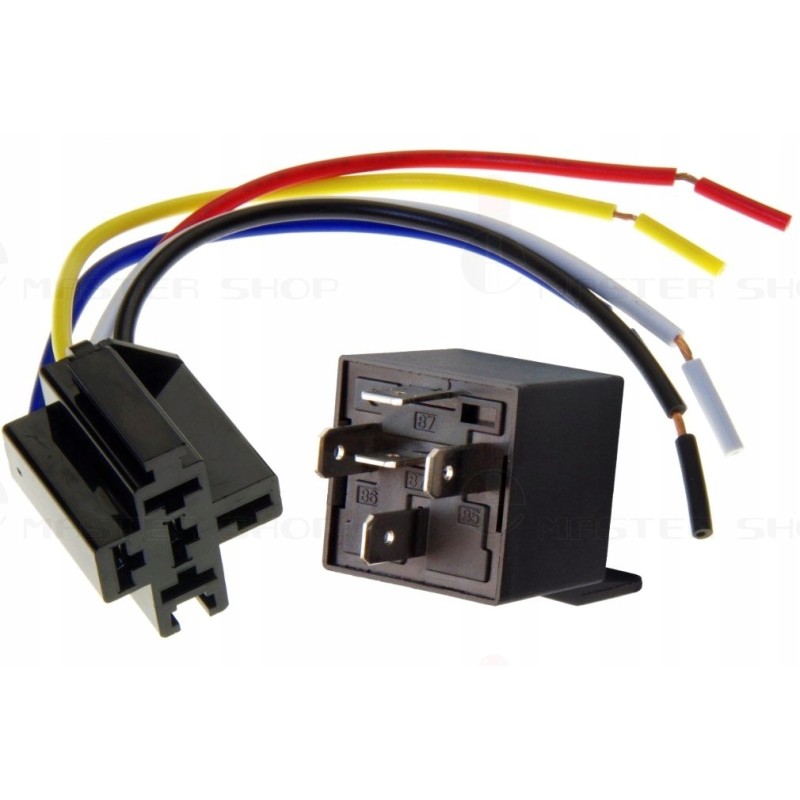

Automatic daytime light switch module and relay

AUTOMATIC DAYTIME LIGHT SWITCH WITH RELAY SOCKETBy using our kit, you can very easily connect the daytime running lights so that they turn on automatically when you turn the key in the ignition and turn off when you turn off the engine or turn on the dipped headlights.

Instructions for connecting the relay to the DRL lights :

PIN no. 30 - connect to the plus (+) of the ignition switch

PIN no. 85 - connect to ground

PIN no. 86 - connect to the plus (+) of the low beam lights

PIN no. 87 - cut off and insulate

PIN no. 87a - connect to the plus (+) of the daytime running lights

DON'T BUY A CAT IN A BAG! Are you tired of being disappointed when the reality differs from your expectations?

With us you can see what the product you want to buy actually looks like

Enter to the browser:

--->,>,>, www.e-mastershop.pl/40a <,<,<,---and see the product photos in HD quality.

You can be sure that what you buy from us , is what you will receive!

Your satisfaction is the most important thing for us!

Technical data:

Coil control: 12V

Maximum current: 40A

Number of connectors: 5 pcs.

Width of connectors: 6.3mm

Cross-section of working wires : 1.5mm^2

Cross-section of control cables: 0.75mm^2

Cable length: 14cm

By purchasing from us you will receive: normally open and normally closed relay

relay socket with lead-out cables
