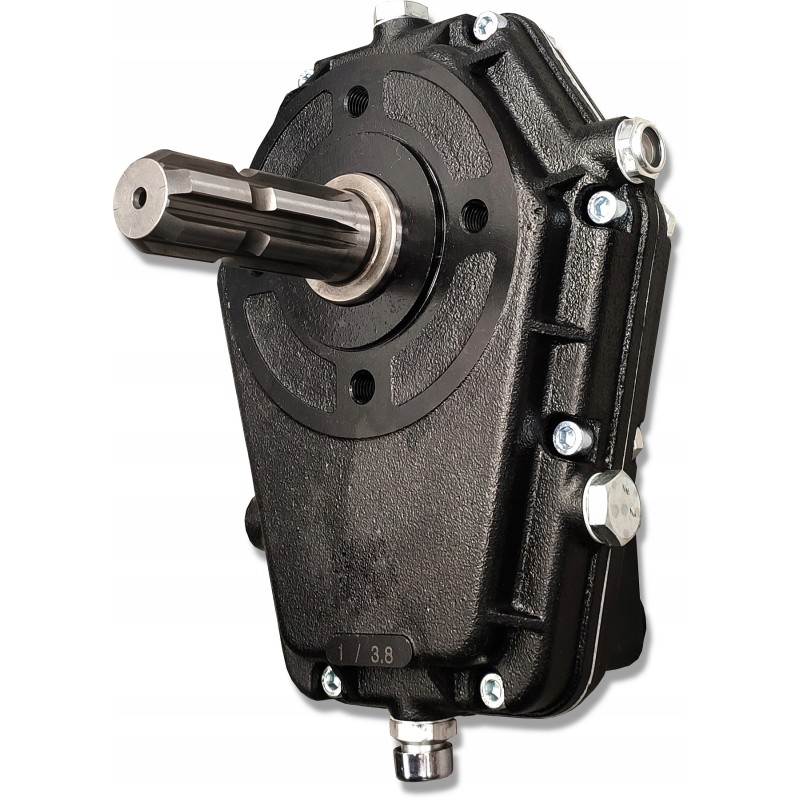

Reinforced multiplier, PTO gear to the pump

MULTIPLICATOR WITH RATIO 1:3.8​SKRAW-MET CODE: [2622]Power take-off shaft gear with a 1.3/8' 6-part profiled shaft. The gearbox is delivered without oil. It is ideal for driving PISTON and 2-WAY GEAR hydraulic pumps in forestry machines, construction machines and many tractors, including C-330, C-360, C-385, ZETOR, MF and others with Z8 MULTIPLE SPLINE. ×32×36.

The gearbox is mounted on the 1.3/8' PTO shaft using a latch, this solution means that it can be mounted or removed quite quickly if it turns out that we need a PTO shaft to connect the PTO shaft from another machine .

Gear dedicated to driving pumps with a flange suitable for commercial vehicles.

​

Technical data of the gear: Gear ratio: 1:3.8

Maximum power consumption (kW): 37

Shaft type (photo above): PTO 1.3/8' DIN9611

Type of drive shaft journal (photo): B8×32×36 ISO 14 (DIN 5462)

Maximum number of revolutions (rpm):

Input: 540

Output: 2052

Torque (da Nm):

Input: 66.0

Output: 16.6

Material:

body - cast iron

gears - steel

Requires filling with gear oil.

Recommended oil: SAE 90

Has a viewfinder for checking gear oil level.

When using for the first time, to increase the durability of the gear, it is recommended to change the oil after the first 50 operating hours.

We have double-direction gear pumps matching this gear on other auctions.​
