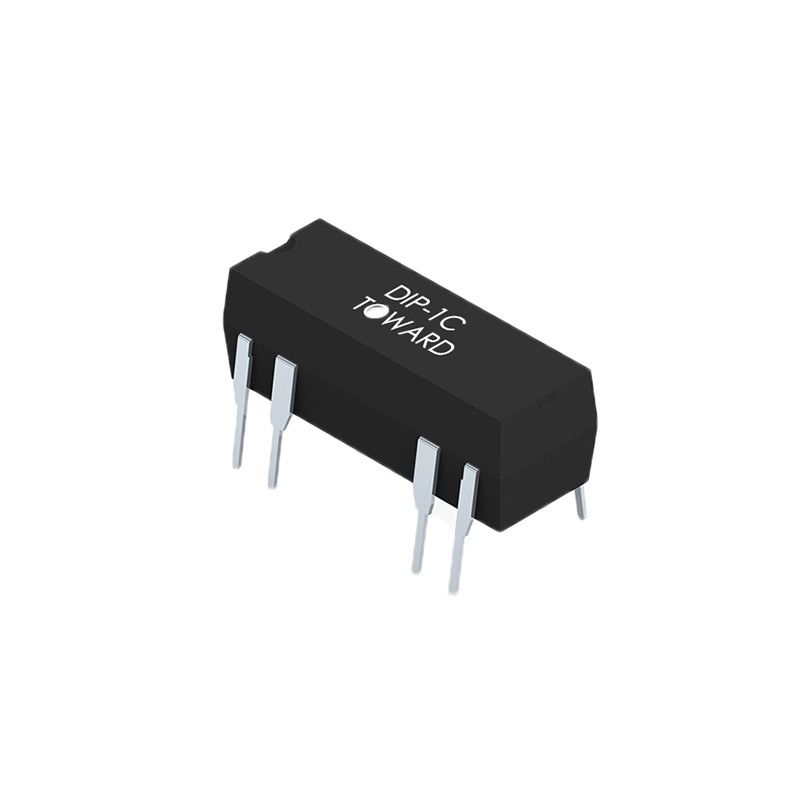

1 pcs : DIP-1C05 - 200V/0.5A REED RELAY, 1 FORM C,
    • 1 pcs : DIP-1C05 - 200V/0.5A REED RELAY, 1 FORM C,

    1 pcs : DIP-1C05 - 200V/0.5A REED RELAY, 1 FORM C,

    1electronicpartsUK3008DIP1C05ND
    £24.59
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Product Details
    1electronicpartsUK3008DIP1C05ND
    DIP-1C05
    3 Items

    Data sheet

    Manufacturer
    Bright Toward Industrial Co., Ltd.
    Operating temperature
    -20°C ~ 85°C
    Part status
    Active
    Contact material
    -
    Operate time
    1.5 ms
    Series
    DIP
    Mounting Type
    Through Hole
    Coil Resistance
    200 Ohms
    Switching Voltage
    100VAC, 100VDC - Max
    Features
    -
    Coil Voltage
    5VDC
    Termination Style
    PC Pin
    Packaging
    Tube
    Contact Form
    SPDT (1 Form C)
    Contact Rating (Current)
    200 mA
    Coil Current
    25 mA
    Coil Type
    Non Latching
    Seal Rating
    -
    Must Operate Voltage
    3.75 VDC
    Must Release Voltage
    0.6 VDC
    Release Time
    2 ms
