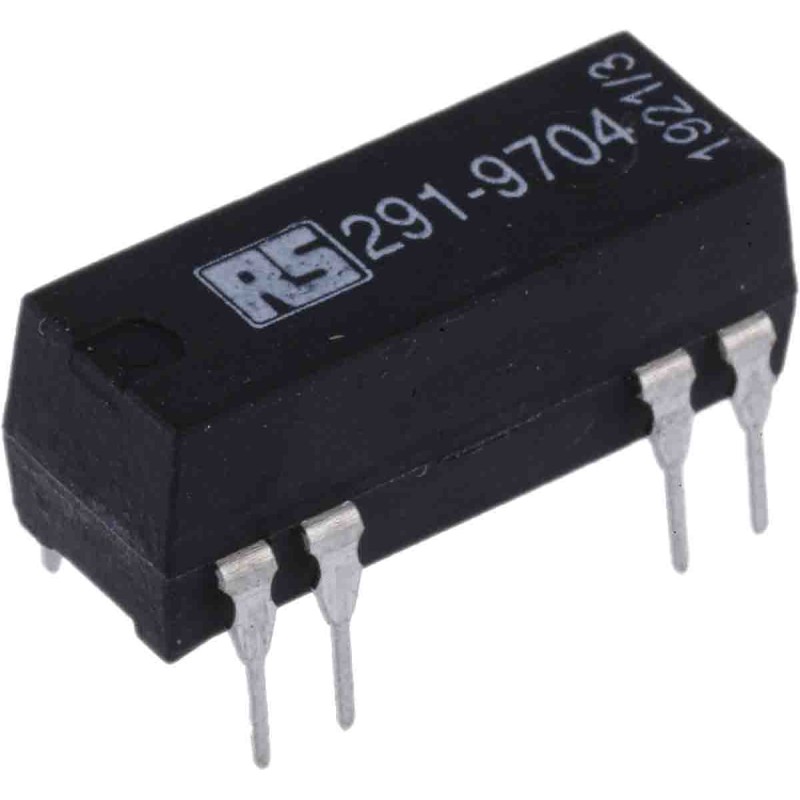

1 pcs - RS PRO PCB Mount Reed Relay, 5V dc Coil, SPDT, 175V dc Max, 0.25 A Max, 200Ω
    • 1 pcs - RS PRO PCB Mount Reed Relay, 5V dc Coil, SPDT, 175V dc Max, 0.25 A Max, 200Ω
    • 1 pcs - RS PRO PCB Mount Reed Relay, 5V dc Coil, SPDT, 175V dc Max, 0.25 A Max, 200Ω

    1 pcs - RS PRO PCB Mount Reed Relay, 5V dc Coil, SPDT, 175V dc Max, 0.25 A Max, 200Ω

    Allparts-UK/15/R/291-9704
    RS PRO
    £31.80
    Delivery: 4-7 business days
    Quantity
    359 Items

    Product Details
    RS PRO
    Allparts-UK/15/R/291-9704
    RS PRO
    359 Items

    Data sheet

    Manufacturer
    RS PRO
    Dimensions
    19.3 x 6.4 x 5.1mm
    Height
    5.1mm
    Length
    19.3mm
    Depth
    6.4mm
    A-Supplier
    Allparts-UK-R
    Terminal Type
    Through Hole
    Maximum Operating Temperature
    +70°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -20°C
    Standards Met
    RoHS Compliant
    Contact Configuration
    SPDT
    Life
    100000000 (Electrical) cycles
    Coil Resistance
    200Ω
    Coil Power
    125mW
    Isolation Coil To Contact
    1.5kV dc
    Maximum Switching Voltage AC
    175V ac
    Operating Temperature Range
    -20 - +70°C
    Maximum Switching Power DC
    3 W
    Maximum Switching Current AC
    0.25 A
    Maximum Switching Current DC
    0.25 A
    Maximum Switching Voltage DC
    175V dc
    Coil Voltage
    5V dc
