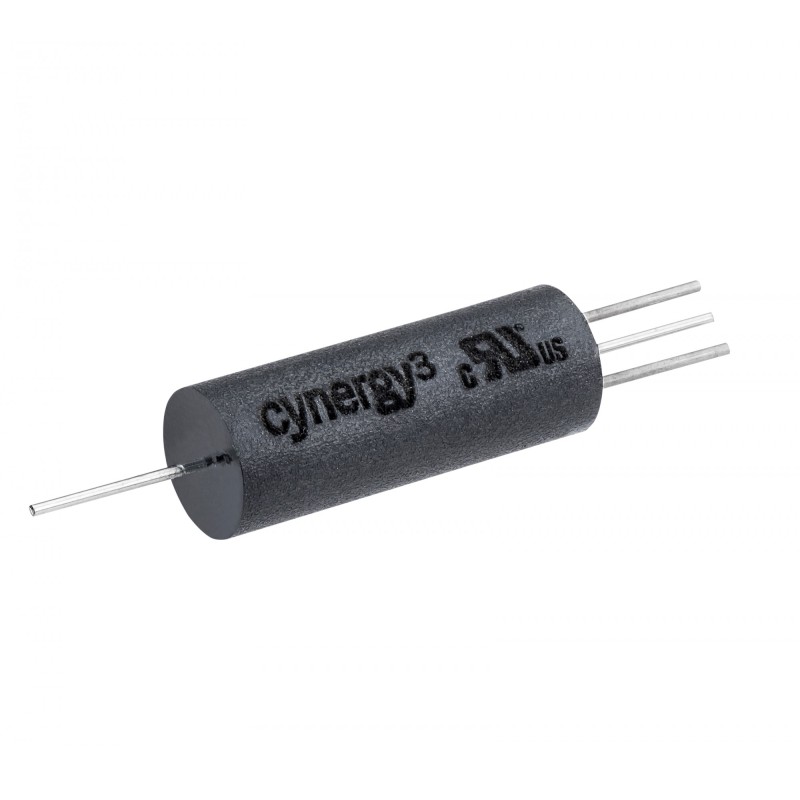

    1 pcs - Sensata / Cynergy3 PCB Mount Reed Relay, 12V dc Coil, SPST, 350V Max, 1 A Max, 1000Ω
    • 1 pcs - Sensata / Cynergy3 PCB Mount Reed Relay, 12V dc Coil, SPST, 350V Max, 1 A Max, 1000Ω

    1 pcs - Sensata / Cynergy3 PCB Mount Reed Relay, 12V dc Coil, SPST, 350V Max, 1 A Max, 1000Ω

    Allparts-UK/15/R/124-5127
    £54.55
    Delivery: 4-7 business days
    Quantity
    11 Items

    Product Details
    SENSATA / CYNERGY3
    Allparts-UK/15/R/124-5127
    S2-12EU/RS
    11 Items

    Data sheet

    Manufacturer
    SENSATA / CYNERGY3
    Dimensions
    7.62 (Dia.) x 22.86mm
    Length
    22.86mm
    Contact material
    Rhodium
    Depth
    7.62 (Dia.)mm
    Number of poles
    1
    A-Supplier
    Allparts-UK-R
    Terminal Type
    Axial
    Maximum Operating Temperature
    +85°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -40°C
    Standards Met
    cULus Recognised, UL Approved
    Contact Configuration
    SPST
    Life
    10000000 (Resistive Load) operations, 1000000000 (Dry) operations
    Coil Resistance
    1000Ω
    Maximum Switching Power AC
    100VA
    Isolation Coil To Contact
    1kV dc
    Maximum Switching Voltage AC
    300V
    Special Features
    Variable mΩunting Options
    Operating Temperature Range
    -40 - +85°C
    Relay Switching Classification
    General Purpose Relay
    Maximum Switching Current AC
    1 A
    Maximum Switching Current DC
    1 A
    Maximum Switching Voltage DC
    350V
    Coil Voltage
    12V dc
