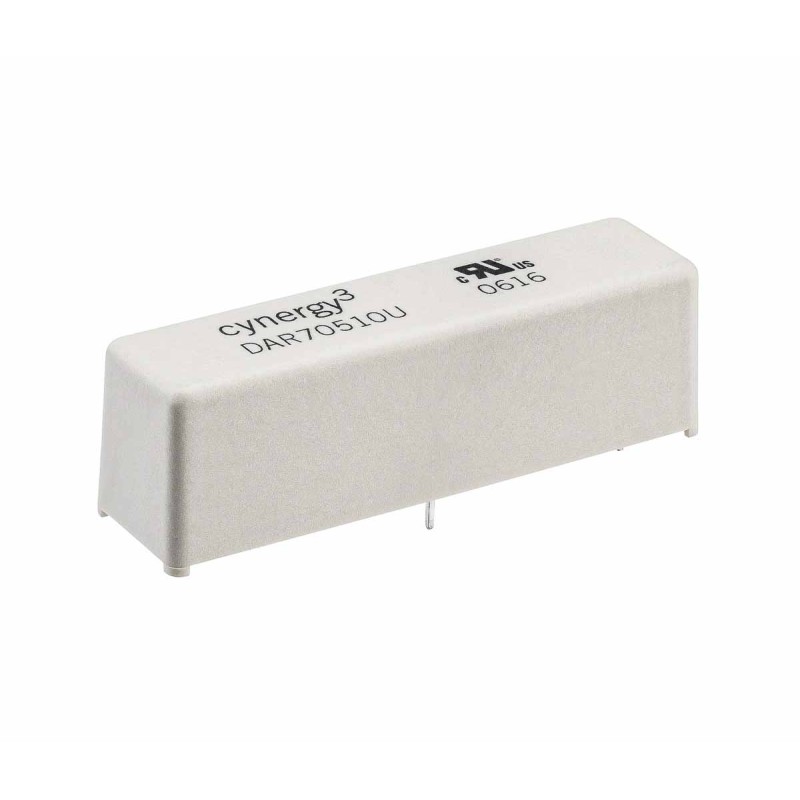

    1 Box of 20 - Sensata / Cynergy3 PCB Mount Reed Relay, 24V dc Coil, SPST, 7000V Max, 2 A Max, 780Ω
    • 1 Box of 20 - Sensata / Cynergy3 PCB Mount Reed Relay, 24V dc Coil, SPST, 7000V Max, 2 A Max, 780Ω
    • 1 Box of 20 - Sensata / Cynergy3 PCB Mount Reed Relay, 24V dc Coil, SPST, 7000V Max, 2 A Max, 780Ω

    1 Box of 20 - Sensata / Cynergy3 PCB Mount Reed Relay, 24V dc Coil, SPST, 7000V Max, 2 A Max, 780Ω

    Allparts-UK/15/R/189-2161
    £1,314.64
    Delivery: 4-7 business days
    Quantity
    Last items in stock
    1 Item

    Product Details
    SENSATA / CYNERGY3
    Allparts-UK/15/R/189-2161
    DAT72405U
    1 Item

    Data sheet

    Manufacturer
    SENSATA / CYNERGY3
    Dimensions
    60 x 15.8 x 18.5mm
    Height
    18.5mm
    Length
    60mm
    Contact material
    Tungsten
    Depth
    15.8mm
    Number of poles
    1
    A-Supplier
    Allparts-UK-R
    Terminal Type
    PCB Pin
    Maximum Operating Temperature
    +70°C
    Mounting Type
    PCB Mount
    Minimum Operating Temperature
    -20°C
    Contact Configuration
    SPST
    Life
    10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
    Coil Resistance
    780Ω
    Isolation Coil To Contact
    17kV
    Maximum Switching Voltage AC
    7000V
    Special Features
    7.5kV or 5kV Isolation, Choice of 10kV, Excellent AC Characteristics, Low Contact Resistance, PCB or Panel mΩunt
    Operating Temperature Range
    -20 - +70°C
    Relay Switching Classification
    General Purpose Relay
    Maximum Switching Power DC
    50 W
    Maximum Switching Current AC
    2 A
    Maximum Switching Current DC
    2 A
    Maximum Switching Voltage DC
    7000V
    Coil Voltage
    24V dc
    Electrical Life
    10^6 (50W Switching) cycles, 10^9 (Dry Switching) cycles
