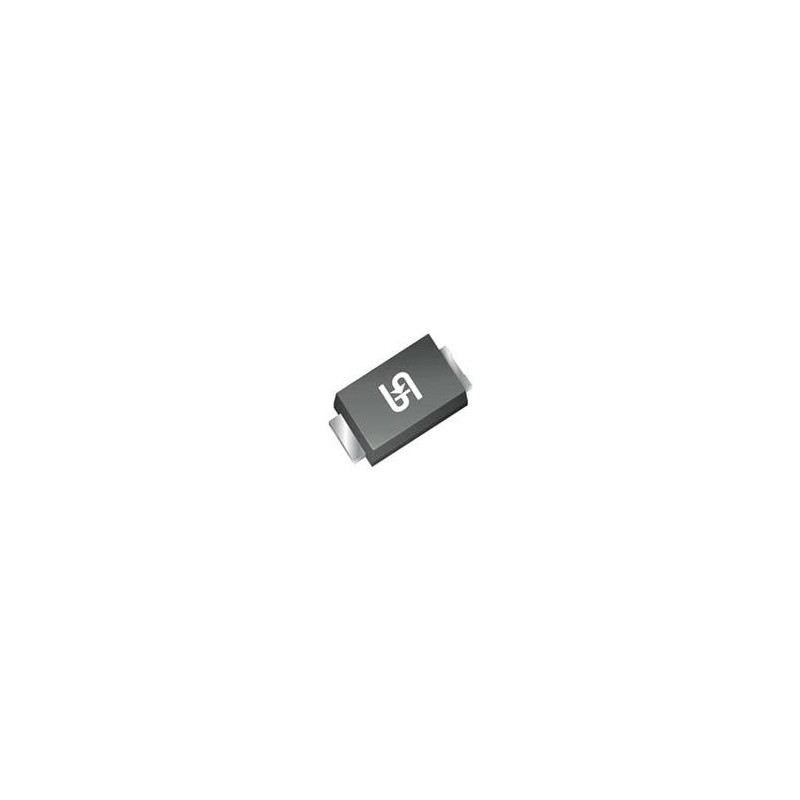

    10 pcs : TSD3JALH - Rectifiers 3A, 600V, Standard Recovery Rectifier
    • 10 pcs : TSD3JALH - Rectifiers 3A, 600V, Standard Recovery Rectifier

    10 pcs : TSD3JALH - Rectifiers 3A, 600V, Standard Recovery Rectifier

    10electronicpartsUK821TSD3JALH
    10 pcs : TSD3JALH - Rectifiers 3A, 600V, Standard Recovery Rectifier
    £23.64
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    TSD 400V to 600V ESD Capability Rectifiers Taiwan Semiconductor TSD 400V to 600V ESD Capability Rectifiers deliver high ESD capability and low forward voltage drop with a glass passivated chip junction. The TSD rectifiers are ideal for automated placement. With operation up to +175°, the TSD components offer a 0.72V to 0.96V typical forward voltage range and a 1A to 3A forward current range. Applications include general-purpose and polarity protection.
    Product Details
    TAIWAN SEMICONDUCTOR
    10electronicpartsUK821TSD3JALH
    TSD3JALH
    10 Items

    Data sheet

    Manufacturer
    TAIWAN SEMICONDUCTOR
    Width
    6.22 mm
    Height
    2.39 mm
    Length
    6.73 mm
    Series
    FFD10UP20S
    Maximum Operating Temperature
    + 175 C
    Minimum Operating Temperature
    - 65 C
    Mounting Style
    SMD/SMT
    Product Type
    Rectifiers
    Package/Case
    DPAK-3 (TO-252-3)
    Product Category
    Rectifiers
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    onsemi / Fairchild
    Factory Pack Quantity Factory Pack Quantity
    2500
    Subcategory
    Diodes & Rectifiers
    Unit Weight
    260.370 mg
    REACH - SVHC
    Details
    Pd - Power Dissipation
    -
    Vr - Reverse Voltage
    200 V
    If - Forward Current
    10 A
    Vf - Forward Voltage
    1.15 V
    Max Surge Current
    100 A
    Ir - Reverse Current
    100 uA
    Recovery Time
    20.8 ns
