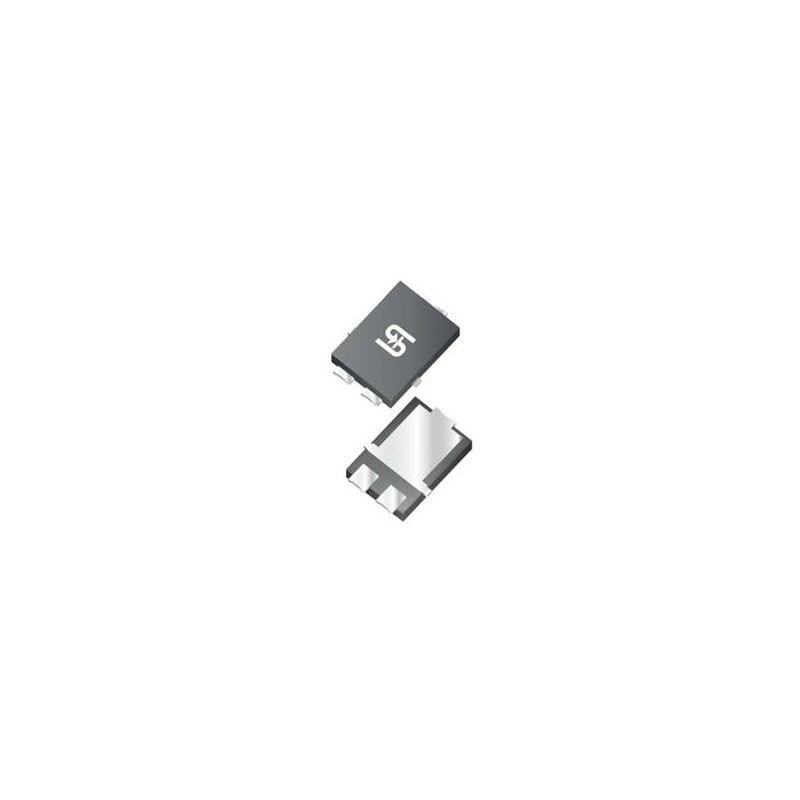

10 pcs : PUUP6BH - Rectifiers 25ns, 6A, 100V, Ultra Fast Recovery Rectifier
    • 10 pcs : PUUP6BH - Rectifiers 25ns, 6A, 100V, Ultra Fast Recovery Rectifier

    10 pcs : PUUP6BH - Rectifiers 25ns, 6A, 100V, Ultra Fast Recovery Rectifier

    10AllpartsUK821PUUP6BH
    10 pcs : PUUP6BH - Rectifiers 25ns, 6A, 100V, Ultra Fast Recovery Rectifier
    £38.52
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    PUUPx Series Ultra Fast Recovery Rectifiers Taiwan Semiconductor PUUPx Series Ultra Fast Recovery Rectifiers are AEC-Q101 qualified planar technology rectifiers with a reverse recovery time of 25ns. The PUUPx Rectifiers are available in 100V and 200V voltage ratings, with a forward current range from 3A to 6A. These planar devices offer low power loss and high efficiency in a low-profile TO-277A package with wettable flanks, ideal for automated placement. The package also features wettable flanks, enabling automated optical inspection and increasing reliability.
    Product Details
    10AllpartsUK821PUUP6BH
    PUUP6BH
    10 Items

    Data sheet

    Manufacturer
    TAIWAN SEMICONDUCTOR
    Width
    3.81 mm
    Height
    2.44 mm
    Length
    5.59 mm
    Maximum Operating Temperature
    + 175 C
    Minimum Operating Temperature
    - 65 C
    Mounting Style
    SMD/SMT
    Product Type
    Rectifiers
    Termination Style
    SMD/SMT
    Package/Case
    SMB
    Product Category
    Rectifiers
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Central Semiconductor
    Factory Pack Quantity Factory Pack Quantity
    3000
    Subcategory
    Diodes & Rectifiers
    Unit Weight
    93 mg
    Pd - Power Dissipation
    -
    Vr - Reverse Voltage
    1 kV
    If - Forward Current
    1 A
    Vf - Forward Voltage
    1.7 V
    Max Surge Current
    30 A
    Ir - Reverse Current
    5 uA
    Recovery Time
    100 ns
