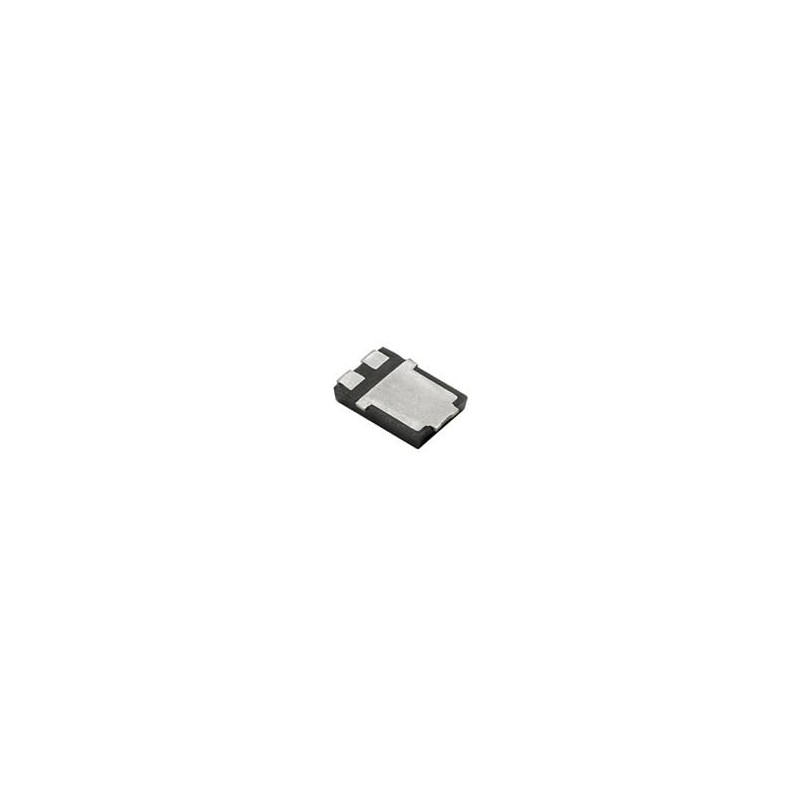

10 pcs : VS-4ESH01HM3/86A - Rectifiers Hypfst Rct 4A 100V AEC-Q101
    • 10 pcs : VS-4ESH01HM3/86A - Rectifiers Hypfst Rct 4A 100V AEC-Q101

    10 pcs : VS-4ESH01HM3/86A - Rectifiers Hypfst Rct 4A 100V AEC-Q101

    10AllpartsUK78VS4ESH01HM386A
    10 pcs : VS-4ESH01HM3/86A - Rectifiers Hypfst Rct 4A 100V AEC-Q101
    £27.38
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    eSMP SMPC Fast Recovery Rectifiers Vishay eSMP® SMPC Fast Recovery Rectifiers are designed for use in general-purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, automotive, and telecommunication applications. These rectifiers feature low forward voltage drops, low current leakage, and high forward surge capability. The devices are offered in a single- or dual-chip, surface-mount, TO-277A package. The compact 4.8mm x 6.7mm footprint and low 1.1mm profile (typical) of the TO-277A package enable high current density power supply designs. Vishay eSMP SMPC Fast Recovery Rectifiers are available in standard and AEC-Q101-qualified versions.
    Product Details
    10AllpartsUK78VS4ESH01HM386A
    VS-4ESH01HM3/86A
    10 Items

    Data sheet

    Manufacturer
    Vishay Semiconductors
    Maximum Operating Temperature
    + 175 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Product Type
    Rectifiers
    Package/Case
    Thin DPAK-2
    Product Category
    Rectifiers
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Taiwan Semiconductor
    Factory Pack Quantity Factory Pack Quantity
    4500
    Subcategory
    Diodes & Rectifiers
    Unit Weight
    194 mg
    Qualification
    AEC-Q101
    REACH - SVHC
    Details
    Vr - Reverse Voltage
    200 V
    If - Forward Current
    10 A
    Vf - Forward Voltage
    880 mV
    Max Surge Current
    130 A
    Ir - Reverse Current
    2 uA
    Recovery Time
    20 ns
