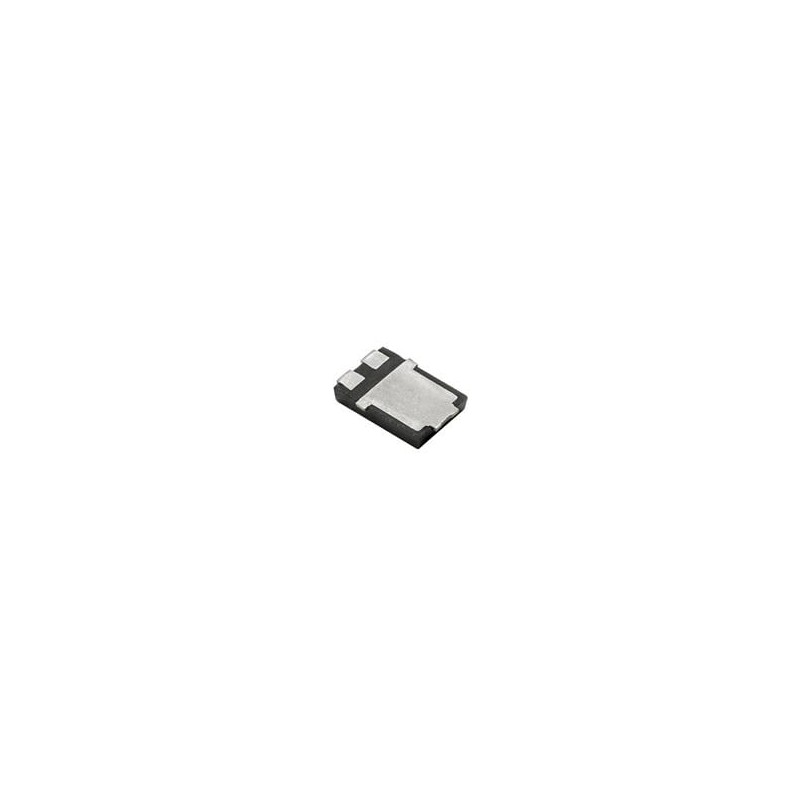

10 pcs : VS-4CSH01HM3/87A - Rectifiers Hypfst Rct 2x2A 100V AEC-Q101
    • 10 pcs : VS-4CSH01HM3/87A - Rectifiers Hypfst Rct 2x2A 100V AEC-Q101

    10 pcs : VS-4CSH01HM3/87A - Rectifiers Hypfst Rct 2x2A 100V AEC-Q101

    10electronicpartsUK78VS4CSH01HM387A
    10 pcs : VS-4CSH01HM3/87A - Rectifiers Hypfst Rct 2x2A 100V AEC-Q101
    £27.64
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    eSMP SMPC Fast Recovery Rectifiers Vishay eSMP® SMPC Fast Recovery Rectifiers are designed for use in general-purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, automotive, and telecommunication applications. These rectifiers feature low forward voltage drops, low current leakage, and high forward surge capability. The devices are offered in a single- or dual-chip, surface-mount, TO-277A package. The compact 4.8mm x 6.7mm footprint and low 1.1mm profile (typical) of the TO-277A package enable high current density power supply designs. Vishay eSMP SMPC Fast Recovery Rectifiers are available in standard and AEC-Q101-qualified versions.
    Product Details
    10electronicpartsUK78VS4CSH01HM387A
    VS-4CSH01HM3/87A
    10 Items

    Data sheet

    Manufacturer
    Vishay Semiconductors
    Series
    BAT15
    Maximum Operating Temperature
    + 150 C
    Minimum Operating Temperature
    - 55 C
    Mounting Style
    SMD/SMT
    Product Type
    Schottky Diodes & Rectifiers
    Product Category
    Schottky Diodes & Rectifiers
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Infineon Technologies
    Factory Pack Quantity Factory Pack Quantity
    15000
    Subcategory
    Diodes & Rectifiers
    Unit Weight
    0.510 mg
    Part # Aliases
    BAT 15-02LRH E6327 SP000055124
    Pd - Power Dissipation
    100 W
    Vr - Reverse Voltage
    4 V
    If - Forward Current
    110 mA
    Vf - Forward Voltage
    320 mV
    Ir - Reverse Current
    5 uA
