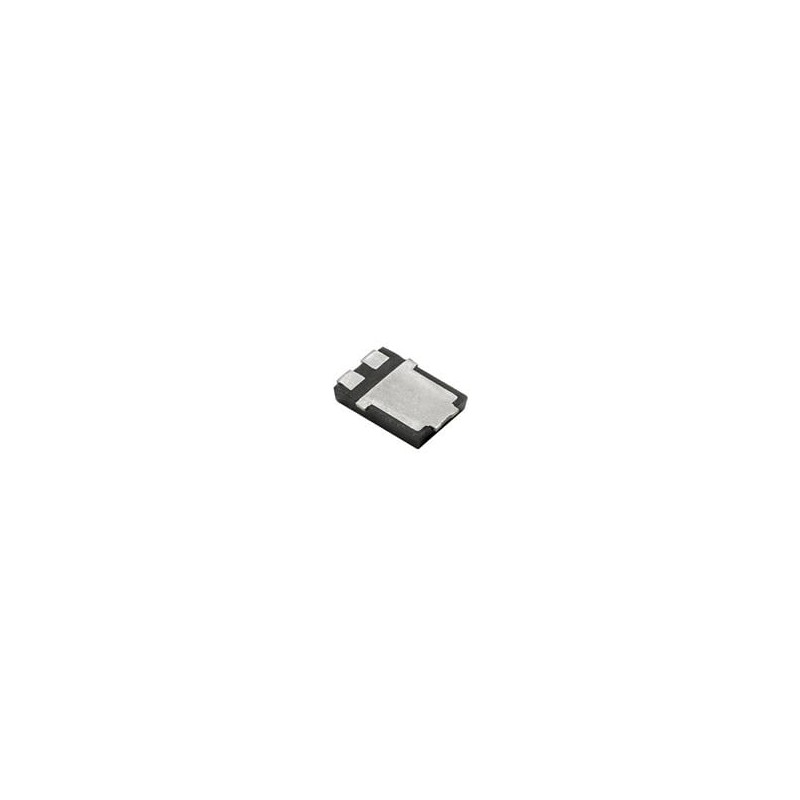

    1 pcs : S4PK-M3/86A - Rectifiers 4.0 Amp 800 Volt
    • 1 pcs : S4PK-M3/86A - Rectifiers 4.0 Amp 800 Volt

    1 pcs : S4PK-M3/86A - Rectifiers 4.0 Amp 800 Volt

    electronicparts-UK/M/625-S4PK-M3
    £9.50
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    eSMP SMPC Fast Recovery Rectifiers Vishay eSMP® SMPC Fast Recovery Rectifiers are designed for use in general-purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, automotive, and telecommunication applications. These rectifiers feature low forward voltage drops, low current leakage, and high forward surge capability. The devices are offered in a single- or dual-chip, surface-mount, TO-277A package. The compact 4.8mm x 6.7mm footprint and low 1.1mm profile (typical) of the TO-277A package enable high current density power supply designs. Vishay eSMP SMPC Fast Recovery Rectifiers are available in standard and AEC-Q101-qualified versions.
    Product Details
    Vishay General Semiconductor
    electronicparts-UK/M/625-S4PK-M3
    S4PK-M3/86A
    10 Items

    Data sheet

    Manufacturer
    Vishay General Semiconductor
    Width
    6.15 mm
    Height
    1.2 mm
    Length
    4.35 mm
    Series
    S4Px
    Maximum Operating Temperature
    + 150 C
    Minimum Operating Temperature
    - 55 C
    Mounting Style
    SMD/SMT
    Product Type
    Rectifiers
    Package/Case
    TO-277A-3
    Product Category
    Rectifiers
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Vishay General Semiconductor
    Factory Pack Quantity Factory Pack Quantity
    1500
    Subcategory
    Diodes & Rectifiers
    Tradename
    eSMP
    Unit Weight
    100 mg
    REACH - SVHC
    Details
    Vr - Reverse Voltage
    800 V
    If - Forward Current
    4 A
    Vf - Forward Voltage
    1.1 V
    Max Surge Current
    100 A
    Ir - Reverse Current
    10 uA
    Recovery Time
    2.5 us
