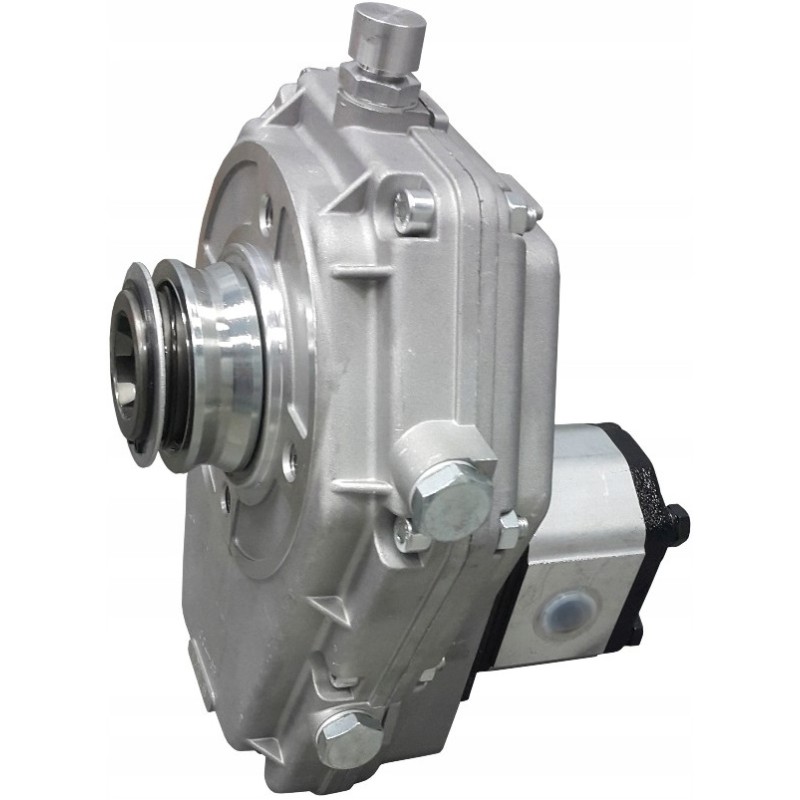

PTO multiplier 60004 6 gr2 pump 12cm3 18l

MULTIPLICATOR WITH HYDRAULIC PUMP SKRAW-MET CODE: [7006] MULTIPLICATOR TRANSMISSION 1:3.8

TYPE 60004-6 WITH A SOCKET FITTING THE TRACTOR'S PTO SHAFT

GROUP 2 GEAR HYDRAULIC PUMP 12 cm3/rev 18 L

COUPLING SPLIT BED

MULTIPLICATOR GEAR WITH RATIO 1:3.8 gr 2 SKRAW-MET CODE: [0198] TYPE 60004-6 (small) Power take-off shaft gear with a 1 3/8' 6-piece profiled sleeve. The gearbox is supplied with a clutch sleeve (group 2), but without oil.

Perfect for driving hydraulic pumps in forestry and construction machines and many tractors, including C-330, C-360, C-385, ZETOR, MF and others with a PTO output.

The gearbox is mounted on the 1.3/8' DIN9611 PTO shaft using a latch, this solution means that it can be mounted or removed quite quickly if it turns out that we need a PTO shaft to connect the PTO shaft from another machine .

The gearbox is ideal for driving hydraulic pumps of group 2 (20) with a European type flange.

Technical data of the gearbox: Gear ratio: 1:3.8

Pump shaft type: conical 1:8

Maximum power consumption (kW) : 10

Number of revolutions max. (rpm):

Input: 540

Output: 2052

Torque (da Nm):

Input: 15.9

Output: 4.2

Material:

body - aluminum

gear wheels - steel

Requires filling with gear oil.

Recommended oil: SAE 90

Equipped with a sight glass to check the gear oil level.

When using for the first time, to increase the life of the gear, it is recommended to change the oil after the first 50 operating hours.

We have it in other auctions pumps matching this gearbox. GROUP 2 GEAR HYDRAULIC PUMP 12 cm3/rev. CUTTING-MET CODE: [1172] RIGHT SPEED

Hydraulic gear pump ALHP2-B0-X-12 Capacity 12 cm3/rev. Can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others

Our elements are characterized by high quality of the material from which they are made. We recommend purchasing better parts that will extend the life of the device and reduce the risk of damage and uncontrolled stops.

Technical Specification: direction of rotation: right

Speed range: 500 - 3000 (rpm)

Internal threads in the body: Discharge 1/2'

Suction 3/4'

Pressure in continuous operation: 270 bar

Pressure in instantaneous operation: 300 bar

Features and advantages: Gear pumps made of aluminum alloy with cast iron body and rear covers.

High volumetric efficiency thanks to innovative design and accurate tolerance control machining.

Axial compensation is achieved by movable bushings which enable high volumetric efficiency over the entire pressure range.

DU bearing ensures high pressure.

Two-piece integral one-piece gear and shaft.

Double shaft seals.

Nitrile seals and Viton seals as standard at high temperatures.

Available with flanges, shafts and ports for major European, German and SAE standards.

Available with multiple rear covers with built-in valves.

Extremely compact 2.5PB/2.5PB reusable pump design.

Mount on a multi-stage pump also available in combination with types 2PE and 1.5PB.

All pumps are tested after installation and run-in to ensure a high standard.
